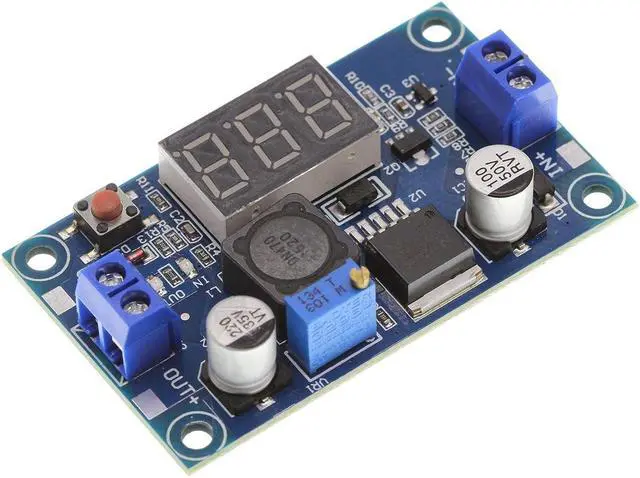

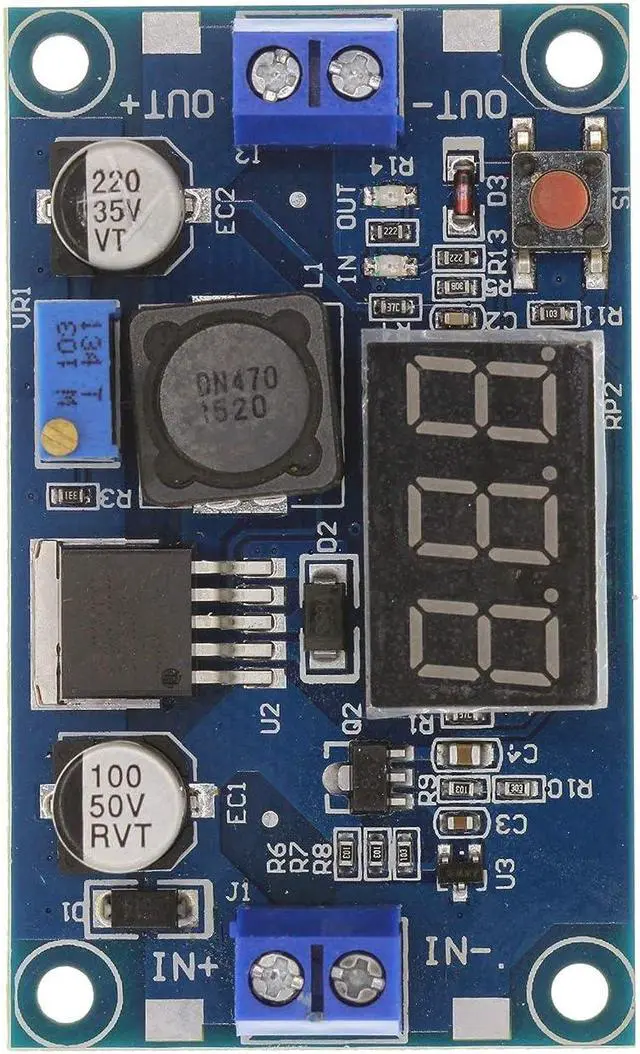

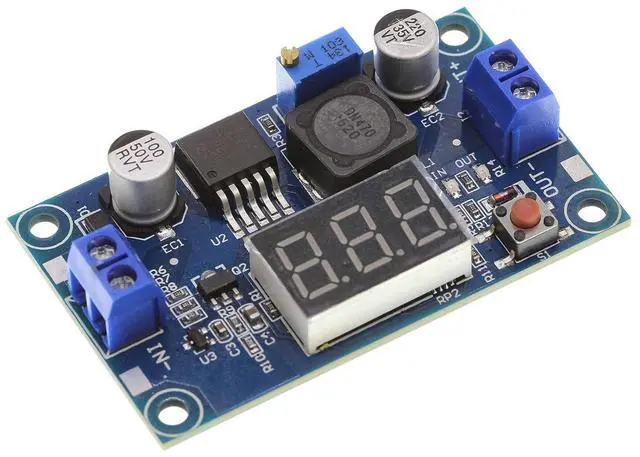

2PCS LM2596 DC DC Step Down Converter Voltage Regulator LED Display Voltmeter 4.0-40V to 1.3-37V Buck Adapter Adjustable Power Supply
- LM2596 Buck Converter + Voltmeter Input Voltage: DC 4.0~40V ; Output Voltage: 1.25V~37V; Output Current: 2A(normal and stable), 3A Max Measure Range:4~40V (for measure accurately, please ensure that the input voltage is more than 4V) Ripple Frequency: About 150Khz; Ripple Peak: About 100mV; Voltage Meter Error: ±0.1V PCB Size: 66mm x 35mm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
LM2596 Buck Converter + Voltmeter
Input Voltage: DC 4.0 ~40V;
Output Voltage: 1.25V ~37V;
Output Current: 2A (normal and stable), 3A
Max Measure Range: 4~40V (for measure accurately, please ensure that the input voltage is more than 4V)
Ripple Frequency: About 150Khz;
Ripple Peak: About 100mV;
Voltage Meter Error: ± 0.1V

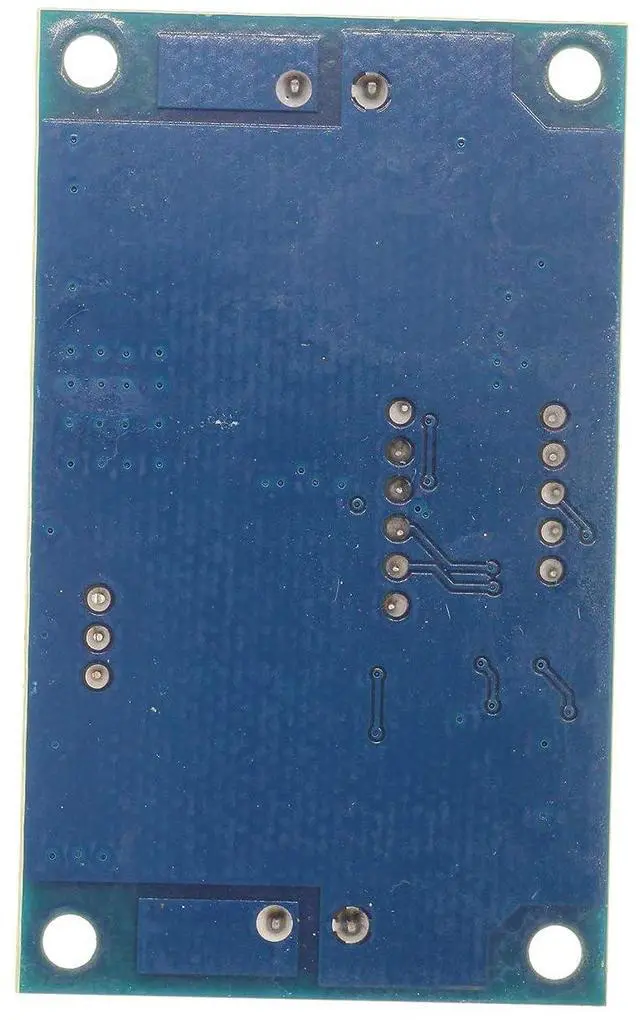

PCB Size: 66mm x 35mm
Input Voltage: DC 4.0 ~40V;
Output Voltage: 1.25V ~37V;
Output Current: 2A (normal and stable), 3A
Max Measure Range: 4~40V (for measure accurately, please ensure that the input voltage is more than 4V)
Ripple Frequency: About 150Khz;
Ripple Peak: About 100mV;
Voltage Meter Error: ± 0.1V
PCB Size: 66mm x 35mm
