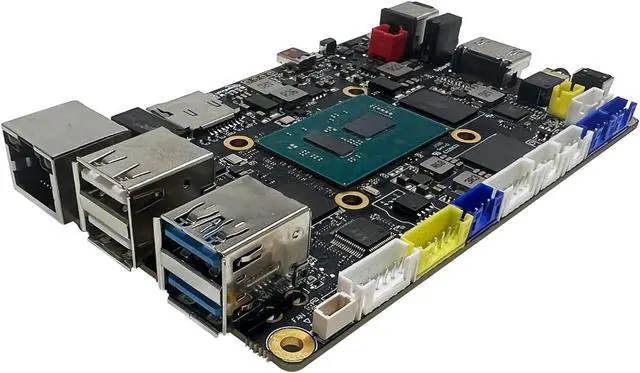

WayPonDEV youyeetoo X1 X86 Single Board Computer - A 64bit Windows 10/11/Linux Mini PC with Celeron N5105 CPU, Support Optional WiFi&BT NFC, PCIE 3.0 M.2 2280 NVMe or SATA SSD (4GB RAM+64GB Storage)
- [Kind Reminder] youyeetoo X1 x86 SBC is currently in a sufficient inventory supply. You can choose from optional system Memory 4GB/8GB/16GB LPDDR4 RAM, Optional eMMC flash with 64GB/128GB/256GB/SSD capacity(pls check the variant option from different Asin). We could provide customization services including whole machine customization,boot logo, BIOS features, operating system and more.
- [High-Performance X86 Mini PC] youyeetoo X1 is a complete low-cost Windows x86 single board computer with Celeron N5105 11th Gen Jasper Lake processor up to 2.9GHz.You can use this mini computer as a media centre, support 4K video steaming and daily useage. Onboard Gigabit WAN port ,support 24W PoE (802.3AT) power supply (default).Optional 30W / 60W / 72W high power PoE power supply module (customised).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

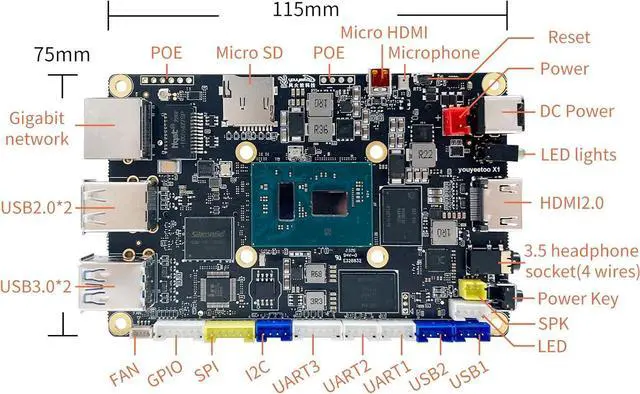

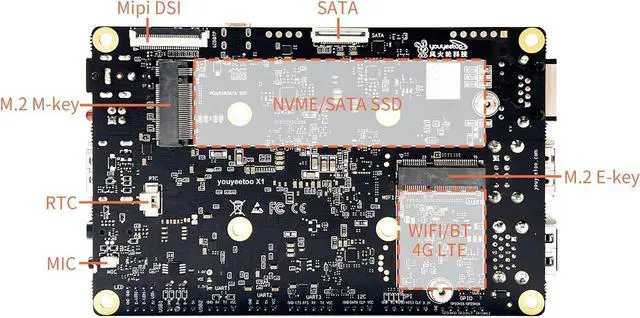

[Expandible Onboard Interfaces] youyeetoo X1 SBC supports Dual 4K and 3-way video output, including full-size HDMI, Micro HDMI, Display interface over MIPI, PCIe 3.0 M. 2 2280 M-key socket for NVMe or SATA SSD, 4-pin I2C header, 5-pin SPI header, 6-pin header with 5x GPIOs;
I/O voltage: 3.3V.
[Pre-insalled Windows OS] youyeetoo X1 x86 single board computer supports Windows 10/11, as well as Ubuntu and Debian Linux distributions with aming to provide sample code for both Windows and Linux for things like GPIOs. It would be pre-installed window OS out of box, plug and play.
[Multiple Wireless Networks] youyeetoo X1 x86 single board computer with M. 2 E key extension. Support WIFI( 2.4G /5G) and Bluetooth dual-band. It adapted WIFI5 and BT 5.0, WIFI6 and BT 5.2. Support 4G LTE Module. Extreme scalability allows you to surf the web wirelessly both indoors and outdoors.
[LAN and PoE Power Support] youyeetoo X1 x86 mini pcs onboard Gigabit WAN port, Support 24W PoE ( 802.3AT ) power supply (default). Optional 60W / 72W high power PoE power supply module (customised). Start with industrial applications to reduce the difficulty of deployment and streamline costs.

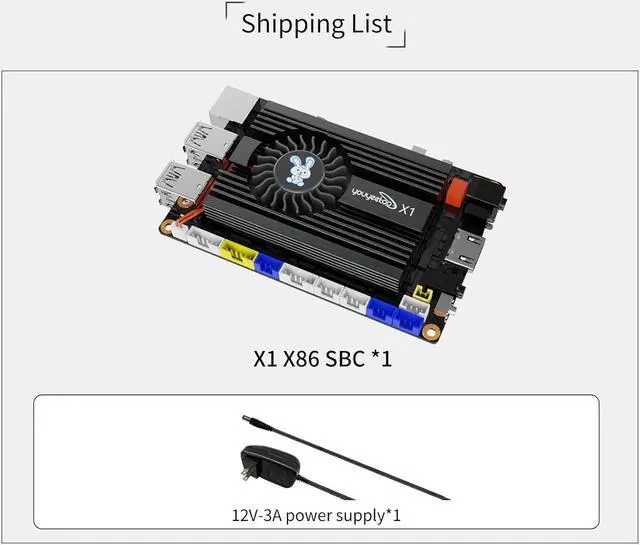

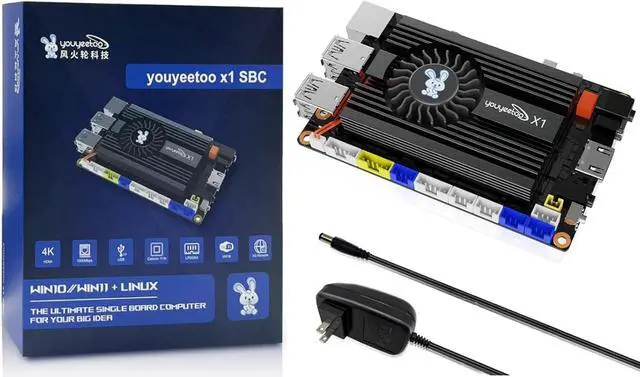

[Packing list] In the box: youyeetoo X1 x86 single board computer*1(RAM/Strorage depend on your order), 12V DC / 3A power supply *1, heat sink *1. If you have Any custimzation requirements or technical support please contact us by wpd#youeetoo. com (#------>@) or post your quesiton on forum#youyeetoo&com/(#------>@, &. )
I/O voltage: 3.3V.
[Pre-insalled Windows OS] youyeetoo X1 x86 single board computer supports Windows 10/11, as well as Ubuntu and Debian Linux distributions with aming to provide sample code for both Windows and Linux for things like GPIOs. It would be pre-installed window OS out of box, plug and play.
[Multiple Wireless Networks] youyeetoo X1 x86 single board computer with M. 2 E key extension. Support WIFI( 2.4G /5G) and Bluetooth dual-band. It adapted WIFI5 and BT 5.0, WIFI6 and BT 5.2. Support 4G LTE Module. Extreme scalability allows you to surf the web wirelessly both indoors and outdoors.
[LAN and PoE Power Support] youyeetoo X1 x86 mini pcs onboard Gigabit WAN port, Support 24W PoE ( 802.3AT ) power supply (default). Optional 60W / 72W high power PoE power supply module (customised). Start with industrial applications to reduce the difficulty of deployment and streamline costs.
[Packing list] In the box: youyeetoo X1 x86 single board computer*1(RAM/Strorage depend on your order), 12V DC / 3A power supply *1, heat sink *1. If you have Any custimzation requirements or technical support please contact us by wpd#youeetoo. com (#------>@) or post your quesiton on forum#youyeetoo&com/(#------>@, &. )
