Open Jaw Clamp Meter 600A DC AC Current Smart Digital Electrical Multimeter Tester, Infrared Thermometer with Rechargeable Battery, Measures VFC Capacitance Diode Amp Continuity Voltage Ohm

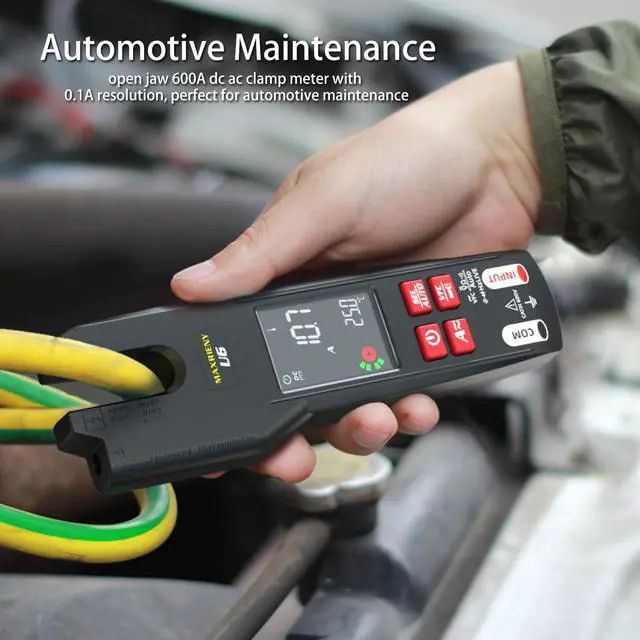

- [DC and AC Current Test]: MAXRIENY U6 electrical tester can not only measure amps in DC, but also measure amps in AC, it can automatically measure DC current and AC current up to 600A with the open jaw.

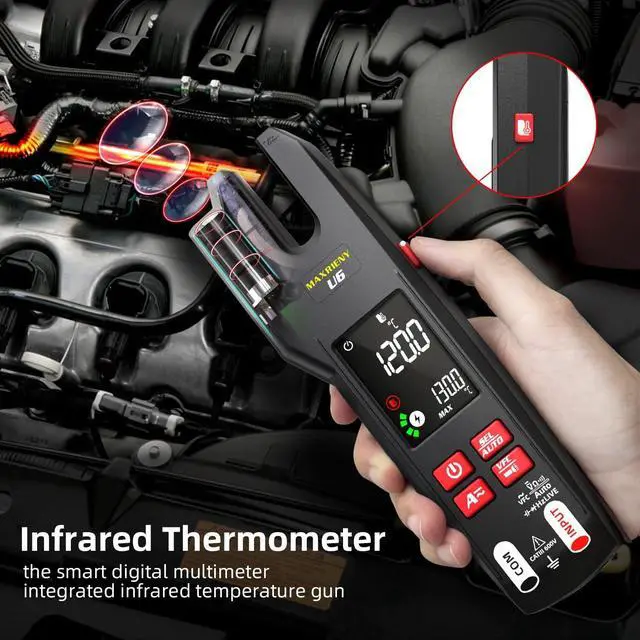

- [Infrared Thermometer]: Thanks to the digital multimeter tester with infrared thermemeter design. Under any function, you could switch to temperature measurement by pressing the button once. For example, when test current or voltage, you could check the heating status of high-voltage terminals, which could judge the wire connection status.
- [Measure Both Current & Voltage]: With our open jaw clamp ammeter, you could test current with the jaw while measuring voltage with the test leads, or test volt with test leads while measuring amp with the jaw, the test results will dual line display on the screen. Very convenience for troubleshooting motors, pumps, or other equipment.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
[VFC Function]: Smart multimeter tester with VFC function, which can measure the output voltage or current of inverters and motors.
[Probe Tips Hoder]: DC AC current clamp ammeter with built-in probe tip holder allows safer, easier measurement and probe storage.
Features:
Color display digital clamp meter
Open jaw deisgn multimeter tester
Electrical tester with smart mode for easy to use
Professional clamp meter with infrared thermometer design
Measure DC and AC current, VFC, capacitance, diode, environmental temperature
Measures AC and DC voltage, resistance, frequency, continuity, v-alert, live wire check
Also can be used as a professional voltage tester with adjustable sensitivity
Auto range, Auto power off, low battery indication with flashlight
Specifications:
MAX Display: 9999 counts
DC current: 1-600A 0.1A ±(2.5%+5 counts)
AC current: 1-600A (AC mode, 40-200 Hz) 0.1A ±(2.5%+5 counts); 1-600A (VFC mode, 40-200 Hz) 0.1A ±(4.0%+5counts)
DC voltage: 0-620V (DC mode) 0.001 V ±(0.8%+3 counts); 0.5-620V (Auto Mode) 0.001 V ±(0.8%+3 counts)
AC voltage: 0-620V (AC mode) 0.001 V ±(1.2%+5 counts); 0.8-620V (Auto Mode) 0.001 V ±(1.2%+5 counts); 0-620 V (VFC mode) 0.1V ±(4.0%+3 counts)
Resistance: 0-10M 0.1 ±(1.2%+3 counts)
Capacitance: 0.5µF-1000µF 0.1µF ±(3.5%+8 counts); 1000µF-10mF 0.1µF ±(4.5%+10 counts) Frequency: 10-1000Hz 1Hz ±(2.0%+10 counts)
Infrared temperature: -20~0/-4-32 0.1/0.1 ±(3.0%+2/); 0~400/32-752 0.1/0.1 ±(2.5%+3/)
Diode: Measure diodes within 2.0V
Continuity: If the resistance is less than 30, the continuity beeper sounds
Temperature: 0-50/32-122 ±2/
V-Alert (non contact voltage detection): Yes
Live wire check: Yes

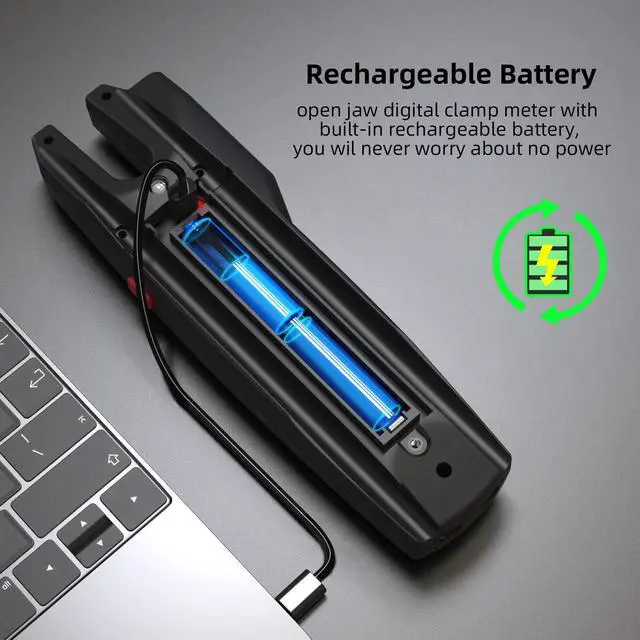

Power: rechargeable battery x 2 (built-in)
Size: 210 x 63.7 x 33 mm
Weight: 216 g
Package Includes:
1 x Smart Clamp Meter
1 x Test Leads
1 x Charging Cable
1 x Carrying Case
1 x Screwdriver
1 x Batteries
1 x User Manual
[Probe Tips Hoder]: DC AC current clamp ammeter with built-in probe tip holder allows safer, easier measurement and probe storage.
Features:
Color display digital clamp meter
Open jaw deisgn multimeter tester
Electrical tester with smart mode for easy to use
Professional clamp meter with infrared thermometer design
Measure DC and AC current, VFC, capacitance, diode, environmental temperature
Measures AC and DC voltage, resistance, frequency, continuity, v-alert, live wire check
Also can be used as a professional voltage tester with adjustable sensitivity
Auto range, Auto power off, low battery indication with flashlight
Specifications:
MAX Display: 9999 counts
DC current: 1-600A 0.1A ±(2.5%+5 counts)
AC current: 1-600A (AC mode, 40-200 Hz) 0.1A ±(2.5%+5 counts); 1-600A (VFC mode, 40-200 Hz) 0.1A ±(4.0%+5counts)
DC voltage: 0-620V (DC mode) 0.001 V ±(0.8%+3 counts); 0.5-620V (Auto Mode) 0.001 V ±(0.8%+3 counts)
AC voltage: 0-620V (AC mode) 0.001 V ±(1.2%+5 counts); 0.8-620V (Auto Mode) 0.001 V ±(1.2%+5 counts); 0-620 V (VFC mode) 0.1V ±(4.0%+3 counts)
Resistance: 0-10M 0.1 ±(1.2%+3 counts)
Capacitance: 0.5µF-1000µF 0.1µF ±(3.5%+8 counts); 1000µF-10mF 0.1µF ±(4.5%+10 counts) Frequency: 10-1000Hz 1Hz ±(2.0%+10 counts)
Infrared temperature: -20~0/-4-32 0.1/0.1 ±(3.0%+2/); 0~400/32-752 0.1/0.1 ±(2.5%+3/)
Diode: Measure diodes within 2.0V
Continuity: If the resistance is less than 30, the continuity beeper sounds
Temperature: 0-50/32-122 ±2/
V-Alert (non contact voltage detection): Yes
Live wire check: Yes
Power: rechargeable battery x 2 (built-in)
Size: 210 x 63.7 x 33 mm
Weight: 216 g
Package Includes:
1 x Smart Clamp Meter
1 x Test Leads
1 x Charging Cable
1 x Carrying Case
1 x Screwdriver
1 x Batteries
1 x User Manual
