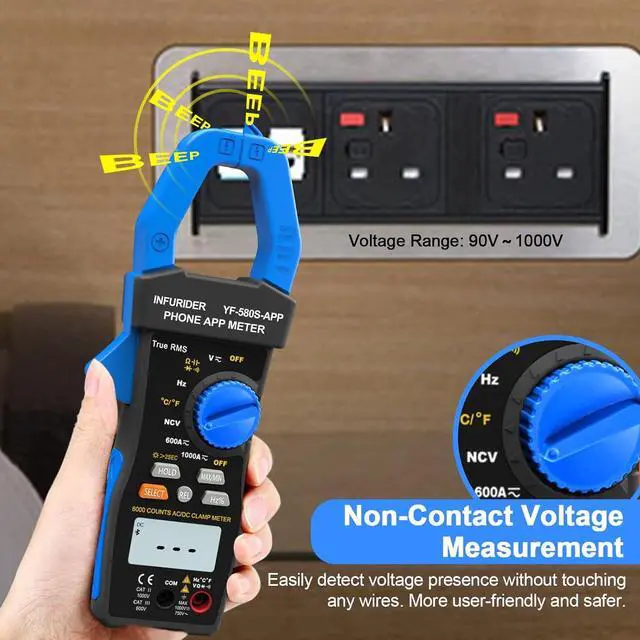

Non-Connect Voltage Tester: This multi-clamp current meter feature NCV function, amp clamp can detect the live AC voltage without directly connecting the test probe with alarm sound. Easy to use for finding live wires buried in walls or to find buried broken wires
Versatile Clamp on Ammeter: Our electrical clamp ammeter with a large LCD backlight screen ensures easy use in dimly lit places. Its also equipped with multiple functions such as low battery indication, data hold, / switchable, REL for zero out the reading before current measurement

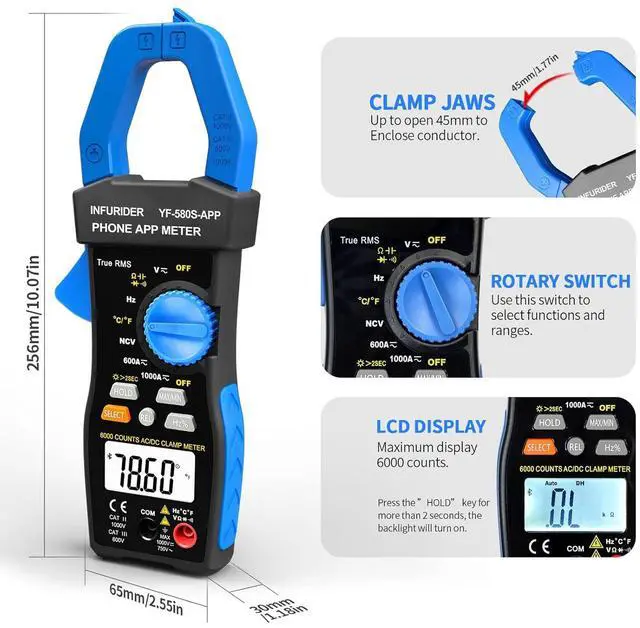

INFURIDER YF-580SAPP Volt Amp Clamp Meter: This clamp amp meter can remotely monitor on your phone. Easily test AC/DC voltage, AC/DC current, capacitance, temperature (/), diode, continuity, Hz and resistance. Feature with relative value 6000 counts auto-ranging function allows you to get a quick and accurate measurement. Come with backlight, data hold, Max/Min/Avg value display, the easy-to-read LCD display, and brightness to give you precise measurements for your recording. Jaw Caliber Size 65mm, easy to use while at work. It will not auto power off to support continuous measuring, and data logging and then export the data in a file or chart on your smartphone or tablet. APP available for download on App Store, Google Play, lifetime support.
Specification:
DC Voltage: 600mV/6V/60V/600V/1000V (+/- 0.5 %+2)
AC Voltage: 6V/60V/600V/750V (+/- 1.0 %+3)
DC Current: 600A (+/- 2.5 % +10); 1000A (+/- 3.0 % +10 )
AC Current: 600A (+/- 2.5 % +10 ); 1000A (+/- 3.0 %+10)
Resistance: 600/6K/60K/600K/6M ohm(+/- 1.0 % +3 ); 60M ohm (+/- 1.5 % +3)
Capacitance: 6nF(+/- 5.0 %+10); 60nF/600nF/6µF(+/- 3.0 %+10); 60µF(+/-5%+10); 600µF/6mF/60mF(+/-10% +20 )

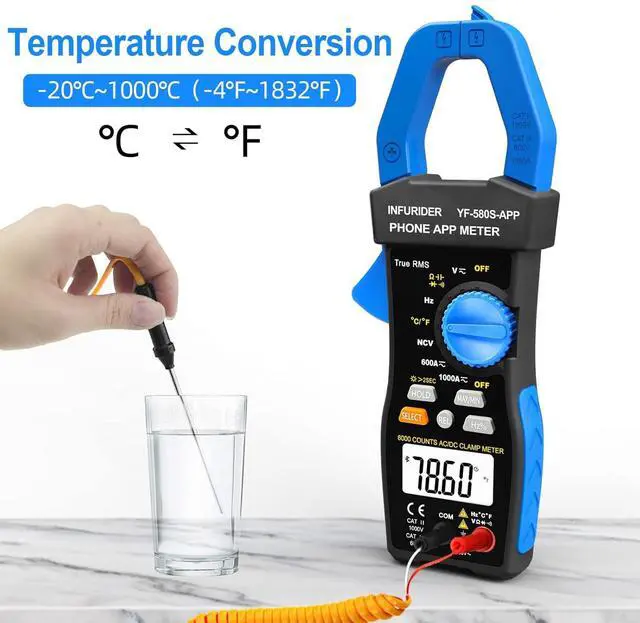

Temperature: -20~1000 /-4-1832(+/-3%)
Frequency: 9.999H z/ 99.99H z/ 999.9H z/ 9.999 kHz/ 99.99 kHz/ 999.9 kHz/ 9.999MH z (+/- 0.1 %+5 digits)
Duty Cycle: 0.1 %~ 99.9 %

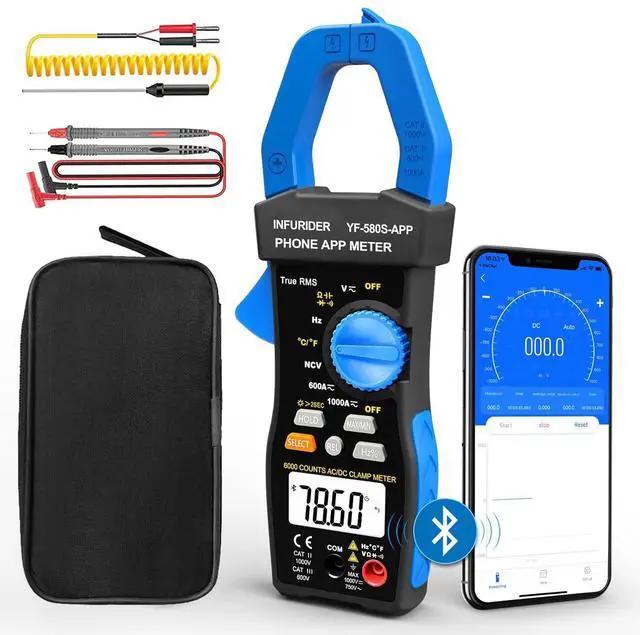

Package Included: 1 * YF-580S-APP Clamp Meter1 * Test Lead1 * temperature probe1 * Carrying Case2 * 1.5V (AA) Batteries1 * Instruction Manual
