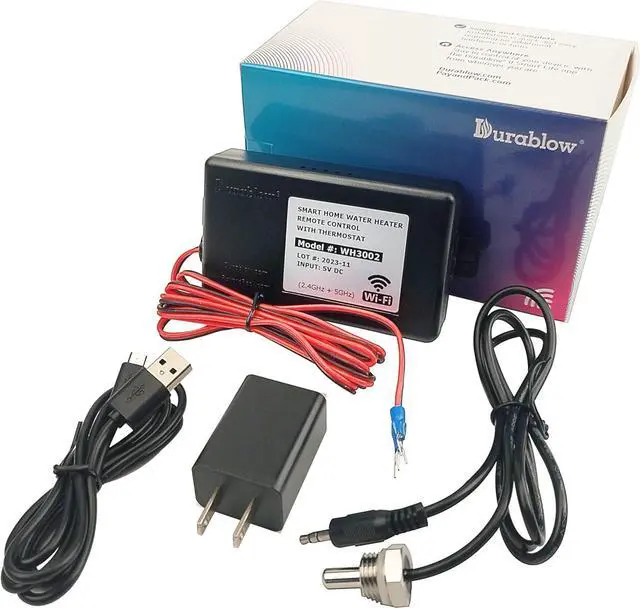

WHAT'S IN BOX: Controller box with ON/OFF signal wire
& connectors (Length: 5'), cUL listed USB power supply adapter (100-240 VAC to 5 VDC), power cord (length 3.2 '), thermostat

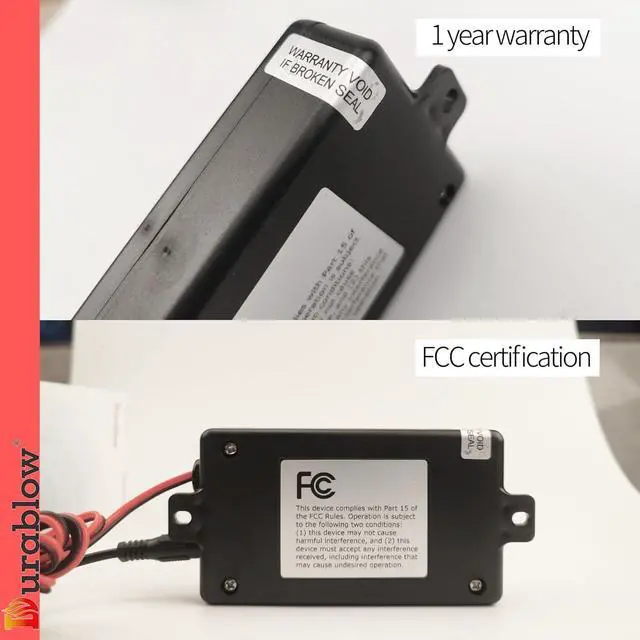

wire with sensor (Length: 3'), User manual. FCC approved devices and parts.
CROSS REFERENCE MODELS: DHT101, DTH101-NP, DTH101-CT, DO-DTH101.

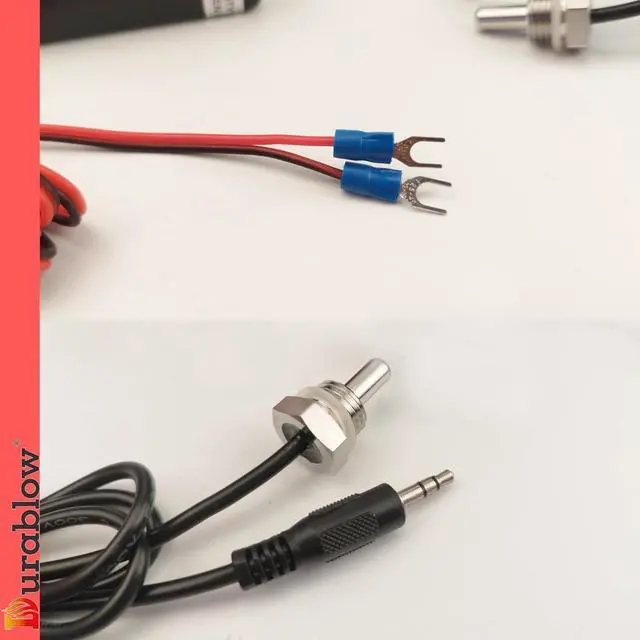

Operating Temperature: 0°C-40°C(32°F-104°F). Compatible with any pool heater that equips Millivolt gas valve. Thermostat sensor wire can be extended with AWG 26/2 cable low voltage.
SINPLE INSTALLATION: Depends on the type of your heater, you should either connect the two wires of this device to the 2 wires or terminals of the heater remote switch (in newer type heaters) or replace the current mechanical thermostat in the circuit with this Wifi thermostat (in older type heaters). Please check the pool heater thermostat before buying the unit.
ATTENTION: For GAS water heater only. This device is NOT a power supply nor an ignitor unit. (No voltage output itself), but it works as a normally open switch that turns On/Off with WiFi.
SMART HOME X SMART-LIFE APP: Built-in dual WiFi ( 2.4 +5G), stronger connection. No hub/gateway required. Use free Smart-Life App to monitor, control, even schedule your gas pool spa water heater from anywhere & anytime! Compatible with Alexa, Google Home, SmartThings, Siri for easy voice control. On/Off + Timer + Thermostat + more Smart Home functions. Share control with families on APP.
EFFICIENCY & ENERGY SAVING: 24/7 Programmable thermostats allow you to set Schedules to optimize comfort and save on gas bills. Set Timer or Thermostat for automatic ON/OFF control. Detachable thermostat (3' wire) for water temperature monitoring and automation. Create automation combinations via Smart-Life App's "create scene" feature.
WHAT'S IN BOX: Controller box with ON/OFF signal wire
& connectors (Length: 5'), cUL listed USB power supply adapter (100-240 VAC to 5 VDC), power cord (length 3.2 '), thermostat
wire with sensor (Length: 3'), User manual. FCC approved devices and parts.
CROSS REFERENCE MODELS: DHT101, DTH101-NP, DTH101-CT, DO-DTH101.
Operating Temperature: 0°C-40°C(32°F-104°F). Compatible with any pool heater that equips Millivolt gas valve. Thermostat sensor wire can be extended with AWG 26/2 cable low voltage.
SINPLE INSTALLATION: Depends on the type of your heater, you should either connect the two wires of this device to the 2 wires or terminals of the heater remote switch (in newer type heaters) or replace the current mechanical thermostat in the circuit with this Wifi thermostat (in older type heaters). Please check the pool heater thermostat before buying the unit.
