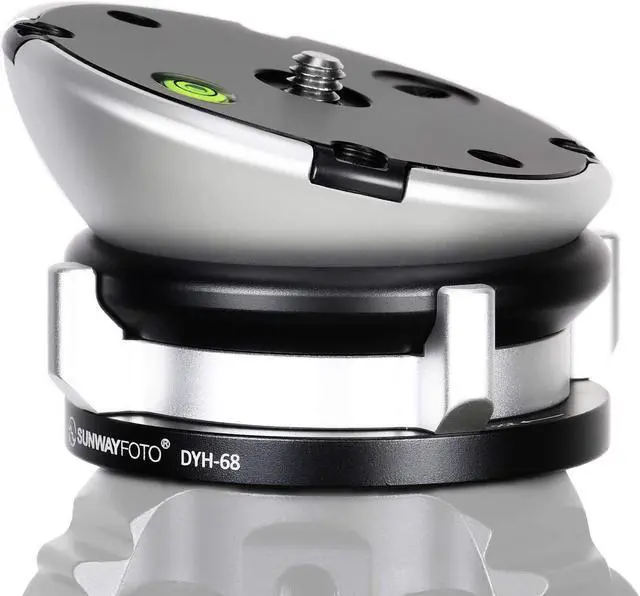

SUNWAYFOTO DYH-68 Leveling Base Tripod Head 22 lbs Load Capacity
- Levelling base DYH-68 is one levelling tool in panoramic system, working with the tripod for landscape shooting to exquisitely level, especially ideal for outdoors shooting on bumpy roads.

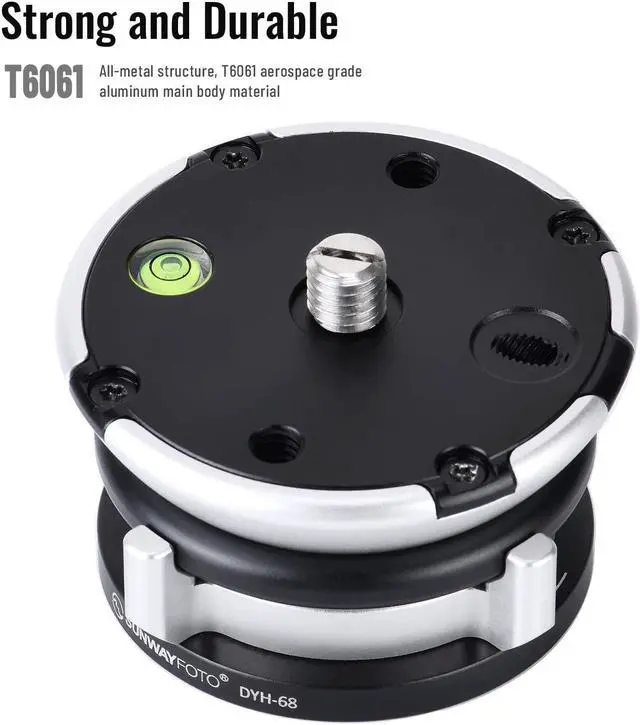

- Strong and durable: All-metal structure, T6061 aero-space grade aluminum main body material, light yet strong, easy to carry; Elaborately CNC machined, hard-anodized finish ensures its resistant to abrasion and corrosion;

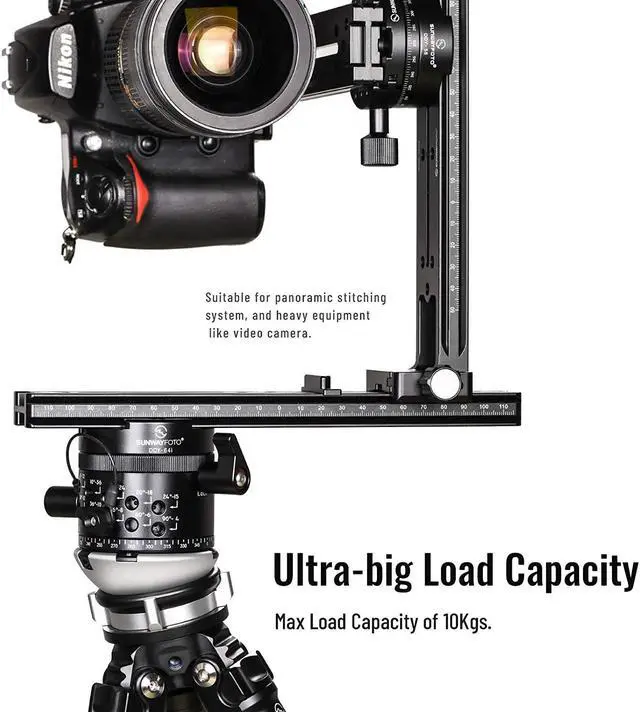

- Ultra-big load capacity: Hemisphere design, maximized contact area with the base for bigger load capacity compared with other ballheads. Suitable for panoramic stitching system, and heavy equipment like video camera. Max load capacity of 10 KG;
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Smooth operation: Exquisitely CNC machined to make sure the base of the hemisphere is perfectly fit with the base, and use professional damping oil for its smooth and easy operation;

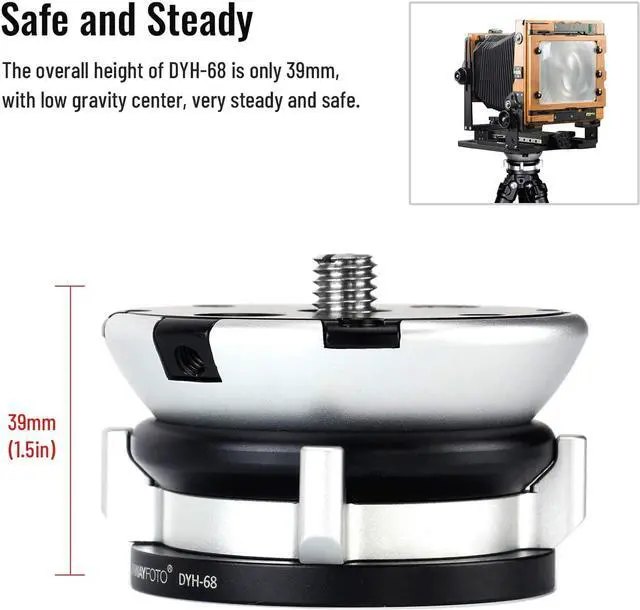

Safe and steady: The overall height of DYH-68 is only 39mm, with low gravity center, very steady and safe. Compatible with equipment of high gravity center, such as 6x6, 6x7 medium format camera or view camera.
Packing List: Leveling Base DYH-68*1, Velvet Bag*1, Bushing TN-1*1, Bushing TN-3*1, Set Screw M5*1, 2.5 mm Wrench*1, Cleaning Cloth*1, User Manual*1
Model: DYH-68
Main body Material: Aluminum T6061
Tilting Range: +/- 15°
Camera Screw Thread: 1/4 Screw Thread
Tripod Mounting Screw Thread: 3/8 Inner Thread
Platform Diameter: 2.7 in. /68mm
Base Diameter: 2.4 in. /60mm
Height: 1.54 in. /39mm
Weight: 7.09 oz/201 G
Max Load Capacity: 22.0 lb. / 10.0K gs.
Safe and steady: The overall height of DYH-68 is only 39mm, with low gravity center, very steady and safe. Compatible with equipment of high gravity center, such as 6x6, 6x7 medium format camera or view camera.
Packing List: Leveling Base DYH-68*1, Velvet Bag*1, Bushing TN-1*1, Bushing TN-3*1, Set Screw M5*1, 2.5 mm Wrench*1, Cleaning Cloth*1, User Manual*1
Model: DYH-68
Main body Material: Aluminum T6061
Tilting Range: +/- 15°
Camera Screw Thread: 1/4 Screw Thread
Tripod Mounting Screw Thread: 3/8 Inner Thread
Platform Diameter: 2.7 in. /68mm
Base Diameter: 2.4 in. /60mm
Height: 1.54 in. /39mm
Weight: 7.09 oz/201 G
Max Load Capacity: 22.0 lb. / 10.0K gs.
