JRready DW5010 Deutsch Connector Kit, 2 3 4 6 8 12 Pin IP68 Waterproof DT Connectors Kit with ACT-M202 Deutsch Crimp Tool for 12-22AWG, Size 16 Solid Contacts 16-20AWG and Pin Removal Tools

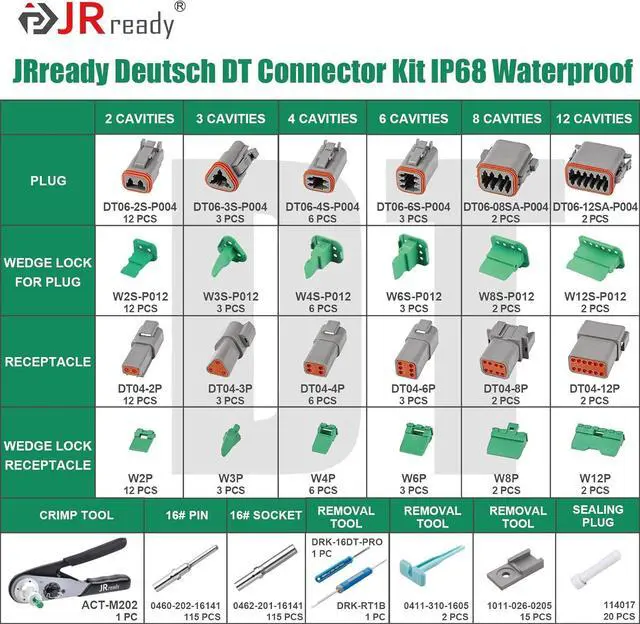

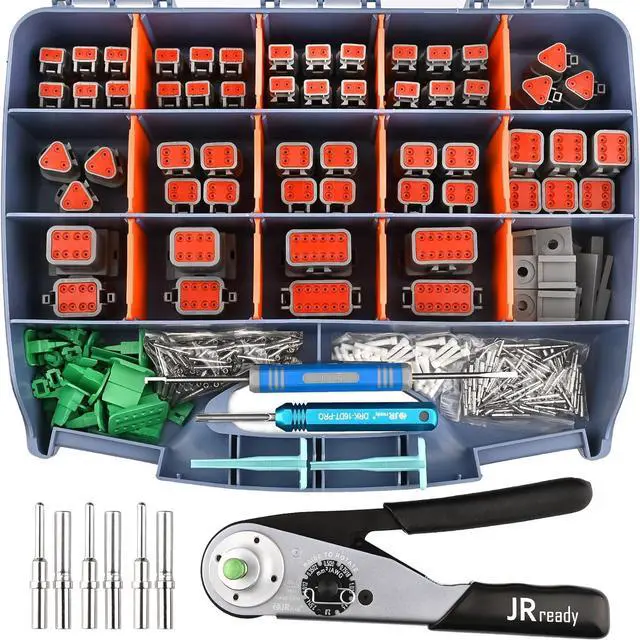

- Deutsch DT Connector Value Kit: This kit includs 6 types of connectors and wedgelocks ranging from 2 to 12 cavities, size 16 pin/socket 16-20AWG, seal plugs, mounting clips, deutsch plastic pin removal tool, DRK-RT1B deutsch connector pin removal tool and ACT-M202 deutsch crimping tool

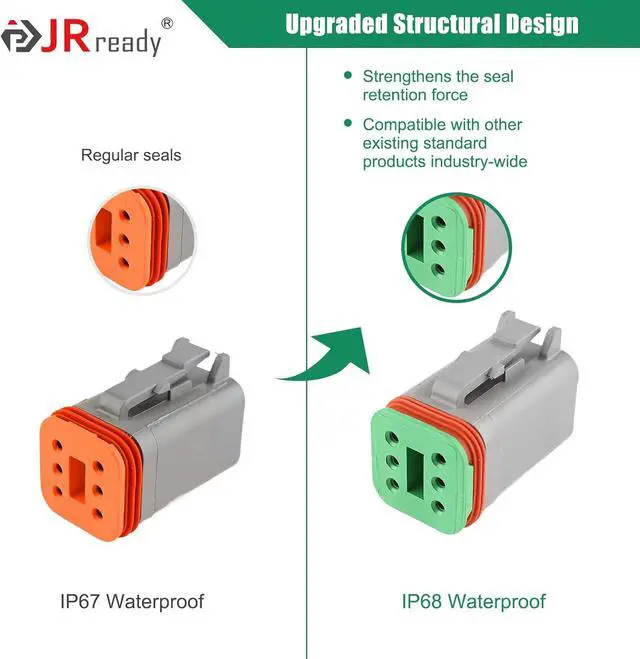

- IP68 Waterproof DT Connectors: JRready DT Series P012 Seal Retention Enhancement Model has a new structural design at the plug end (including receptacle, seal and wedge lock), better sealing and waterproof performance, which strengthens the seal retention force compared to the standard model, makes it not easy to fall off,and compatible with other existing standard products industry-wide
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Professional Crimper with

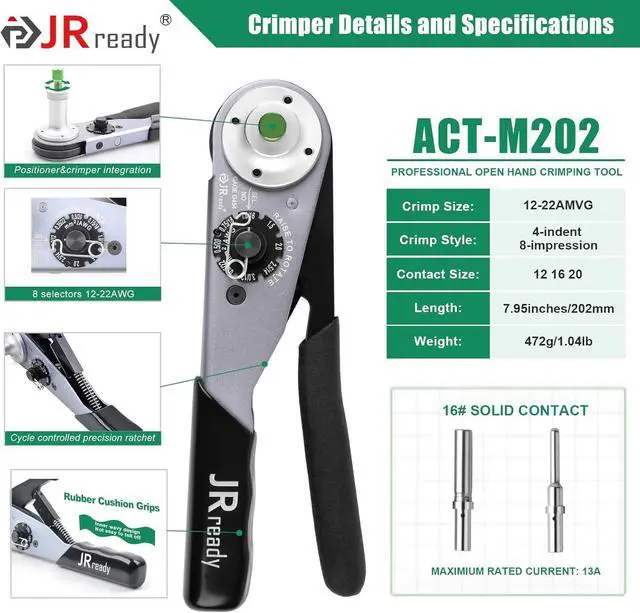

Adjustable Positioner: JRready ACT-M202 4 indent 8 impression crimping, 8 position selector knob allows you to control the crimp depth with ease, smooth precision ratchet ensures the same accurate crimps every time, wire size 12-22AWG. An adjustable positioner fixed in crimper frame, it is used to locate contacts horizontally and vertically between the indenters of the tool to ensure the accuracy and consistency of the crimp position

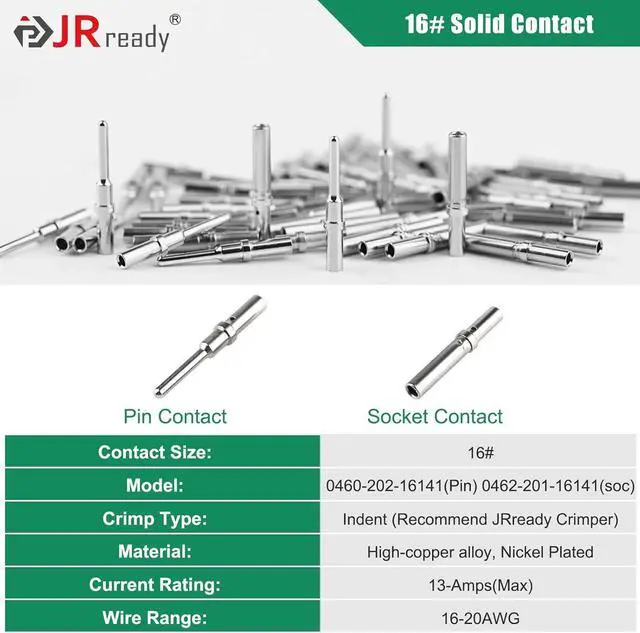

Size 16 Solid Contacts 16-20AWG: Solid terminals have strong stability and conductivity, easy to crimping with wire and installing into connector. The DT Connector kit includes 115 pairs, Male Pins 0460-202-16141/Female Sockets 0462-201-16141. Solid Contacts Wire Gauge 16-20AWG
Widely Applied: JRready DW5010 Deutsch DT connectors with crimper kit include series 2 3 4 6 8 12 pin electrical connector components, widely applied in Construction, Truck, Bus, Off-highway, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational Marine, Motorcycle etc
Deutsch Pin Removal Tools: 2PCS 0411-310-1605 Pin Removal Tool suitable for 16-20 AWG test wire applicationsDRK-RT1B Deutsch Removal Tool Used to remove Deutsch solid and stamped and formed pins and socket contacts from front-release connectors. DRK-16DT-PRO Suitable for 16-20 AWG Wire applications, max wire outer diameter 3.2 mm
Adjustable Positioner: JRready ACT-M202 4 indent 8 impression crimping, 8 position selector knob allows you to control the crimp depth with ease, smooth precision ratchet ensures the same accurate crimps every time, wire size 12-22AWG. An adjustable positioner fixed in crimper frame, it is used to locate contacts horizontally and vertically between the indenters of the tool to ensure the accuracy and consistency of the crimp position
Size 16 Solid Contacts 16-20AWG: Solid terminals have strong stability and conductivity, easy to crimping with wire and installing into connector. The DT Connector kit includes 115 pairs, Male Pins 0460-202-16141/Female Sockets 0462-201-16141. Solid Contacts Wire Gauge 16-20AWG
Widely Applied: JRready DW5010 Deutsch DT connectors with crimper kit include series 2 3 4 6 8 12 pin electrical connector components, widely applied in Construction, Truck, Bus, Off-highway, Agriculture, Mining, Emergency Vehicles, Forestry, Recreational Marine, Motorcycle etc
Deutsch Pin Removal Tools: 2PCS 0411-310-1605 Pin Removal Tool suitable for 16-20 AWG test wire applicationsDRK-RT1B Deutsch Removal Tool Used to remove Deutsch solid and stamped and formed pins and socket contacts from front-release connectors. DRK-16DT-PRO Suitable for 16-20 AWG Wire applications, max wire outer diameter 3.2 mm
