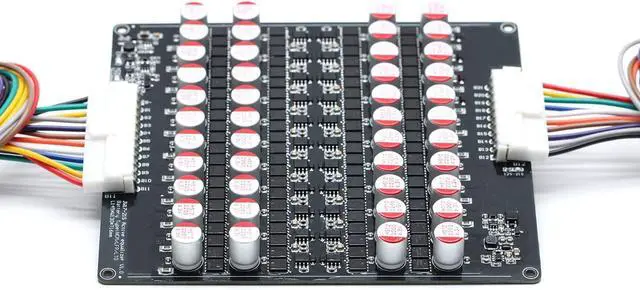

17S 20S 21S 5A Capacitor Active Equalizer Balancer LFP Lifepo4 Lithium Lipo/Titanate LTO Battery Energy Transfer Active Equalization Module Faster Whole Group Balancer Board

Working Principle: Flying capacitor transfer charge transporter, Balancer board is connected to the battery to start the balance work, using the original brand new ultra-low internal resistance MOS, 2OZ copper thickness PCB. Balance current 0-5.5A, the more balanced the battery current is Small, reserved for the dormant switch wiring position, the dormant power-off mode working current is less than 0.1mA, and the balance voltage accuracy is within 5mv!
The quiescent current is about 7mA, and the battery capacity is recommended to be used between 30-300AH/Per Balancer.High-capacity batteries can be connected in parallel with multiple equalizers. With under-voltage sleep protection, only detecting the B1 battery voltage, the equalizer will automatically stop entering the sleep state when the B1 voltage NCM/LFP<2.7V or LTO<1.8V, and the standby power consumption is less than 0.1mA.
NOTE: Before connect the balance cable to the balance board, be sure to check whether the connections of each section of the battery pack are correct, and do a good job of insulating the bottom of the board and the battery string connection terminals. Otherwise, it will short-circuit and burn the board. Tips: This balancer board is backward compatible by default. eg. If it is used for 20S, the last line B21+ is empty, and so on.
Working voltage: 1.8V-4.5V
Suitable for ternary lithium(Li-ion), lithium iron phosphate (LiFePO4), lithium titanate(LTO).
The whole battery participates in the active equalization of energy transfer at the same time.
0.1V differential voltage 1A equalizing current. The differential voltage is bigger that equalizing current is bigger. The maximum allowable working current is 5.5A.

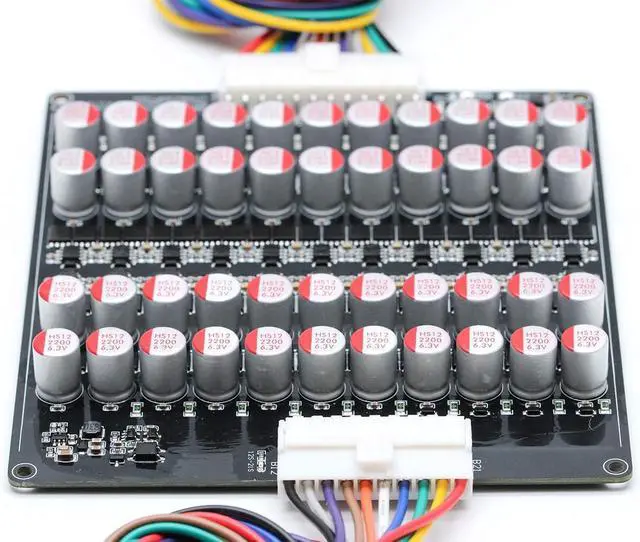

Working principle: Flycap-capacitor transfer charge transporter, Balancer board is connected to the battery to start the balance work, using the original brand new ultra-low internal resistance MOS, 2OZ copper thickness PCB.
Balance current 0-5.5A, the more balanced the battery current is Small, reserved for manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!
The quiescent current is about 12mA-16mA, and the battery capacity is recommended to be used between 30-200AH/Per Balancer.
With under-voltage sleep protection, only detecting the B1 battery voltage, the equalizer will automatically stop entering the sleep state when the B1 voltage NCM/LFP

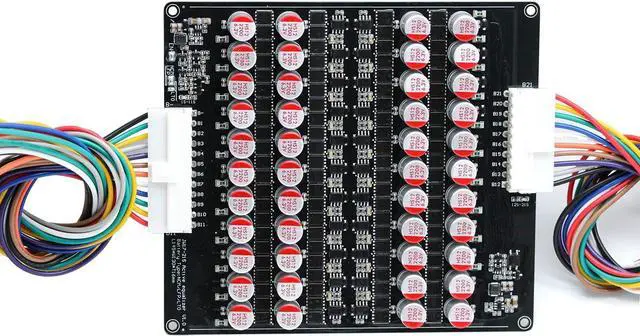

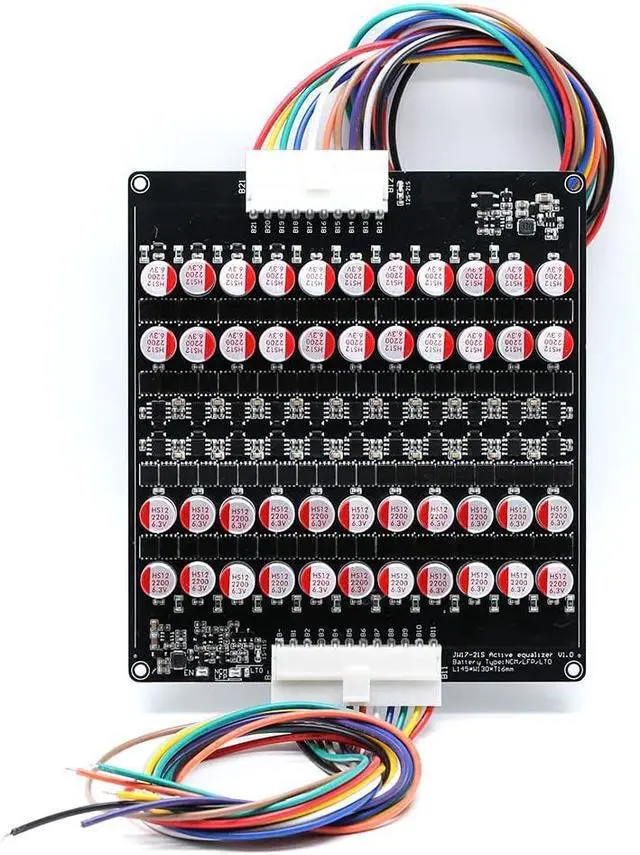

Board size: 145x130x16mm/ 5.7x5.11x0.63inch
Balance cable length: 400mm/ 15.7inch
One LED indicator: It will always be on during normal operation, but it will not turn on when there is a problem or malfunction.
RUN pad: you can add a switch to control the balancer. Default short connect, let balancer working. if disconnect, it will not working.
Note:

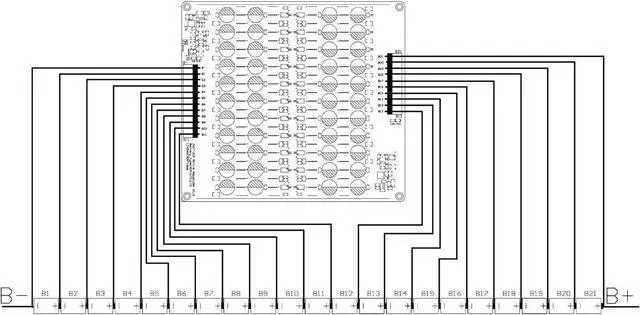

Please start wiring from the total negative pole, followed by B-, B1+,... B20+, B21+.(Test per string battery voltage whether is right before connect to Balancer board).
Package Includes:
1x 21S Balancer Board
1x 10-Pin Cable
1x 11-Pin Cable
