240-33 ohms 8"(200mm) Boat Fuel Tank Sending Unit Fuel Sending Unit Marine Truck Car Water Level Sensor RV Gas Gauge Sender

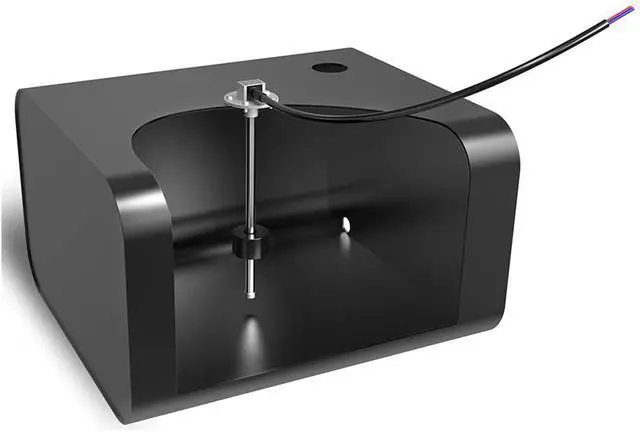

- Great replacement fuel senderThe advantage of This doughnut float design type level sender over thick-film swim arm type level Sender is the reed switch's durability and reliability. Additionally, no moving parts to break. No adjustment needed for tank. It could support fuel level gauge and water Tank Gauge for Boat/RV/Truck
- AODITECK Fuel Gauge: You can purchase an AODITECK fuel level gauge in conjunction with an AODITECK sending unit If your boat/camper didnt have a fuel gauge, Both Will Work Great Together. There are several series gauge models at option

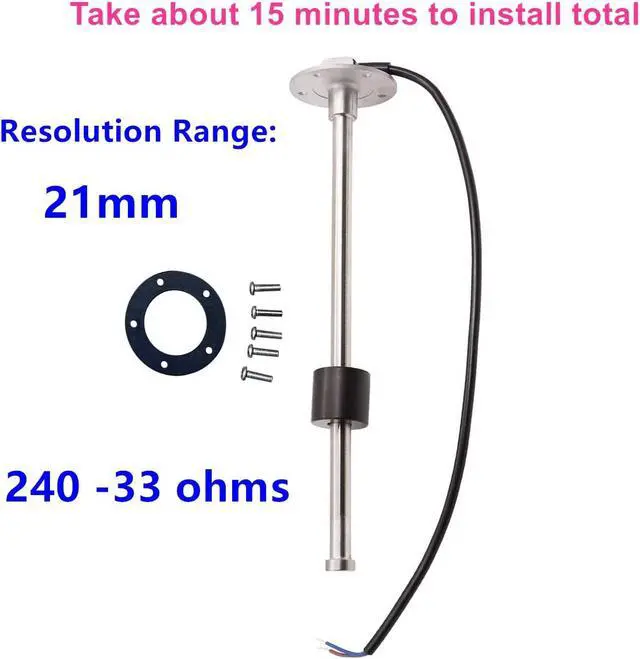

- More Reliable and Quality ConstructionAll the AODITECK Fuel Sending Units are made With series of Highquality reed switches and fixed resistors. SAE 5 hole mounting pattern, heavy duty SUS 316 stainless steel and rugged construction. Signal Output: 240 ohms-33 ohms
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

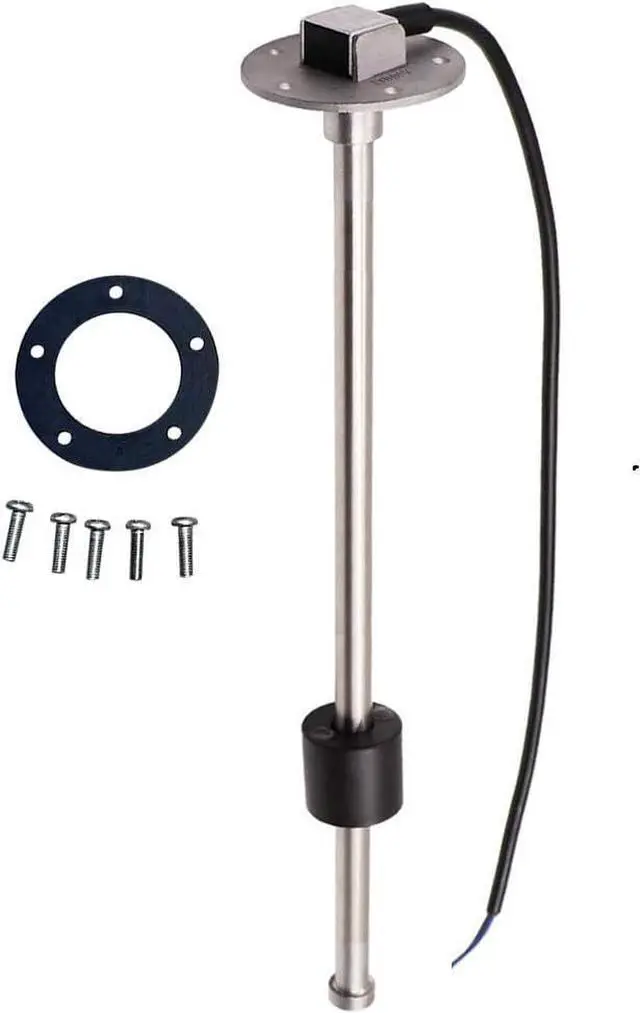

Easy to Install, Easy Hookup! The AODITECK Fuel Level sending unit comes with gasket, mounting screws, well-written and illustrated instructions; The wiring instructions are straight forward and easy to follow. Takes about 15 minutes to install total, getting your fuel gauge working again

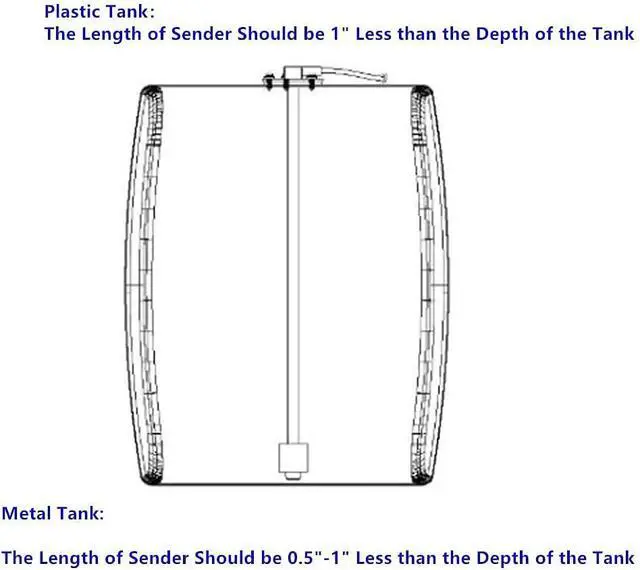

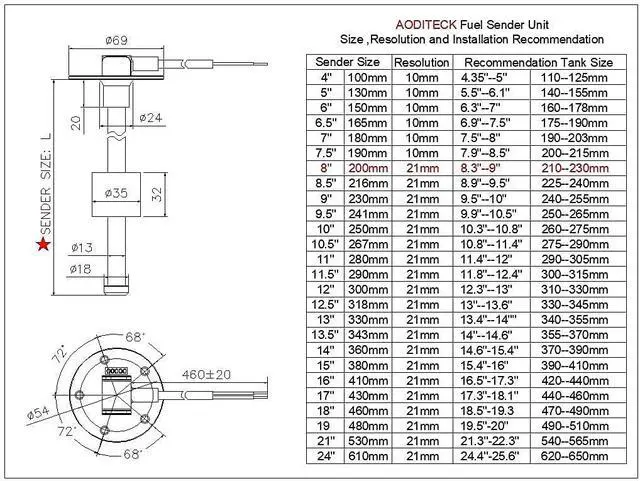

Note: to allow the sender not hit the bottom of the tank, the length of sender should be 1" less than the depth of the tank if tank is plastic, and 0.5" less than the depth of the tank if tank is metal. The Diameter of Float is 1.38" (35mm). If You Have to Drill the hole, Diameter 1-1/2" (38mm) Hole Would be Perfect. AODITECK Sender is with Non-Linear Output, It can only match with standard gauge with Non-Linear signal
Note: to allow the sender not hit the bottom of the tank, the length of sender should be 1" less than the depth of the tank if tank is plastic, and 0.5" less than the depth of the tank if tank is metal. The Diameter of Float is 1.38" (35mm). If You Have to Drill the hole, Diameter 1-1/2" (38mm) Hole Would be Perfect. AODITECK Sender is with Non-Linear Output, It can only match with standard gauge with Non-Linear signal
