Water Flow Control Meter LCD Display Controller+G1/2" Water Hall Sensor Flow Meter Flowmeter Counter 1-30L/min+G1/2" Solenoid Valve Normally Closed N/C+DC 12V Power Adapter

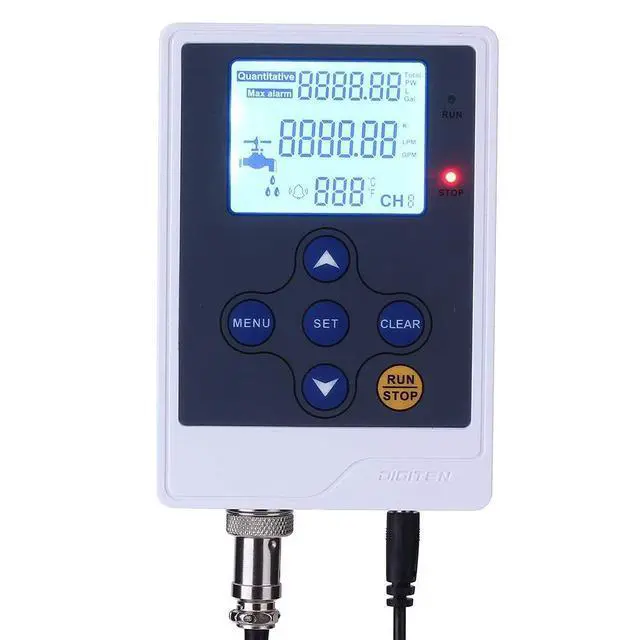

- Large LCD Screen & Monitor Flow Rate: Support reading with Liter or Gallon unit, LPM/GPM switchable. DFC15 will display the flow rate(the REAL-TIME volume of liquid which passes per minute), the flow total volume and sensed temperature clearly.
- Quantitative Control & Alarm Function: The controller will turn off the solenoid valve automatically when flow reach to the setting value you desire, it's easy to install and control. It can automatically stop water filling into your concrete mixer. When the total amount reaches the setting value, the controller will alarm.
- Work with All Hall Effect Flow Sensor: It can work with various different flow sensors through adjust the K value. High quality, come with temperature sensor, it can measure liquid temperature.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Wide Applications: Swimming pool, water dispenser, coffee machine, drip irrigation system, beer brewing, etc. For example, if you want 5 liters of water, you can set up 5 liters of water on the DFC15 controller. When the water in the container reaches 5 liters, the controller will control the solenoid valve to close it, the water flow automatically stops, and you just get 5 liters of water. Please select a suitable flow meter. An oil flow meter is required for liquids other than water.
Package Includes & Warranty: Thread
type: BSP, but it can work with NPT thread. The controller will come with G1/2" flow sensor, G1/2" solenoid valve(N/C), temperature sensor (it can measure liquid temperature) and 12VDC power adapter.
TECHNICAL SPECIFICATIONS

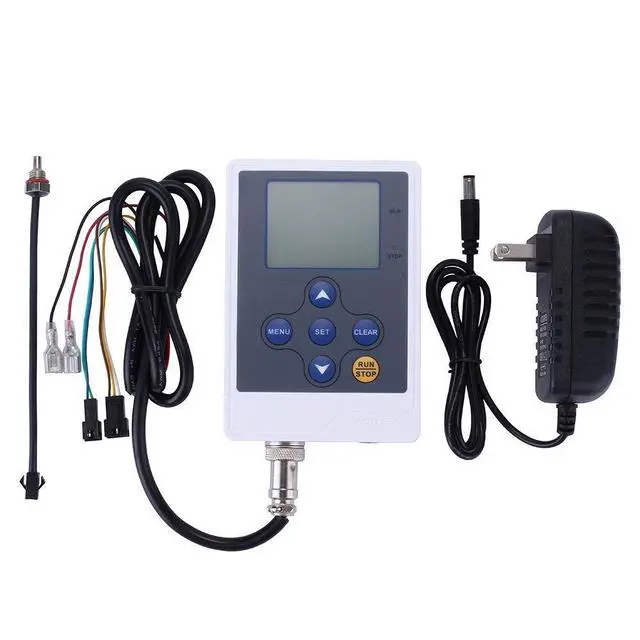

For DFC15 Controller:
Controller Power Requirement: 12VDC
Power Adapter:
Input: 100-240VAC; Output: 12VDC, max 2A
Adapter lead length: 1m
Measuring Accuracy: ±1%
Output for Solenoid valve: 12VDC, max 5A
Temperature Sensor: 0-125/32-257, NTC3950, Accuracy: ±1/±1 thread: M8
Max Total Volume: 999999 G/L
Quantitative Range: 0- 9999.99 G/L
Flow Rate Range: 0- 9999.99 /LPM (GPM)
Cable Length: 1m
Dimensions: 88mmx126mmx30mm
Weight: 200g
Operation Environment:
Temperature: 0-50/32-122;

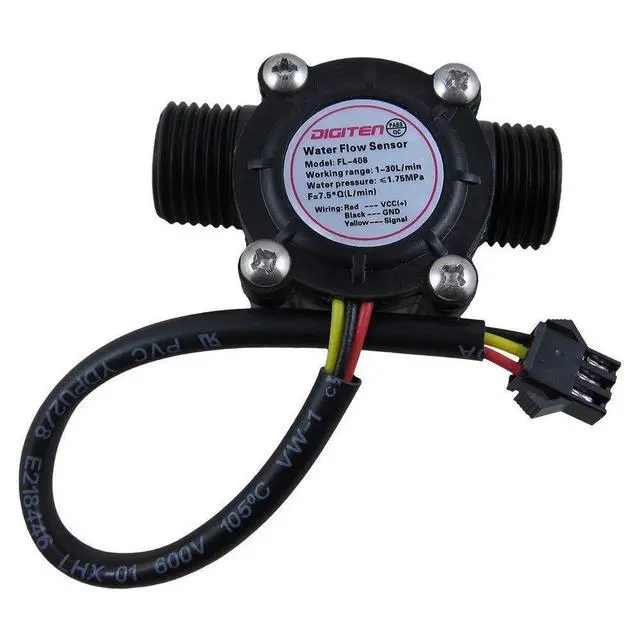

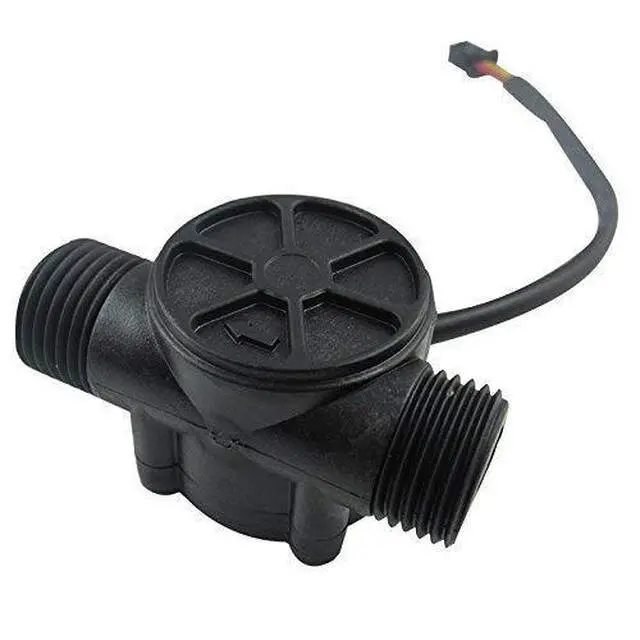

Relative Humidity: For G1/2" Flow Sensor:
Flow range: 1-30L/min
Allow compression: Water pressure 1.75 Mpa below
Sensor: Hall effect
Cable length: 15cm.

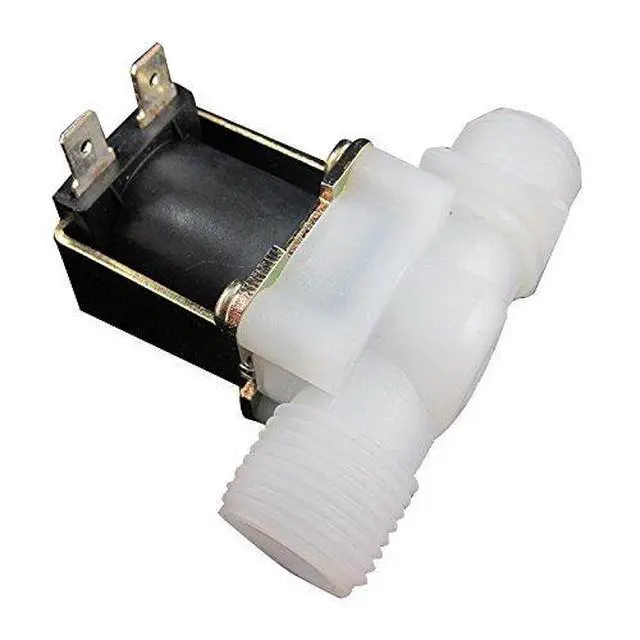

Error: ± 2% For G1/2" Solenoid Valve:
Working pressure: 0.02 - 0.8M pa
Operation mode: N/C, normally closed.
How to work:

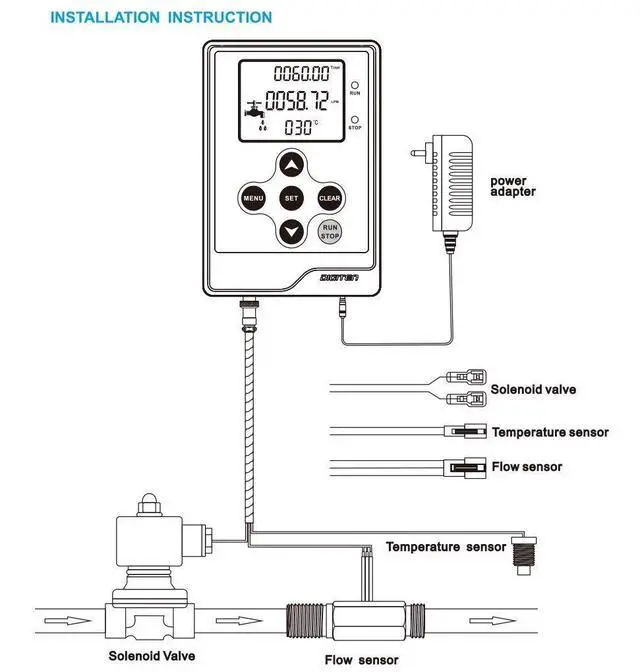

1. Set K value, quantitative value, max alarm value, properly install the flow sensor and solenoid valve.
2. Press the RUN/STOP button, the controller works, total will continuously display the current flow volume, and current flow rate, and the faucet will start animated display.
3. When the flow reaches the quantitative setting value, the controller turn off the solenoid valve automatically, and the total value stop, faucet animation will be stopped dropping, flow rate back to zero.
4. Pressthe RUN/STOP buton again and the controller will repeat the same job.
Note:
1, This controller work with the solenoid valve up to 5A, but this kit come with 2A power adapter. If drive a large solenoid valve, please use suitable power adapter.
2, Ensure the solenoid valve and flow sensor direction is the same with water flow.
3, Avoid the water into the controller.

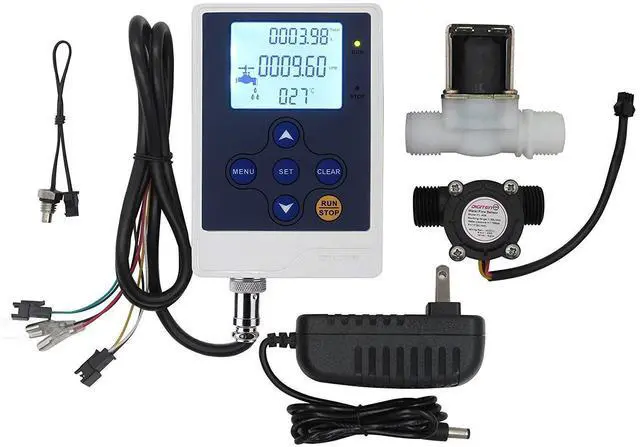

Package includes:
1 x DFC15 controller
1 x G1/2" flow sensor
1 x G1/2" solenoid valve
1 x Power adapter
1 x Temperature sensor
1 x Manual
Package Includes & Warranty: Thread
type: BSP, but it can work with NPT thread. The controller will come with G1/2" flow sensor, G1/2" solenoid valve(N/C), temperature sensor (it can measure liquid temperature) and 12VDC power adapter.
TECHNICAL SPECIFICATIONS
For DFC15 Controller:
Controller Power Requirement: 12VDC
Power Adapter:
Input: 100-240VAC; Output: 12VDC, max 2A
Adapter lead length: 1m
Measuring Accuracy: ±1%
Output for Solenoid valve: 12VDC, max 5A
Temperature Sensor: 0-125/32-257, NTC3950, Accuracy: ±1/±1 thread: M8
Max Total Volume: 999999 G/L
Quantitative Range: 0- 9999.99 G/L
Flow Rate Range: 0- 9999.99 /LPM (GPM)
Cable Length: 1m
Dimensions: 88mmx126mmx30mm
Weight: 200g
Operation Environment:
Temperature: 0-50/32-122;
Relative Humidity: For G1/2" Flow Sensor:
Flow range: 1-30L/min
Allow compression: Water pressure 1.75 Mpa below
Sensor: Hall effect
Cable length: 15cm.
Error: ± 2% For G1/2" Solenoid Valve:
Working pressure: 0.02 - 0.8M pa
Operation mode: N/C, normally closed.
How to work:
1. Set K value, quantitative value, max alarm value, properly install the flow sensor and solenoid valve.
2. Press the RUN/STOP button, the controller works, total will continuously display the current flow volume, and current flow rate, and the faucet will start animated display.
3. When the flow reaches the quantitative setting value, the controller turn off the solenoid valve automatically, and the total value stop, faucet animation will be stopped dropping, flow rate back to zero.
4. Pressthe RUN/STOP buton again and the controller will repeat the same job.
Note:
1, This controller work with the solenoid valve up to 5A, but this kit come with 2A power adapter. If drive a large solenoid valve, please use suitable power adapter.
2, Ensure the solenoid valve and flow sensor direction is the same with water flow.
3, Avoid the water into the controller.
Package includes:
1 x DFC15 controller
1 x G1/2" flow sensor
1 x G1/2" solenoid valve
1 x Power adapter
1 x Temperature sensor
1 x Manual
