5 Pack Direct Current Photoelectric Switch, 12V/24V/36V/48V Photocell, DC 8V to 50V Light Control With Automatic Illumination Detection Circuit, Dusk to Dawn

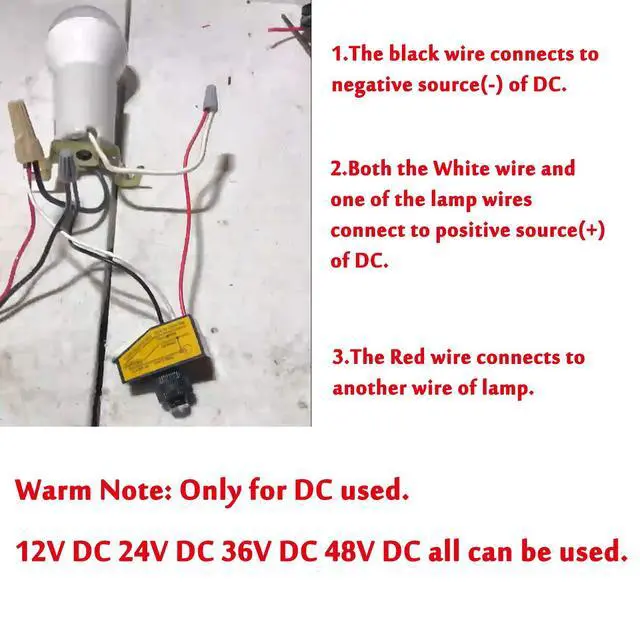

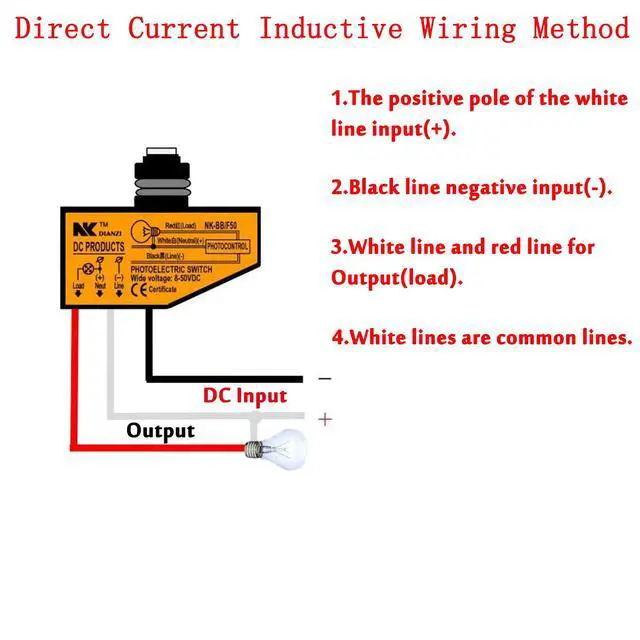

- NOTENOTENOTEThe DC Photoelectric Switch using three-wire system, compatible with resistance.The positive pole of the white line input (+),Black line neg ative input (-),White line and red line for loadOutput,White lines are common lines.Please read the wiring methord befor you install this item, if the installation is reversed,the switch will be SHORT CIRCUIT INSTANTLYIf you cannot fully understand the text, please be sure to carefully check the product wiring diagram in the picture.
- Automatic DC 12V 24V 36V 48V Photocell Switch For Outdoor LightsThe Light Control Switch with sensor photoelectric system, turns lights on at dusk and off at dawn automatically; wide voltage input range DC 8V-50V; rated loading 5A.
- Waterproof And SafetyPhotocell Switch with heavy-duty case to protect elements, matching waterproof washer, dustproof and waterproof, suitable for commercial or residential outdoor fixtures.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

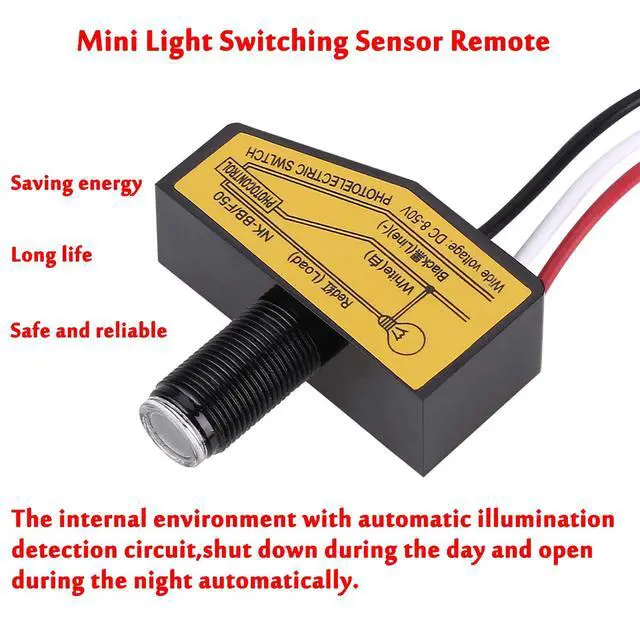

High PerformanceThe internal environment with automatic illumination detection circuit, shut down during the day and open during the night automatically. Control of the lighting time according to the illumination value of the environment automatically.
Widely UsedFits to automatic switching control of solar Led lights, stree lamps, courtyard lamps, corridor lamps and other lighting fixtures; or cars, motorcycles, electric cars, golf cart, club car and other power supply voltage is 12V 24V 36V 48V lamps and lanterns or equipment.
Description:
The photocell switch is an automatic control of the lighting time according to the illumination value of the environment. It has the characteristics of saving energy, long life, safe and reliable.
It is generally used in places where the visibility is low and it is necessary to switch the lamp automatically for a long time.
Specification:
Condiiton: 100% Brand New
Color: Black
Wiring: Export three-wire system
Voltage range: 12V 24V 36V 48V
Supply voltage: 8V to 50VDC (module normal operating voltage range)
Standby current: 0.5 ma (silent state)
Output power: High power, load current 5A, the pressure drop is negligible.
Power consumption: 0.6W max
Anti interference delay: about 0.6 second
Sensitivity: 5-10LX on 30-60LX off
Environment temperature: -40 ~ +70
Related Humidity: 99% RH
Working Life: 6500 cycles
Detector waterproof grade: IP 66
Use of the environment,
temperature: Can not be installed in a corrosive gas environment, minus 25 to 70 degrees.
Leads Length: 150mm
Product Size: (L) x (W) x (H) 40 x 15.6 x 20 mm / 1.57" x 0.61" x 0.79" (appr. )Package
Included:

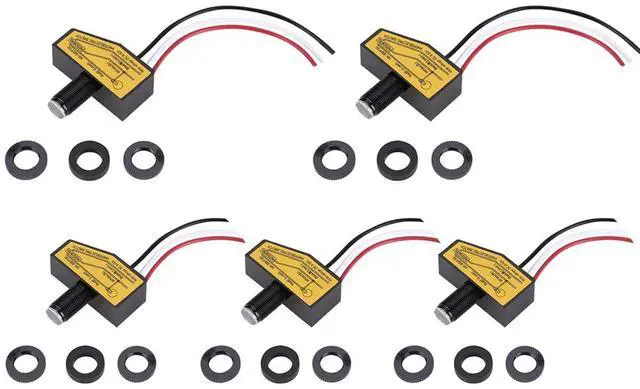

5x Photocell SwitchNotice:
Please allow 1-3cm error due to manual measurement and make sure you do not mind before ordering.
Please understand that colors may exist chromatic aberration as the different placement of pictures.
Widely UsedFits to automatic switching control of solar Led lights, stree lamps, courtyard lamps, corridor lamps and other lighting fixtures; or cars, motorcycles, electric cars, golf cart, club car and other power supply voltage is 12V 24V 36V 48V lamps and lanterns or equipment.
Description:
The photocell switch is an automatic control of the lighting time according to the illumination value of the environment. It has the characteristics of saving energy, long life, safe and reliable.
It is generally used in places where the visibility is low and it is necessary to switch the lamp automatically for a long time.
Specification:
Condiiton: 100% Brand New
Color: Black
Wiring: Export three-wire system
Voltage range: 12V 24V 36V 48V
Supply voltage: 8V to 50VDC (module normal operating voltage range)
Standby current: 0.5 ma (silent state)
Output power: High power, load current 5A, the pressure drop is negligible.
Power consumption: 0.6W max
Anti interference delay: about 0.6 second
Sensitivity: 5-10LX on 30-60LX off
Environment temperature: -40 ~ +70
Related Humidity: 99% RH
Working Life: 6500 cycles
Detector waterproof grade: IP 66
Use of the environment,
temperature: Can not be installed in a corrosive gas environment, minus 25 to 70 degrees.
Leads Length: 150mm
Product Size: (L) x (W) x (H) 40 x 15.6 x 20 mm / 1.57" x 0.61" x 0.79" (appr. )Package
Included:
5x Photocell SwitchNotice:
Please allow 1-3cm error due to manual measurement and make sure you do not mind before ordering.
Please understand that colors may exist chromatic aberration as the different placement of pictures.
