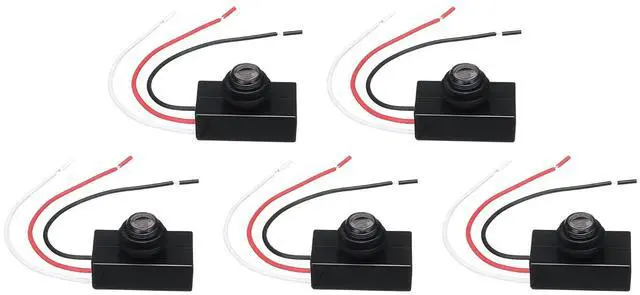

5 Pack DC 8-50V Photoelectric Switch,12V/24V/36V/48V Direct Current Photocell Switch,Dusk to Dawn Photocell Light Switch,Auto ON Off Light Sensor Control Switch,Perfect for Lighting System

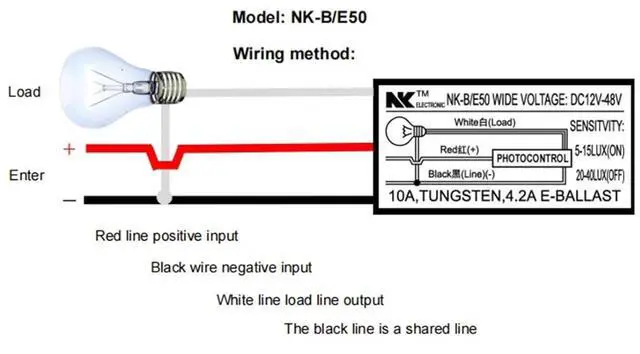

- Please NOTE ConnectionThe DC Photoelectric Switch using three-wire system, compatible with resistance.The positive pole of the red line input (+),Black line neg ative input (-),White line and black line for loadOutput,Black lines are common lines.Please read the wiring methord befor you install this item, if the installation is reversed,the switch will be SHORT CIRCUIT INSTANTLYIf you cannot fully understand the text, please be sure to carefully check the product wiring diagram in the picture.

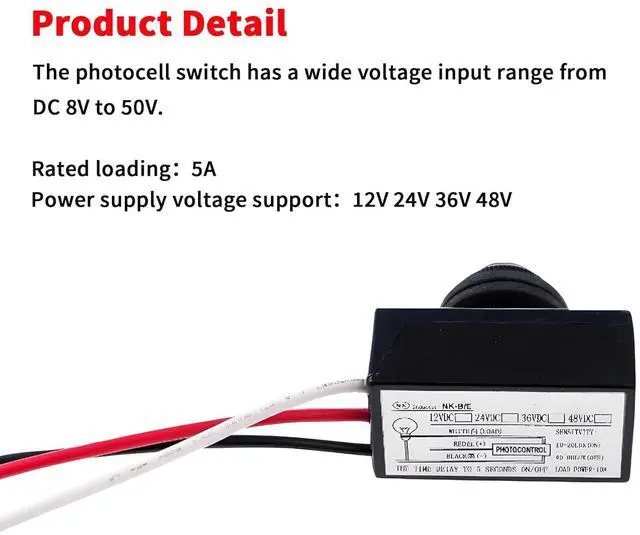

- Product DetailThe photocell switch has a wide voltage input range from DC 8V to 50V, rated loading 5A, power supply voltage of 12V 24V 36V 48V.

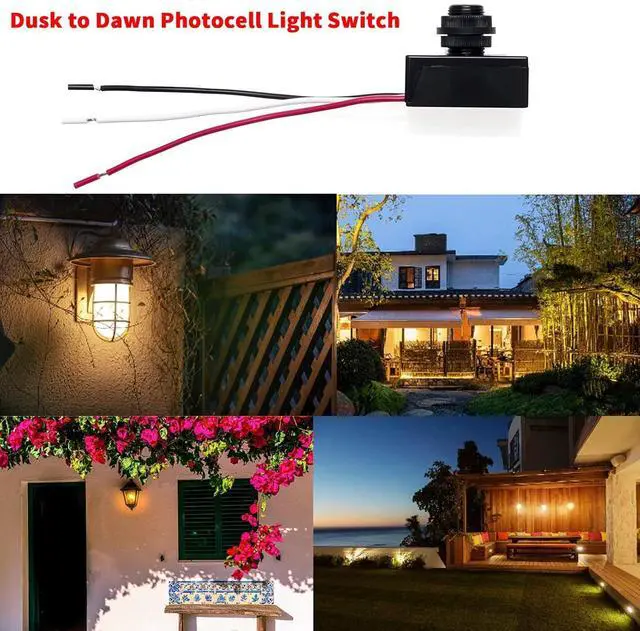

- Automatic DC 12V 24V 36V 48V Photocell Switch For Outdoor LightsThe Light Control Switch with sensor photoelectric system, turns lights on at dusk and off at dawn automatically.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

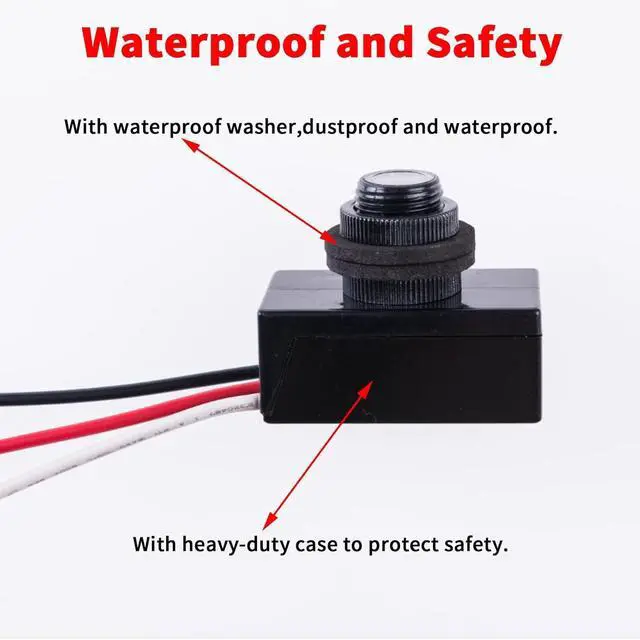

Waterproof And SafetyPhotocell Switch with heavy-duty case to protect elements, matching waterproof washer, dustproof and waterproof, suitable for commercial or residential outdoor fixtures.
High PerformanceThe internal environment with automatic illumination detection circuit, shut down during the day and open during the night automatically. Control of the lighting time according to the illumination value of the environment automatically.
Widely UsedFits to automatic switching control of solar Led lights, stree lamps, courtyard lamps, corridor lamps and other lighting fixtures; or cars, motorcycles, electric cars, golf cart, club car and other power supply voltage is 12V 24V 36V 48V lamps and lanterns or equipment.
Specification:
Color:
BlackWiring: Export
three-wire systemVoltage range: 12V
24V 36V 48VSupply voltage: 8V to 50VDC (module normal operating voltage range)
Standby current: 0.5 ma (silent state)
Output power: High power, load current 5A, the pressure drop is negligible.
Power consumption: 0.6W
maxAnti interference delay: about
0.6 secondSensitivity: 5-10LX on 30-60LX offEnvironment temperature: -40 ~ +70
Related Humidity: 99%
RHWorking Life: 6500
cyclesDetector waterproof grade: IP 66Use of the environment, temperature: Can not be installed in a corrosive gas environment, minus 25 to 70 degrees.
Leads Length: 150mmProduct
Size: (L) x (W) x (H) 40 x 15.6 x 20 mm / 1.57" x 0.61" x 0.79" (appr. )
High PerformanceThe internal environment with automatic illumination detection circuit, shut down during the day and open during the night automatically. Control of the lighting time according to the illumination value of the environment automatically.
Widely UsedFits to automatic switching control of solar Led lights, stree lamps, courtyard lamps, corridor lamps and other lighting fixtures; or cars, motorcycles, electric cars, golf cart, club car and other power supply voltage is 12V 24V 36V 48V lamps and lanterns or equipment.
Specification:
Color:
BlackWiring: Export
three-wire systemVoltage range: 12V
24V 36V 48VSupply voltage: 8V to 50VDC (module normal operating voltage range)
Standby current: 0.5 ma (silent state)
Output power: High power, load current 5A, the pressure drop is negligible.
Power consumption: 0.6W
maxAnti interference delay: about
0.6 secondSensitivity: 5-10LX on 30-60LX offEnvironment temperature: -40 ~ +70
Related Humidity: 99%
RHWorking Life: 6500
cyclesDetector waterproof grade: IP 66Use of the environment, temperature: Can not be installed in a corrosive gas environment, minus 25 to 70 degrees.
Leads Length: 150mmProduct
Size: (L) x (W) x (H) 40 x 15.6 x 20 mm / 1.57" x 0.61" x 0.79" (appr. )
