IP67 Waterproof Universal 10-30VDC Safety Retro-Reflective Photoelectric Beam Sensor for 12VDC and 24VDC Gate Opener, Garage Door Sensor Up to 40 Feet Sensing Range, Pre-Wired 6.6 Feet Cord

LONG SENSING RANGE - Up to 40 feet (12m).
WIDE RANGE INPUT (10-30VDC) for easy power solution.



1.
Product Description:

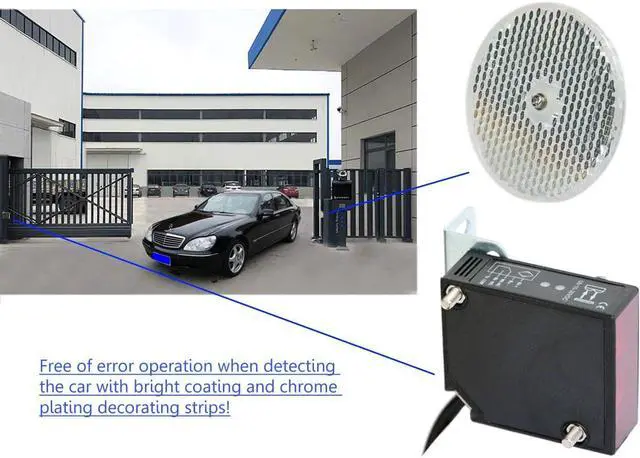

The Supreform retro-reflective photoelectric beam sensor is an ideal accessory for your existing gate opener and garage door opener. Its compatible with most brands gate opener, garage door opener and other security systems with both normal open and normal closed dry contact output.

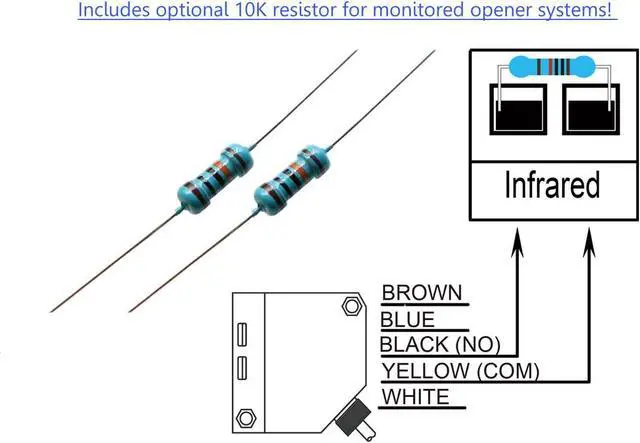

The kit includes an optional 10K resistor for the gate opener which monitors presence and operation of a photoelectric sensor.
The kit includes the brackets and mounting hardware for installation.

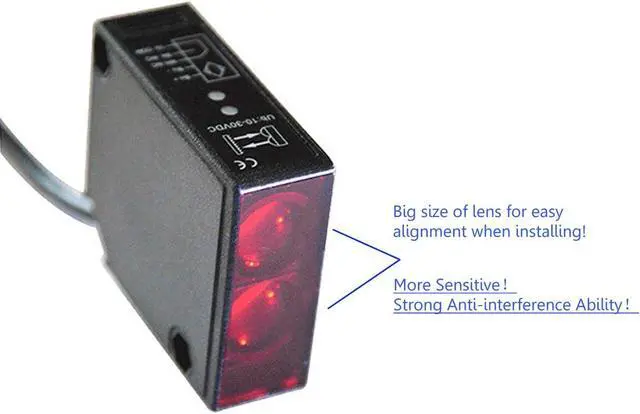

The big size of lens makes its easy to align the sensor with the reflector when installing. More Sensitive! Strong Anti-interference Ability!
The sensor is pre-wired 6.6 ft (2m) cord for easy wire connection.

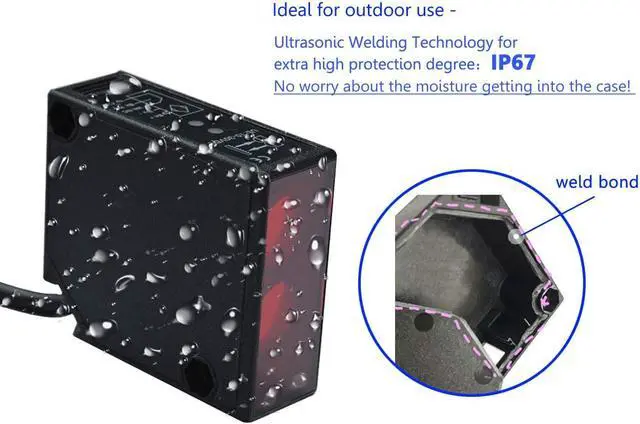

Its designed for outdoor use with extra high protection degree IP67.
It can be powered by wide range input voltage 10-30VDC.
We guarantee to answer all your questions within 24 hours.

2.
Technical specifications:
Detection Method: Retro-Reflective
Angle: 1.5 o approx.
Max.

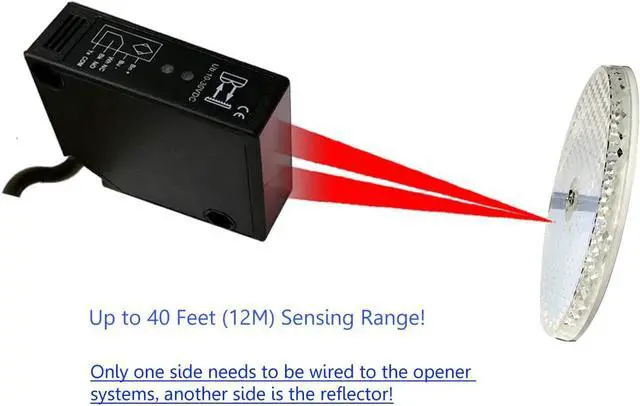

Sensing Range: 40 Feet (12 m)
Supply Voltage: 10-30VDC
CurrentDraw: Standby 30mA; Active 70mA

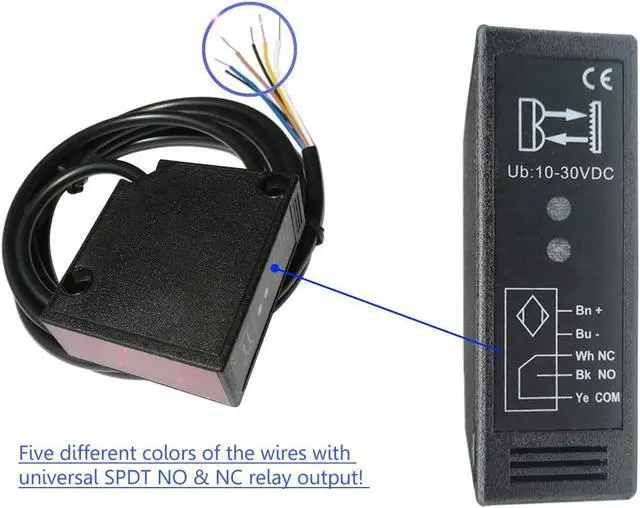

Output: Relay SPDT
Output Capacity: 1A/30VDC, 1A/250VAC
Protection Degree: IP67
LEDs - Green: Power on
LEDs - Red: Alignment
Ambient Temperature: -4-131 °F(-20-55 )

3.
Contents:

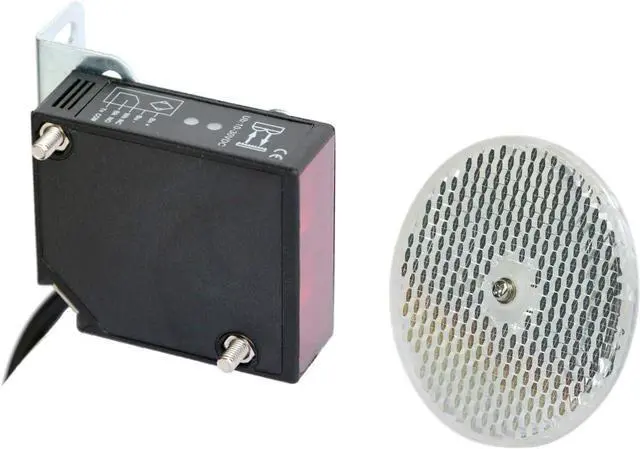

1 x Retro-reflective Photoelectric Beam Sensor;
2 x 10K resistor;
1 x User Manual;
1 Set of Installation Accessories.
