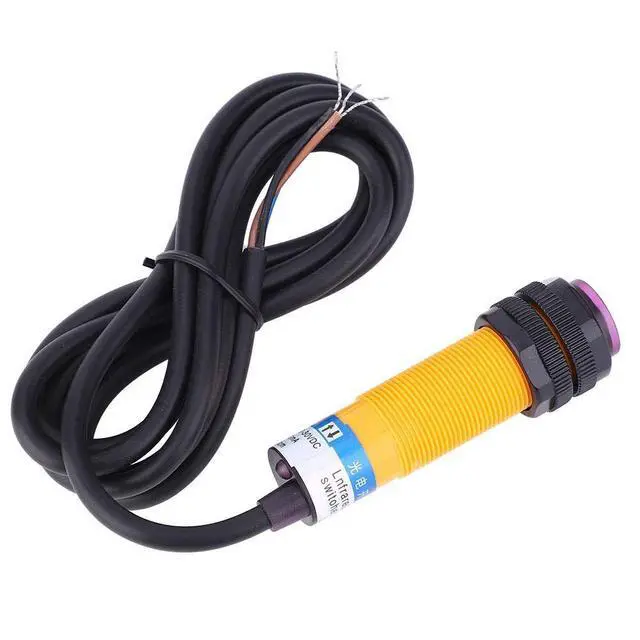

10PCS Infrared Diffuse Photoelectric Switch, E3F-DS30C4 M18 Proximity Switch, Optical Three Lines NPN NO (Normally Open) 30 cm Detection Distance10-30VDC Obstacle Avoidance Sensor Module
- Photoelectric switches, also known as photoelectric sensors, are mainly used in machine tools, metallurgy, chemicals, automatic doors, garages, etc.
- Can be used with programming controllers, microcontrollers, non-gate electronic counters, small relays, etc.
- Built-in LED chip for longer service life.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Built-in sensor chip, more sensitive to detect metal objects.
Standard line length is 1.1 meters, thick cable line, outer layer PVC flame retardant, durable, strong conductivity.
Specification:
Item Type: Photoelectric Sensor Switch
Brand: JYIO?
Model: E3F-DS30C4
Power Supply Voltage: 10-30VDC
Output Current: 200mA
Detection Distance: 30cm ± 10% (Note That The Unit Here is Centimeter! )

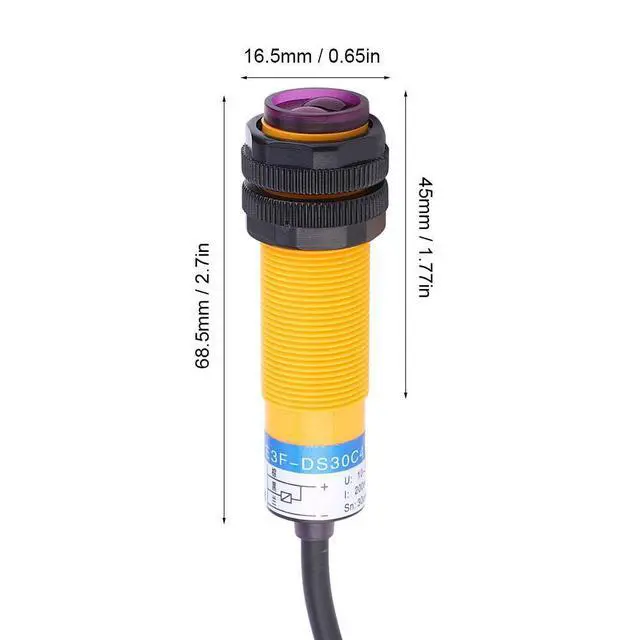

Opening Size: 18mm
Power Cord Length: 1.1 Meters
Output Form: DC Three-Wire Normally Open NPN NO
Detecting Objects: Opaque Objects
Detection Method: Diffuse Reflection
Working Environment Temperature: -30-+65°C
Cable Wire Wrapping Material: PVC
Head Material: ABS
Package List:
10 x Photoelectric Sensor Switch
Note:
Please allow slight error due to manual measurement. Thanks for your understanding.
Standard line length is 1.1 meters, thick cable line, outer layer PVC flame retardant, durable, strong conductivity.
Specification:
Item Type: Photoelectric Sensor Switch
Brand: JYIO?
Model: E3F-DS30C4
Power Supply Voltage: 10-30VDC
Output Current: 200mA
Detection Distance: 30cm ± 10% (Note That The Unit Here is Centimeter! )
Opening Size: 18mm
Power Cord Length: 1.1 Meters
Output Form: DC Three-Wire Normally Open NPN NO
Detecting Objects: Opaque Objects
Detection Method: Diffuse Reflection
Working Environment Temperature: -30-+65°C
Cable Wire Wrapping Material: PVC
Head Material: ABS
Package List:
10 x Photoelectric Sensor Switch
Note:
Please allow slight error due to manual measurement. Thanks for your understanding.
