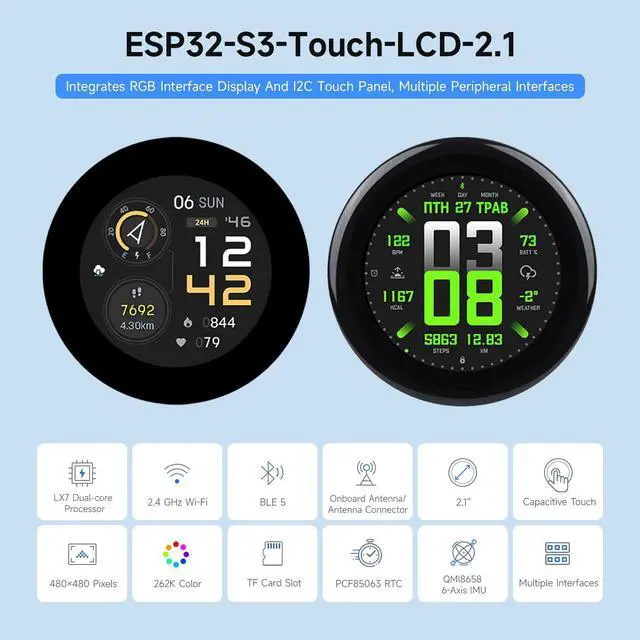

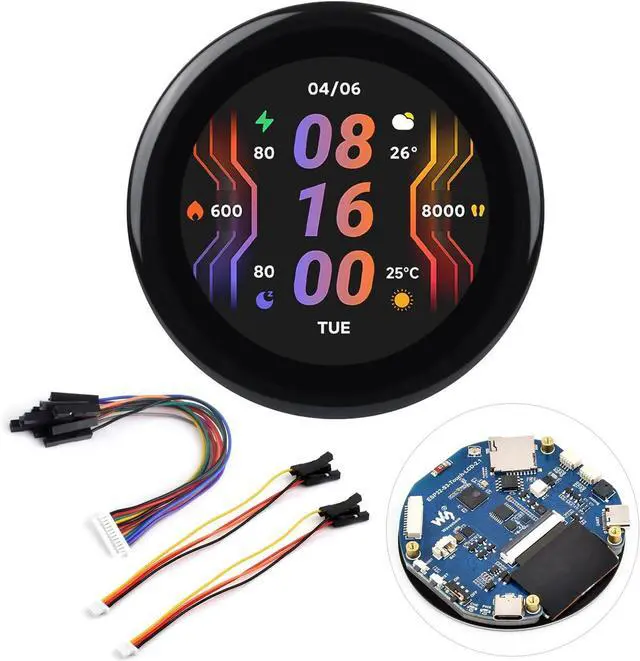

Waveshare ESP32-S3 2.1inch Capacitive Touch Round Display Development Board, 480×480, IPS, 32-bit LX7 Dual-core Processor, WiFi & Bluetooth, 262K Color, ESP32 with Display, 2.5D Curved Touch Panel

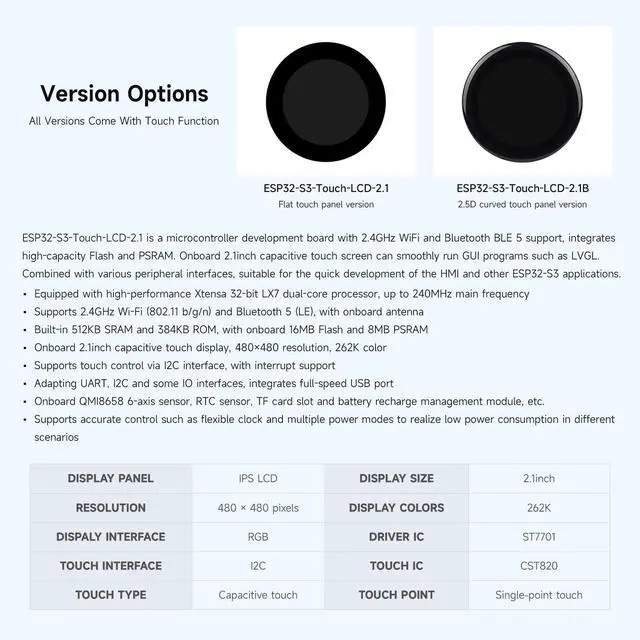

- The ESP32-S3-Touch-LCD-2.1 is a microcontroller development board with 2.4GHz Wi-Fi, Bluetooth BLE 5 support, and high-capacity Flash and PSRAM.
- It features a high-performance Xtensa 32-bit LX7 dual-core processor, running at up to 240MHz.
- The board has 512KB SRAM, 384KB ROM, 16MB Flash, and 8MB PSRAM, along with a 2.1-inch capacitive touch display (480x480 resolution).
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

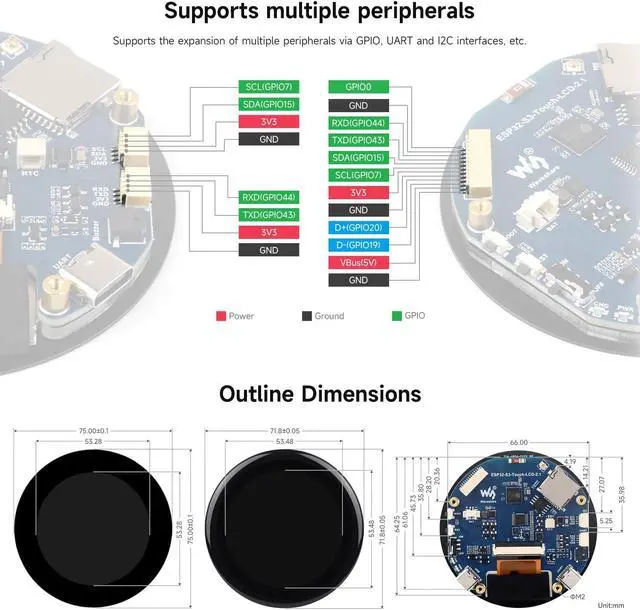

It supports touch control via I2C interface and offers multiple peripheral interfaces like UART, I2C, and USB.

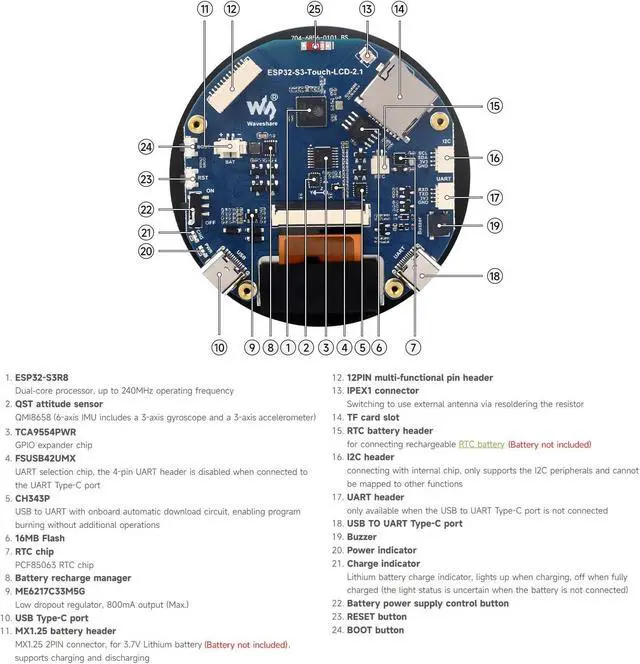

The board includes a QMI8658 6-axis sensor, RTC sensor, TF card slot, and battery management module, with low power modes for efficient energy use.
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
The board includes a QMI8658 6-axis sensor, RTC sensor, TF card slot, and battery management module, with low power modes for efficient energy use.
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
