1 in 6 Connector Power Divider Power Board,Power Distribution Block Module,40Amp Power Pole Distribution Block Module,Powerpole Distribution Block.1-6
- [Product Specifications]: The DC power distribution module features screw holes voltage range of DC0-32V, with a maximum input current of 40A and a 40A fuse. power splitter features 6 output ports, with fuse ratings of 5A×1, 10A×2, 20A×2, and 30A×1. The no-load static current is less than 8mA at 13.8V.
- [Easy to Use]: The Anderson Power Distributor Block features screw holes for easy installation and supports a base design for portable placement. Dimensions: 7.28 inches × 2.05 inches × 1.18 inches (length × width × height).
- [High Quality Material]: anderson power distribution board block shell is made of alumm alloy, treated by black oxidation process, compared with ordinary iron shell spray painting process, the feel is more delicate and the surface wear resistance is significantly improved.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

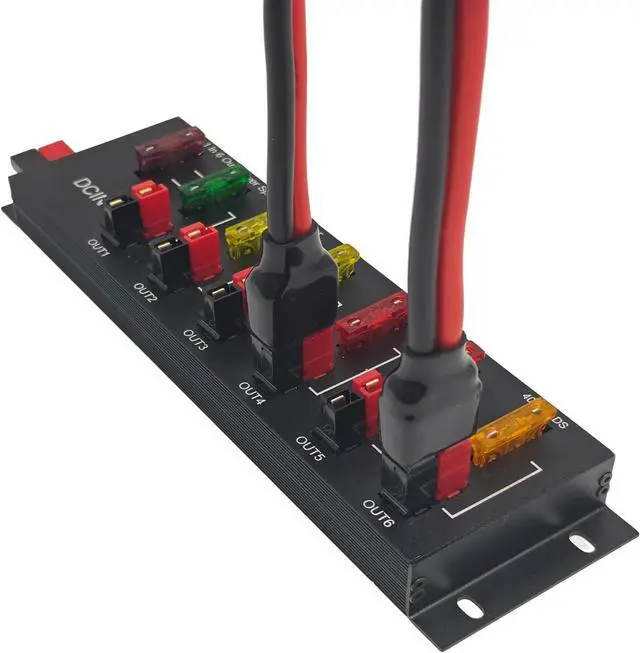

[Packing ]: The power cord distribution block consists of 1 distribution module, 7 red power terminal housings, 7 black power terminal housings, 14 silver-plated copper 30A 14-12AWG power terminal contacts, 2 tin-plated copper 45A 12-10AWG power terminal contacts.

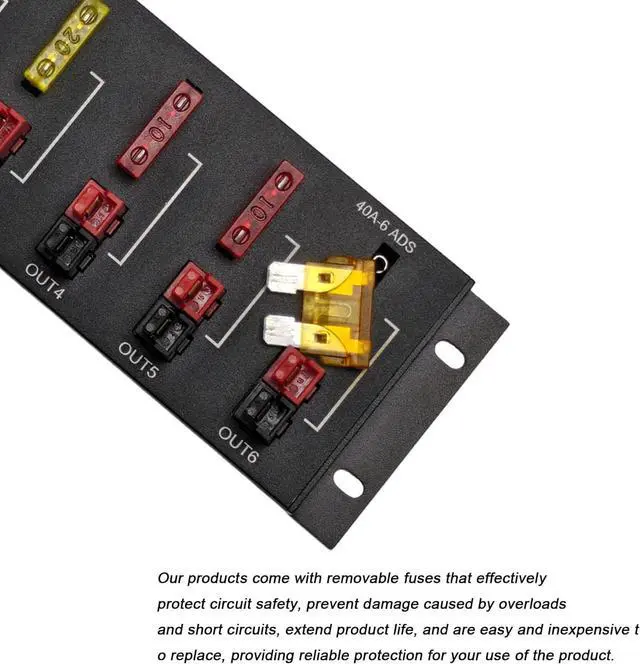

[Tips]: The fuse design of this products power distribution block is relatively, robust to effectively prevent accidental loosening or detachment. When replacing the fuse, it is recommended to use a specialized tool (such as needle-nose pliers) to grip the end of the fuse and pull it out vertically.
Product
Operating Voltage: DC 0-32V
Maximum Current: 40A
Fuse: 40A
High-Quality Housing: Aluminum Housing

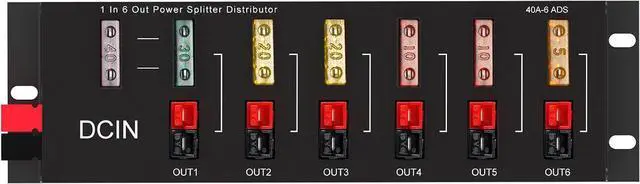

Output ports: 6 output ports
Fuses: 5A × 1, 10A × 2, 20A × 2, 30A × 1
Weight: Gross
weight: 211 g.
Net weight: 170 g

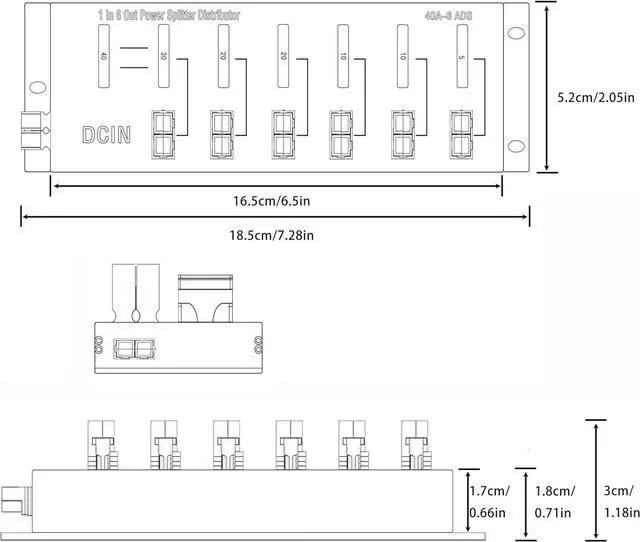

Dimensions: Length 7.28 inches, width 2.05 inches, height 1.18 inches
Product packaging: 1 distribution module
[Tips]: The fuse design of this products power distribution block is relatively, robust to effectively prevent accidental loosening or detachment. When replacing the fuse, it is recommended to use a specialized tool (such as needle-nose pliers) to grip the end of the fuse and pull it out vertically.
Product
Specifications
:Operating Voltage: DC 0-32V
Maximum Current: 40A
Fuse: 40A
High-Quality Housing: Aluminum Housing
Output ports: 6 output ports
Fuses: 5A × 1, 10A × 2, 20A × 2, 30A × 1
Weight: Gross
weight: 211 g.
Net weight: 170 g
Dimensions: Length 7.28 inches, width 2.05 inches, height 1.18 inches
Product packaging: 1 distribution module
