JRSSWCONN CP20 4 Pin Industrial Waterproof Connector 3 Sets, IP68 Waterproof Connector with Flange Panel Mount, 14-18AWG Terminals with Pin Removal Tool (Assembly Style:Solder)

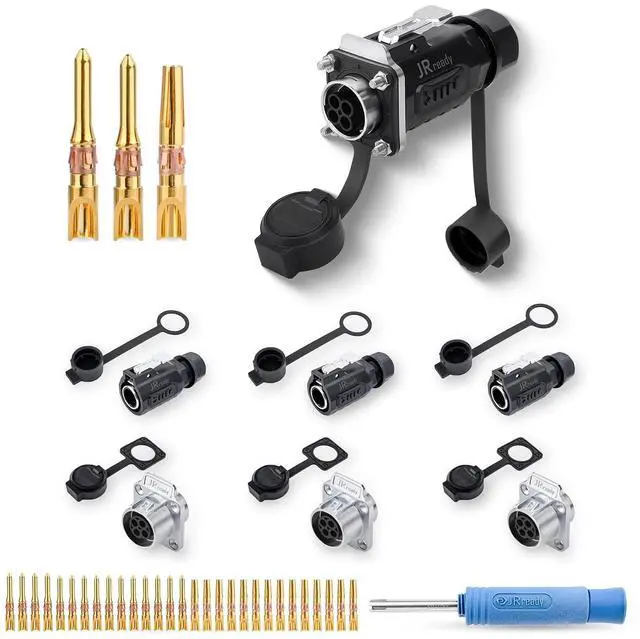

- 4 pin industrial waterproof connector kit:Male Plug and Female Socket 3 pairs ; Connecting Mode: One-Touch Button Plug/Unplug ; Locking Method: Automatic Insertion, Self-Locking Device ; Protection Level: IP68(Mated) ; Assembly Style: Weld

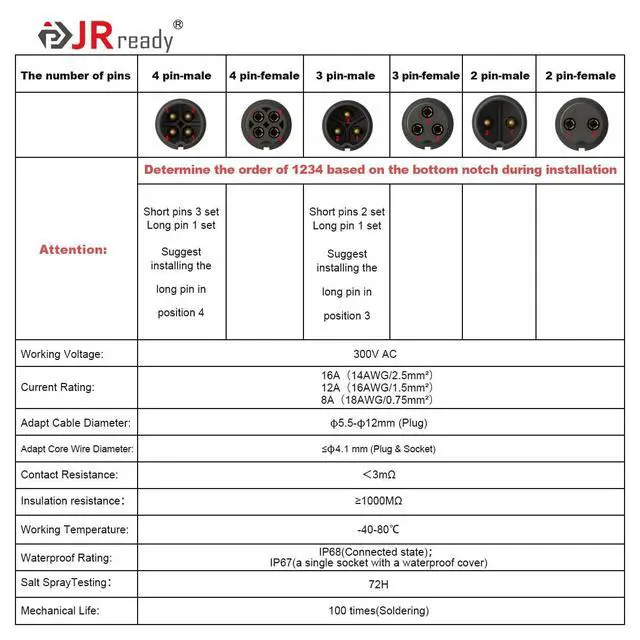

- Electrical performanceRated Current:16A ; Operating Voltage: 300V AC; Withstanding Voltage: 2000V AC; Contact Resistance: 3m ; Insulation Resistance: 1000M
- Standard:Cable size: 14AWG-18AWG(0.75mm²-2.5mm²); Cable Diameter Range: 5.5 - 12.0mm(plug); Durability:500 Mating/Unmating Cycle ; Temperature Rating:-40°C -80°C ; Assembly Style:solder
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

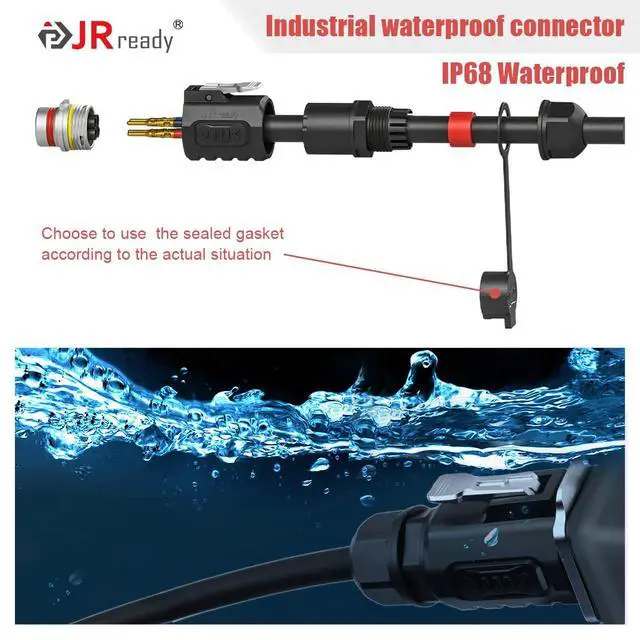

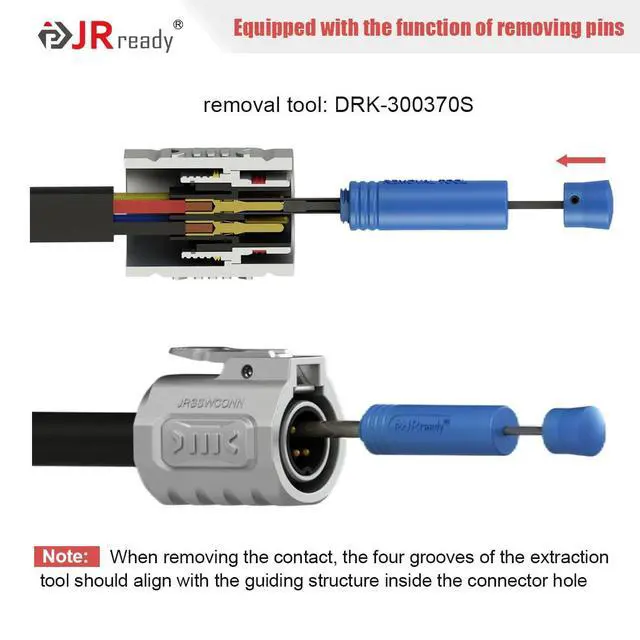

JRSSW waterproof connectors are equipped with one-button unlocking structure, which makes the operation easier and faster; this series of connectors are designed with high-strength materials and pressure-resistant structure; IP68 waterproof rating; equipped with the function of removing pins.
Wide applicationAutomation equipment, elecic devices, instruments and meters, ships, lighting fixtures, LED displays, and many other fields.
Wide applicationAutomation equipment, elecic devices, instruments and meters, ships, lighting fixtures, LED displays, and many other fields.
