TP1803D Lab Grade Variable Linear DC Power Supply, 0-18V @ 0-3A PC, with Alligator Cable and Power Cord,for Labs
- DC Linear Power Supply with Super stable Output
- High precision DC regulated power supply with 0-18 volts and 0-3 amp outputs
- Light weight with heavy Output
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Low Ripple for fine use
Great Service and 90 Day Warranty

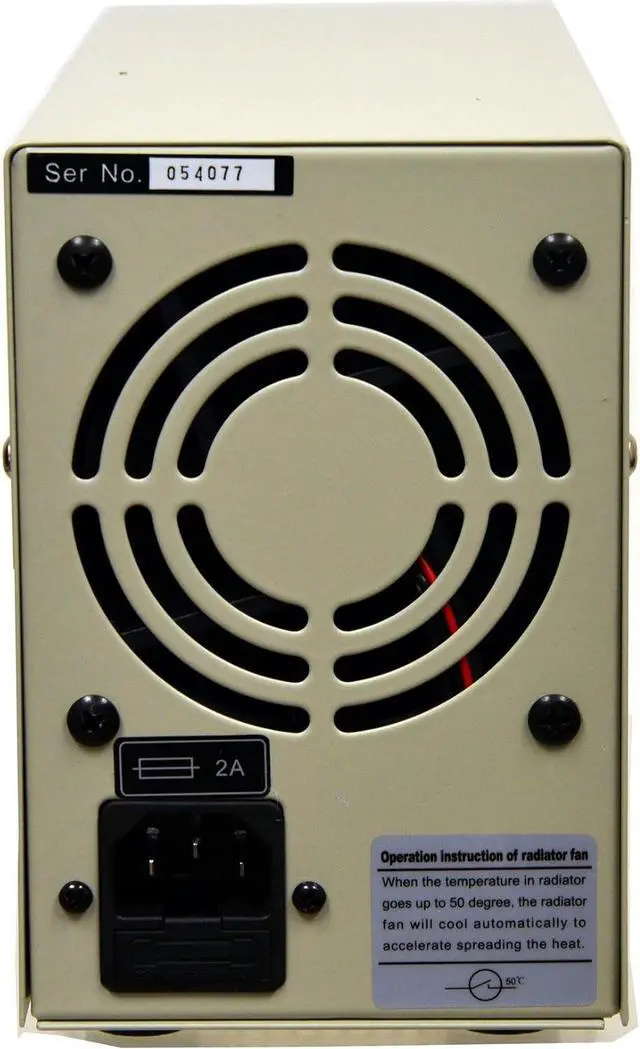

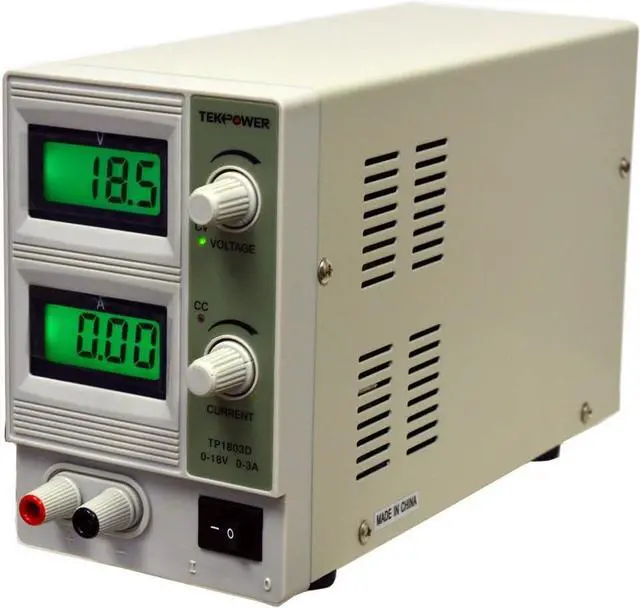

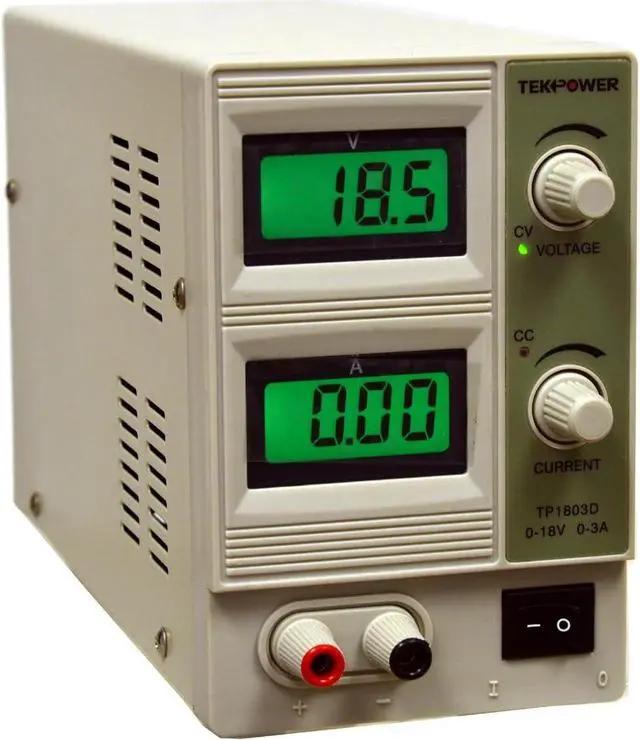

The Tekpower TP1803D variable DC power supply is a compact and affordable instrument that is suitable for both home and industrial use. This digital DC power supply has maximum output voltage of up to 18 volts and current up to 3 amps. It comes with rotary switches for setting up the voltage and current. With its reliability and versatility, it's an invaluable and indispensable tool for testing, science project and etc., ideal for labs, research institutes, R & D facilities.
Specifications:
Output DC Voltage: 0.0 - 18.0V
Output DC Current: 0.00 - 3.00 A
Input Voltage: 110V/AC, 60Hz
Voltage and Current adjustment
Voltage regulation: CV
Load regulation: CV
Ripple and noises: CV
Protection: High current limiting
Operating Temperature: 0 - 102 F (0 - 40 C), Relative
Humidity:
LCD Accuracy is within +/- 2.5%
Size: 9 ½ x 6 x 3 ¾ inches
Weight: approx. 7 lbs

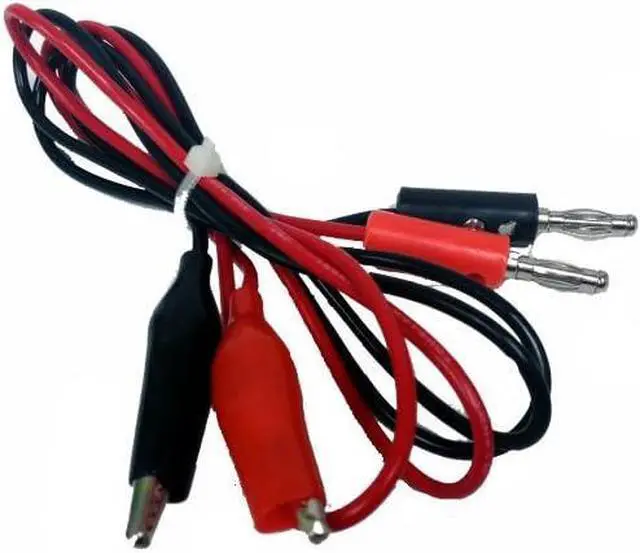

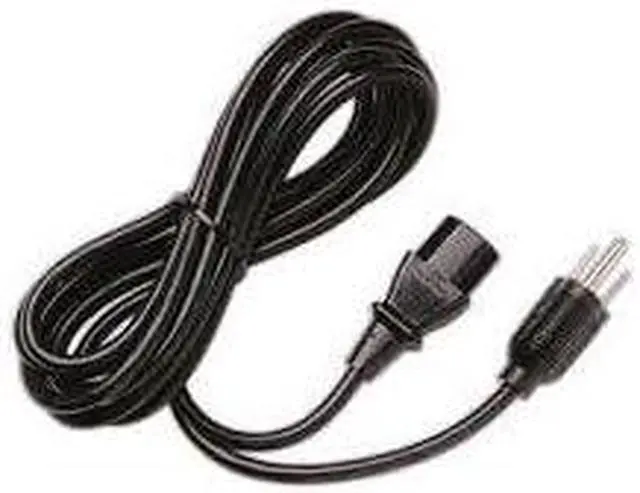

What's in the box: TP1803D power supply Power cord Test leads with alligator clips (28 inches long) User manual Tekpower is a registered trademark in the United States, any unauthorized use of our trademark is a violation of both Federal and State trademark laws and could subject to liability for damages and penalties. Your feedback is not only important to us but also beneficial to other customers, therefore we'd like to invite you to submit a review for this TP-1803D power supply, your input would be greatly appreciated.
Great Service and 90 Day Warranty
The Tekpower TP1803D variable DC power supply is a compact and affordable instrument that is suitable for both home and industrial use. This digital DC power supply has maximum output voltage of up to 18 volts and current up to 3 amps. It comes with rotary switches for setting up the voltage and current. With its reliability and versatility, it's an invaluable and indispensable tool for testing, science project and etc., ideal for labs, research institutes, R & D facilities.
Specifications:
Output DC Voltage: 0.0 - 18.0V
Output DC Current: 0.00 - 3.00 A
Input Voltage: 110V/AC, 60Hz
Voltage and Current adjustment
Voltage regulation: CV
Load regulation: CV
Ripple and noises: CV
Protection: High current limiting
Operating Temperature: 0 - 102 F (0 - 40 C), Relative
Humidity:
LCD Accuracy is within +/- 2.5%
Size: 9 ½ x 6 x 3 ¾ inches
Weight: approx. 7 lbs
What's in the box: TP1803D power supply Power cord Test leads with alligator clips (28 inches long) User manual Tekpower is a registered trademark in the United States, any unauthorized use of our trademark is a violation of both Federal and State trademark laws and could subject to liability for damages and penalties. Your feedback is not only important to us but also beneficial to other customers, therefore we'd like to invite you to submit a review for this TP-1803D power supply, your input would be greatly appreciated.
