10Pcs Miniature Electromagnetic Relay 24V Coil DC/AC; Signal Relay for PLC; HF41F/24-ZS 1NO 1NC 6Amp SPDT with Jumper, Separator, 24V Relay Din Rail, UL Certification
- Certifications Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power RelayThe thickness is only 0.24 "/6.3mm.
- Electromechanical RelaysRelay Coil Voltage: 24V AC/DC , Contact : 1 Form C(1NO 1NC); Number of Terminals : 5 Pin;; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied.Mechanical life: 10,000,000 Cycles, Electrical life: 300,000 Cycles.

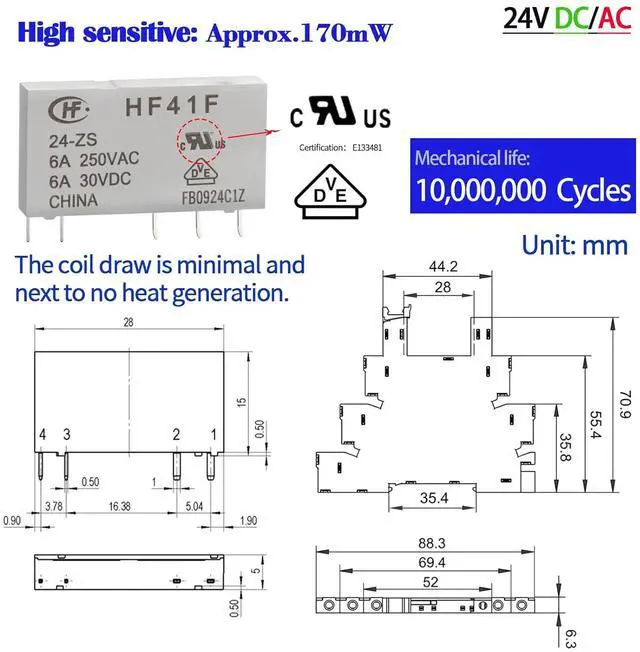

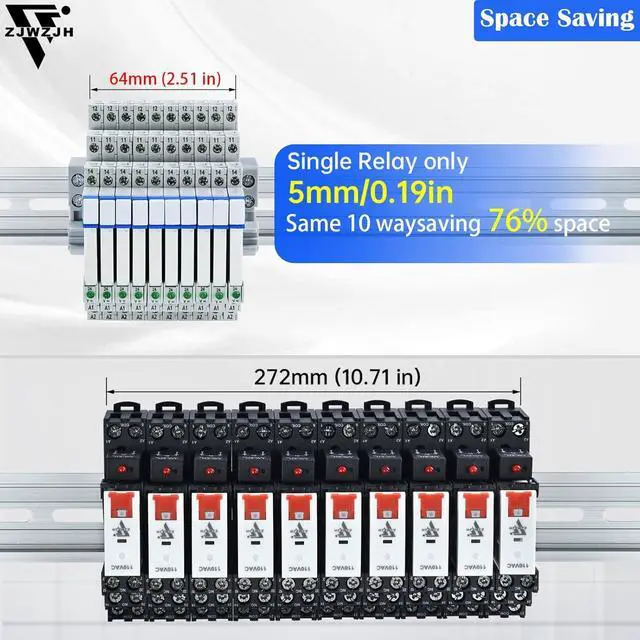

- DimensionRelay Model:HF41F/24-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W).
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

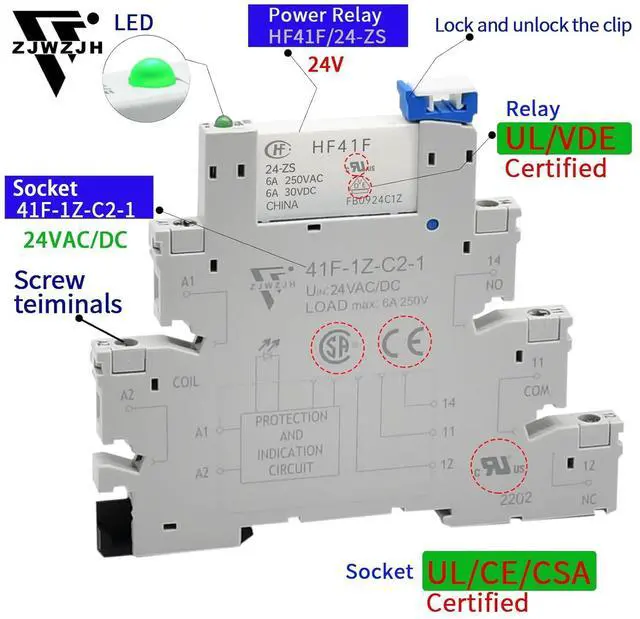

SocketSocket: Screw terminal, DIN rail mounting, with finger protection device.

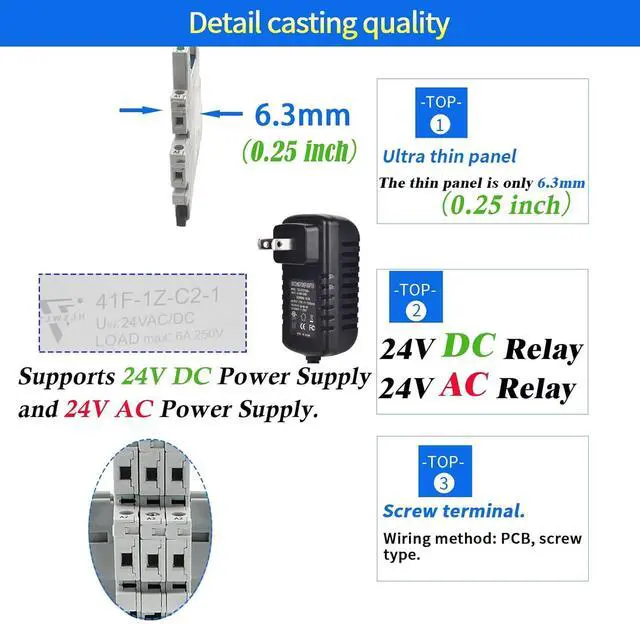

Relay Input voltage: (12~24)V AC/DC; Plug-and-play design allows the relay and base to be easily separated for convenient replacement, enhancing user-friendliness.

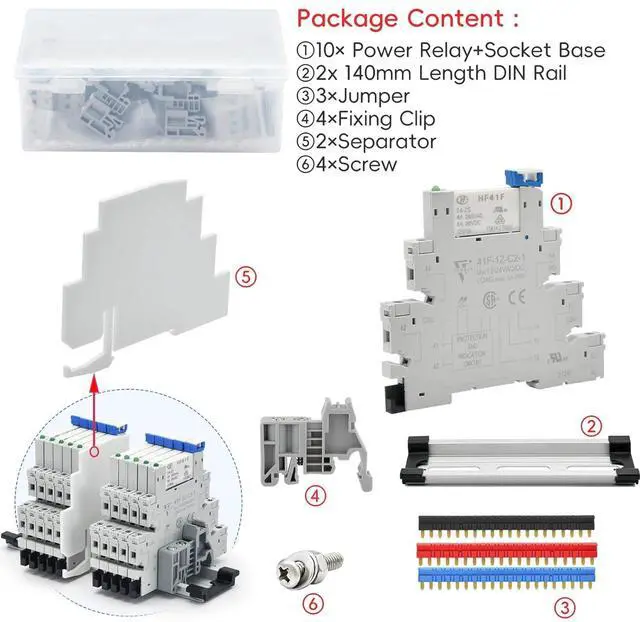

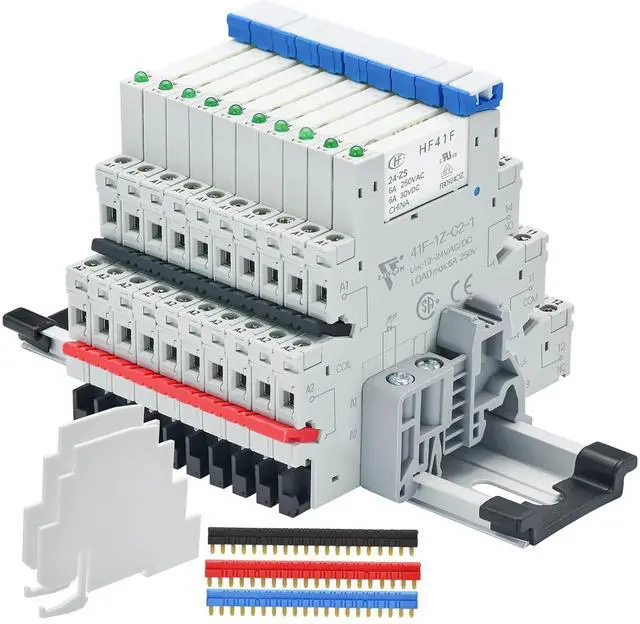

PackagePackage Content: 10× Power Relay; 10× Relay Socket Base; 2x 140mm Length DIN Rail; 3×Jumper; 4×Fixing Clip; 2×Separator; 4×Screw.
Ambient temperature: -40 ~ 70.
Relay Input voltage: (12~24)V AC/DC; Plug-and-play design allows the relay and base to be easily separated for convenient replacement, enhancing user-friendliness.
PackagePackage Content: 10× Power Relay; 10× Relay Socket Base; 2x 140mm Length DIN Rail; 3×Jumper; 4×Fixing Clip; 2×Separator; 4×Screw.
Ambient temperature: -40 ~ 70.
