Fuel Sender Unit Boat Fuel Tank Sending Unit Fuel Water Level Sensor Stainless Steel Fuel Sender and Fuel Gauge for Boat Car Truck RV (17"(432mm))

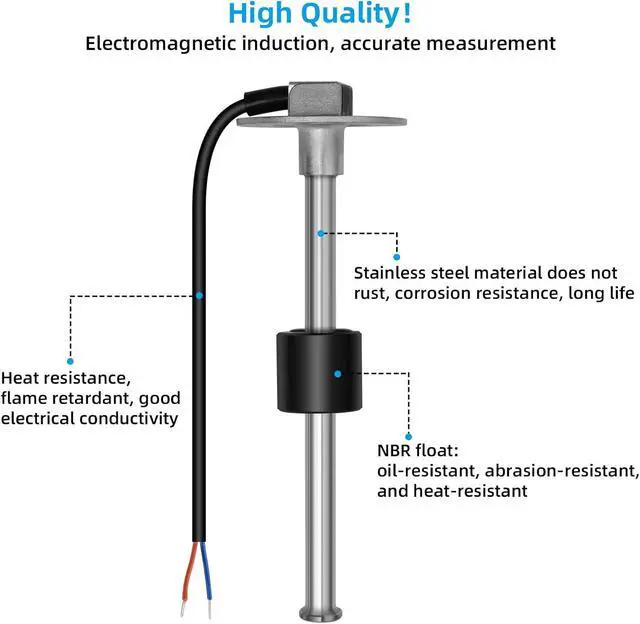

- [High Precision and Long Life]: The exterior is made of stainless steel, and the interior is controlled by high-quality reed switches. The sensor is corrosion-resistant, does not rust, has a long life, stable output signal, and accurate measurement. Suitable for gasoline, diesel, water, methanol, etc.
- [Easy to Read]: The fuel level gauge has 8 adjustable backlight colors, IP67 waterproof, stainless steel frame, anti-fog curved glass, easy to read (Empty-1/2-Full).

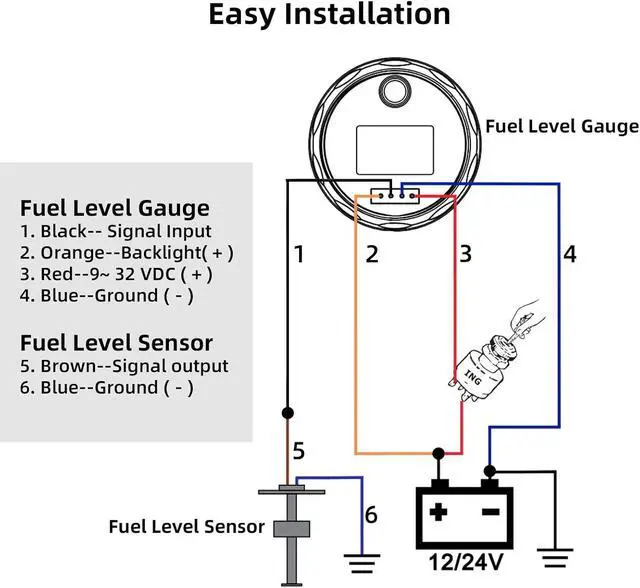

- [Easy Installation]: SAE 5 hole mounting pattern, NBR material gasket, good sealing performance, high oil resistance, with M5 5 screws, 10 quick wiring terminals, easy and quick installation by referring to the wiring diagram.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

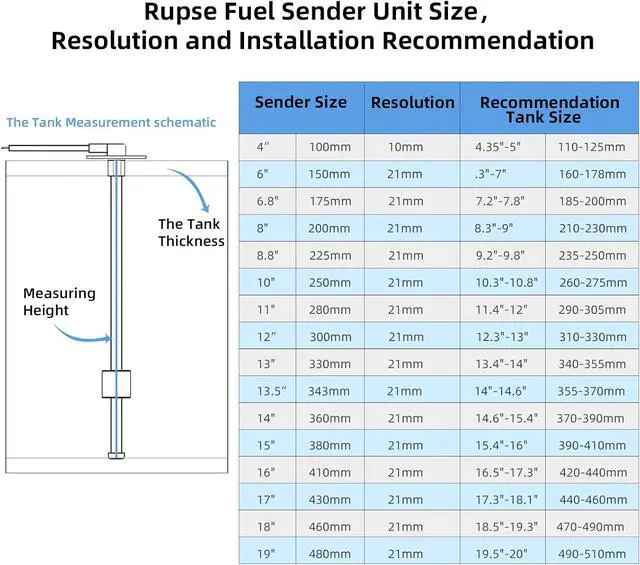

[Multi-Size]: Various sizes can be selected to meet different sizes of fuel tanks for Automobiles, Ships, Yachts, RV, Agricultural vehicles and Industrial equipment.
Fuel Sending Unit
Product Description
WIDE APPLICABILITY
This boat fuel gauge compatible with most American Standard (240 - 33 Ohm) sending units. Applicable for Cars, Trucks, Tractors, Vehicle Diesel to Match Fuel Sending Unit for Diesel Oil/ Gasoline Level Monitoring. High sensitivity and easy operation.

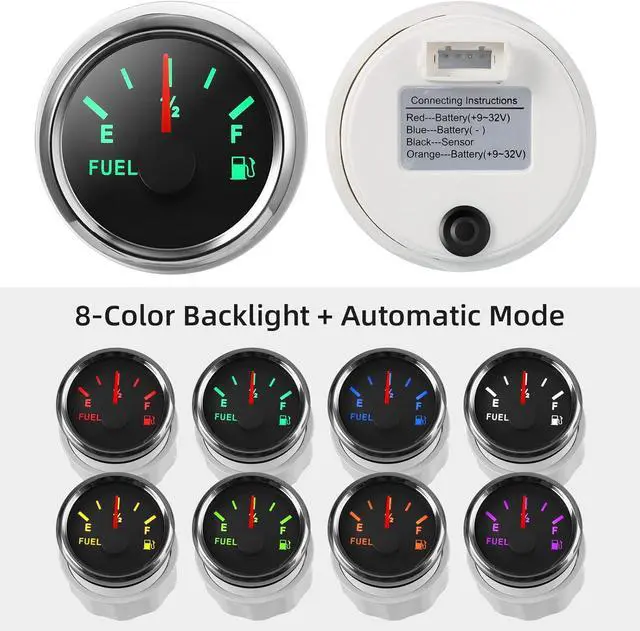

8 COLOR BACKLIGHT
Included Red (default) -Green-Blue-White-Yellow-Yellow-green-Orange-Purple-Auto mode, choose or match the color of the original meter at your will, add a unique glow to your equipment.
EASY TO INSTALL

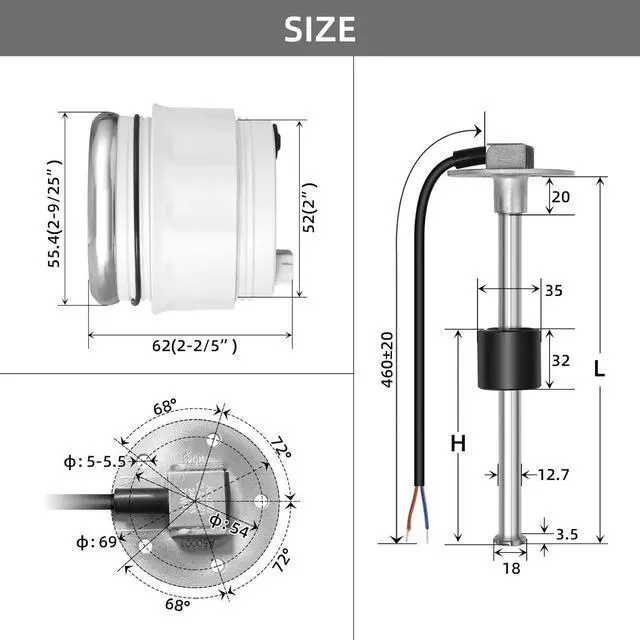

High sensitivity and easy operation. The diameter is 52mm 2'', indication
range: E-1/2-F, working
voltage: 9-32VDC (suitable for 12V-24V vehicle or engine), with wiring instructions.
QUALITY MOTOR
Use pure copper stepper motor, high precision, low power consumption, long life. It has good endurance and vibration resistance.
SUITABLE FOR ALL SENSORS
Five signals adjustable: Signal
Input: 0-190ohm, 0-180ohm, 10-180ohm, 240-33ohm, 240-30ohm, compatible with all sensors. No need to worry about the matching of Fuel level gauge and sensor.
WIDE APPLICATION
Our universal fuel gauge is the one compatible with almost any vehicle, it available for use in a boat, automobile, motorcycle, RV, or yacht.
Fuel Sending Unit
Product Description
WIDE APPLICABILITY
This boat fuel gauge compatible with most American Standard (240 - 33 Ohm) sending units. Applicable for Cars, Trucks, Tractors, Vehicle Diesel to Match Fuel Sending Unit for Diesel Oil/ Gasoline Level Monitoring. High sensitivity and easy operation.
8 COLOR BACKLIGHT
Included Red (default) -Green-Blue-White-Yellow-Yellow-green-Orange-Purple-Auto mode, choose or match the color of the original meter at your will, add a unique glow to your equipment.
EASY TO INSTALL
High sensitivity and easy operation. The diameter is 52mm 2'', indication
range: E-1/2-F, working
voltage: 9-32VDC (suitable for 12V-24V vehicle or engine), with wiring instructions.
QUALITY MOTOR
Use pure copper stepper motor, high precision, low power consumption, long life. It has good endurance and vibration resistance.
SUITABLE FOR ALL SENSORS
Five signals adjustable: Signal
Input: 0-190ohm, 0-180ohm, 10-180ohm, 240-33ohm, 240-30ohm, compatible with all sensors. No need to worry about the matching of Fuel level gauge and sensor.
WIDE APPLICATION
Our universal fuel gauge is the one compatible with almost any vehicle, it available for use in a boat, automobile, motorcycle, RV, or yacht.
