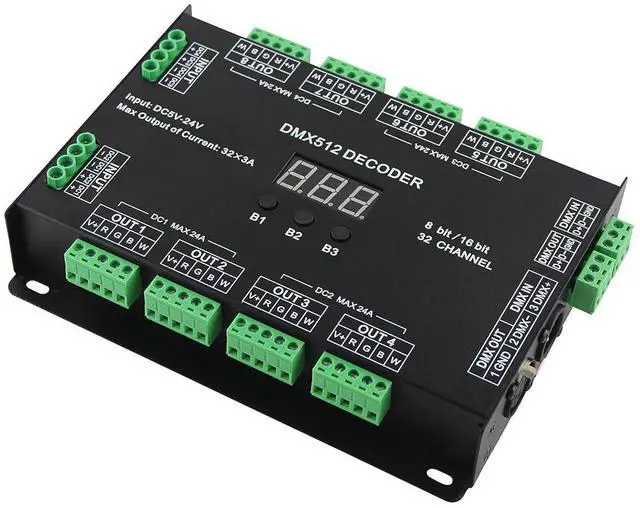

32 Channel 96A RGBW DMX 512 LED Decoder Controller DMX Dimmer DC5-24V RGBW RGB LED Light 8 Bit/16 Bit
- Automatically adapts to input voltages between DC5-24V. Power loss memory. Incorrect wiring protection at DMX port.
- Input standard DMX512 signal; 3-digit display shows DMX address.Incorrect wiring protection at DMX port.
- 32 channel outputs; linear dimming, flicker-free outputs.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DMX512 signal presence indicator. 14 color changing modes and 10 speeds in test mode.
Description
The 32CH RGBW DMX512 decoder converts a DMX512/1990 digital signal into PWM (Pulse Width Modulated) signals, controlled by a DMX512 console, DMX512 signal 8 bit, 16 bit optional. Featuring unique firmware, the decoder produces smooth and perfect fades.
Model: 32CH DMX512 Decoder
Input voltage: DC 5-24V
Max load current: 3A×32CH Max 96A
Max Output Power: 480W (5V) / 1152W (12V) / 2304W (24V)
Grey Scale: 8 bit or 16 bit levels
Input Signal: DMX512/1990
Output Signal: Constant Voltage PWM×32
Decoder Channel: 32CH RGBW
DMX512 socket: 3-pin XLR / terminal block
Dimension: 187×145×35mm
Weight (G.
W): 757g
Features:
1. Automatically adapts to input voltages between DC5 - 24V.
2. Input standard DMX512 signal; 3-digit display shows DMX address.
3. 32 channel outputs; linear dimming; flicker-free outputs.
4. 14 color changing modes and 10 speeds in test mode.
5. DMX512 signal presence indicator.
6. Power loss memory.
7. Incorrect wiring protection at DMX port.
8. The decoder can operate in DIM / CT / RGB / RGBW control modes.
Description
The 32CH RGBW DMX512 decoder converts a DMX512/1990 digital signal into PWM (Pulse Width Modulated) signals, controlled by a DMX512 console, DMX512 signal 8 bit, 16 bit optional. Featuring unique firmware, the decoder produces smooth and perfect fades.
Specifications
:Model: 32CH DMX512 Decoder
Input voltage: DC 5-24V
Max load current: 3A×32CH Max 96A
Max Output Power: 480W (5V) / 1152W (12V) / 2304W (24V)
Grey Scale: 8 bit or 16 bit levels
Input Signal: DMX512/1990
Output Signal: Constant Voltage PWM×32
Decoder Channel: 32CH RGBW
DMX512 socket: 3-pin XLR / terminal block
Dimension: 187×145×35mm
Weight (G.
W): 757g
Features:
1. Automatically adapts to input voltages between DC5 - 24V.
2. Input standard DMX512 signal; 3-digit display shows DMX address.
3. 32 channel outputs; linear dimming; flicker-free outputs.
4. 14 color changing modes and 10 speeds in test mode.
5. DMX512 signal presence indicator.
6. Power loss memory.
7. Incorrect wiring protection at DMX port.
8. The decoder can operate in DIM / CT / RGB / RGBW control modes.
