Matte White 20-Pack 3.28FT Pre-Drilled Clip Free LED Strip U Channel Diffuser, Tight and Flush Mounted Under Cabinet Tape Track Aluminum Low Profile with UV Resistance Milky Cover (20)
- Pre-Drilled Countersunk Hole (4 Hole/3.3FT) , Tight Fit and Flush Mounted ,Protect the Profile From Scratch By the Mounting Clips ,Easy Installation, Clean Outlook and Professional Extension
- Translucent Diffuser Does Not Only Protect The Exposed Strip From Dust And Moisture but Also Evening and Smooth out the Lights Well With 90% Transmittance Rate .The Cover is Protected by Removable Film Initially,It is UV Resistance And Anti Yellowing
- The Channel Is Powder Coated Matte White Which Is Better Integrated With White Walls , It Can Be Trimed to Required Length Easily by Hacksaw and Grinder,The Cover Can Be Cutted By Utility Knives And Scissors, 45 Degree Mitre Is Supposed For A 90 Degree Corner .
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Aluminum Track Is Designed To Hold The Strip Less Than 12.4 mm( 0.49 ) Wide, It Fit For a Majority of 5050 5630 2835 Steady color, RGB, RGBW and Programmable Tape (Not For Hule Plus)

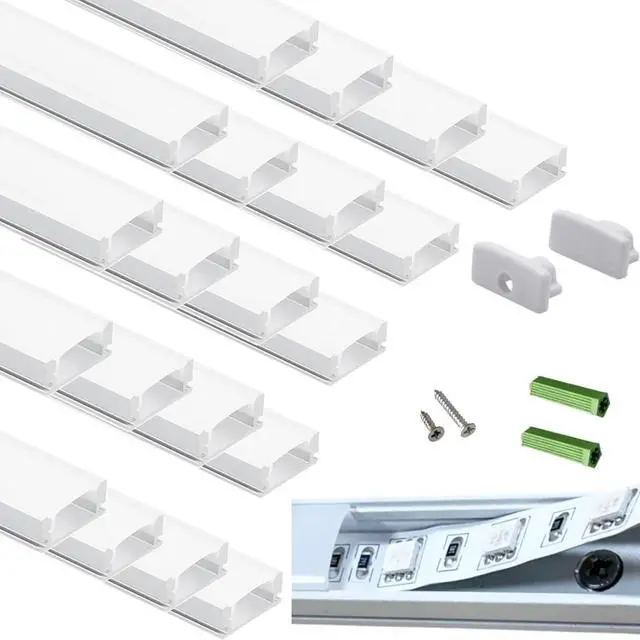

The Package Included Pre-Drilled Channel 3.28FTX 5, Milky PC Cover X5, M3X12 (Stainless Steel) /M3X20 ( Carbon Steel) / Wall Anchor X 20, End caps With Hole X5, End cap without Hole X5
3.28FT Pre-Drilled Countersunk Hole LED Strip White U Channel Diffuser THMOOTHER Is Specializing in LED Strip Channel Diffuser, THMOOTHER Channel, Smoother Light1. 4 /6 Countersunk Hole on Each Channel in 3.28FT / 6.56FT
2. M3 Screw Flush Mounted In The Channel Without Salient Point
3. Mounting Clips is not Needed, Avoid Scratchs by Clips on Channel.
4. Concealed Installation, More Professional and Better Outlook

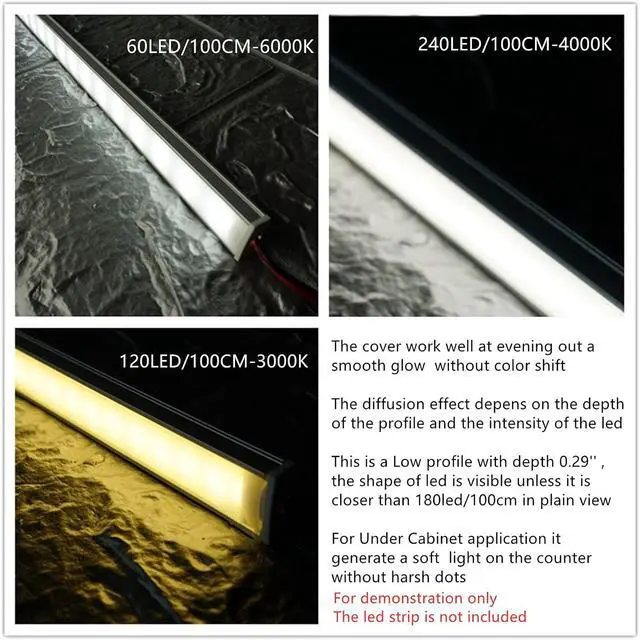

For Diffusion Effect, It depens on the intensity of the diode and the height of the Channel.
Since This is a Low Profile, It is Hard to Get a Spotless Or Neon Effect Unless the Intensity is 180 LED/M or More or With COB LED Strip
45 Degree Mitre Is Supposed For Corner Connection
Package

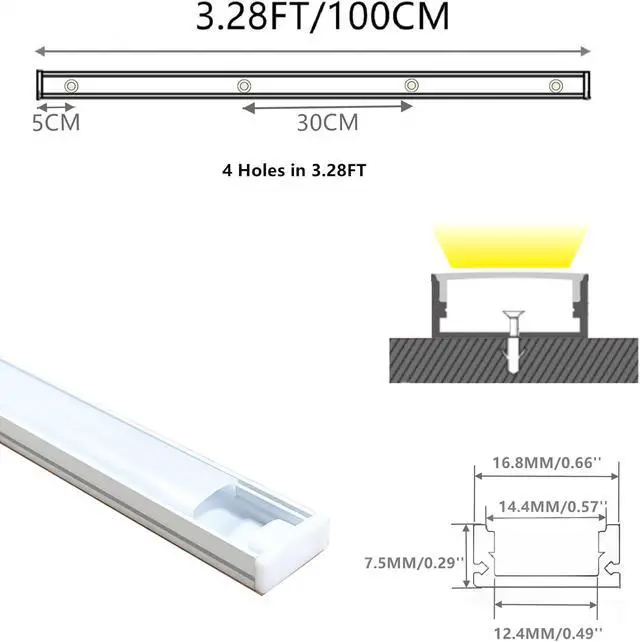

U Shape Matte White Channel With Milky Cover Width: 0.69 ''
Height: 0.28 ''
Fit For LED Strip Within 0.5 '' Width
Professional Housing and Heat Radiator for LED Strip Light

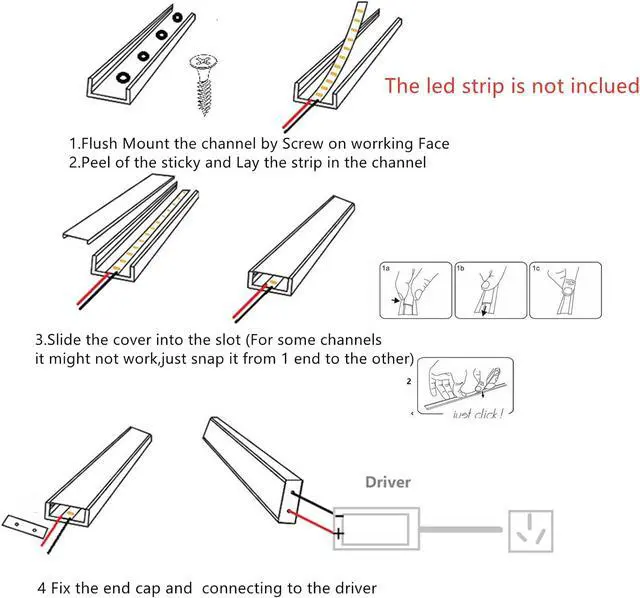

Steps To Install The Channel
1. Screw In the Channel On the Working Surface A Pilot Hole Is Suggest For Rigid Surface
Measure and Mark the Point for Screw Before the Installation

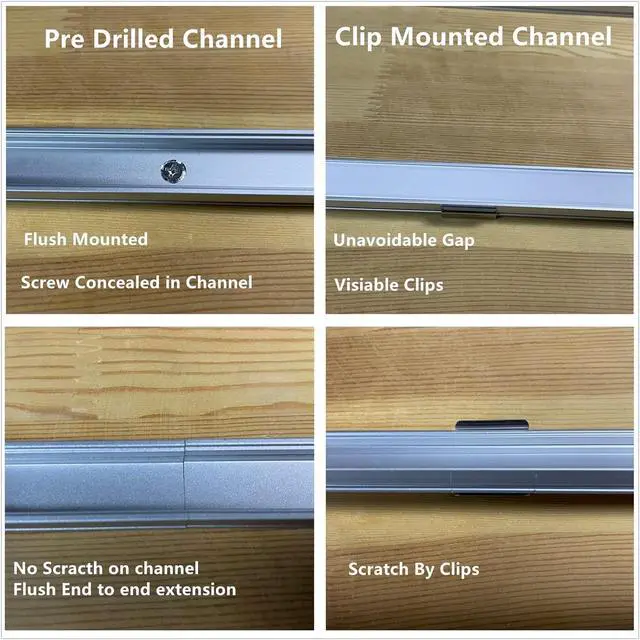

Pre Drilled Channel And Clips Channel Comparing Advanatge
1. Flush Mounted Without Gap by Clips
2. Concealed Installation System
3. Avoid Scratch
4. Flush End to End Extension
Shortage
The Strip Can Only be Installed When The Channel is Fixed
To Move the Channel, Need to Uncover The Diffuser And Move The Strip Firstly
The Package Included Pre-Drilled Channel 3.28FTX 5, Milky PC Cover X5, M3X12 (Stainless Steel) /M3X20 ( Carbon Steel) / Wall Anchor X 20, End caps With Hole X5, End cap without Hole X5
3.28FT Pre-Drilled Countersunk Hole LED Strip White U Channel Diffuser THMOOTHER Is Specializing in LED Strip Channel Diffuser, THMOOTHER Channel, Smoother Light1. 4 /6 Countersunk Hole on Each Channel in 3.28FT / 6.56FT
2. M3 Screw Flush Mounted In The Channel Without Salient Point
3. Mounting Clips is not Needed, Avoid Scratchs by Clips on Channel.
4. Concealed Installation, More Professional and Better Outlook
For Diffusion Effect, It depens on the intensity of the diode and the height of the Channel.
Since This is a Low Profile, It is Hard to Get a Spotless Or Neon Effect Unless the Intensity is 180 LED/M or More or With COB LED Strip
45 Degree Mitre Is Supposed For Corner Connection
Package
Details
U Shape Matte White Channel With Milky Cover Width: 0.69 ''
Height: 0.28 ''
Fit For LED Strip Within 0.5 '' Width
Professional Housing and Heat Radiator for LED Strip Light
Steps To Install The Channel
1. Screw In the Channel On the Working Surface A Pilot Hole Is Suggest For Rigid Surface
Measure and Mark the Point for Screw Before the Installation
Pre Drilled Channel And Clips Channel Comparing Advanatge
1. Flush Mounted Without Gap by Clips
2. Concealed Installation System
3. Avoid Scratch
4. Flush End to End Extension
Shortage
The Strip Can Only be Installed When The Channel is Fixed
To Move the Channel, Need to Uncover The Diffuser And Move The Strip Firstly
