UV Resistance 6.56FT V Shape LED Strip Black Channel Diffuser,10-Pack Aluminum Profiles with Frosted Cover and Corner Connector, Tape Track for Cabinet Stairs Wall Outdoor (6.56FT, 10)
- Thickening Translucent Cover with UV Protection Material Result a Stable And Anti Yellowing Performance in Outdoor Environment With IP Rated Strip, the Diffuser Even And Smooth Out The Lights Well Without Color Shift, 90% Transmittance Rate
- Stainless Steel Mounting Bracket and Screw ,4 Pieces Per Channel,Enhance The Installation Reliability . 90 Degree Corner Connnector Offers More Convenience For Turning
- Anodized Black Alu Channel Can Be Trimmed To Required Length Easily By Hacksaw Or Grinder,The Cover Can Be Cut By Utility Knives And Scissors,The Cover is Protected By Film Initially
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Interior Angle Profile Is Designed To Hold Strip Less Than 0.5 ( 12.3MM ) Wide, It Fit For a Majority Of 5050 5630 2835 Single Color, Tunable White, RGB and RGBW LED Strip In Ambient, Accent, Bias, and Task lighting. (Not for Hue 2ND)

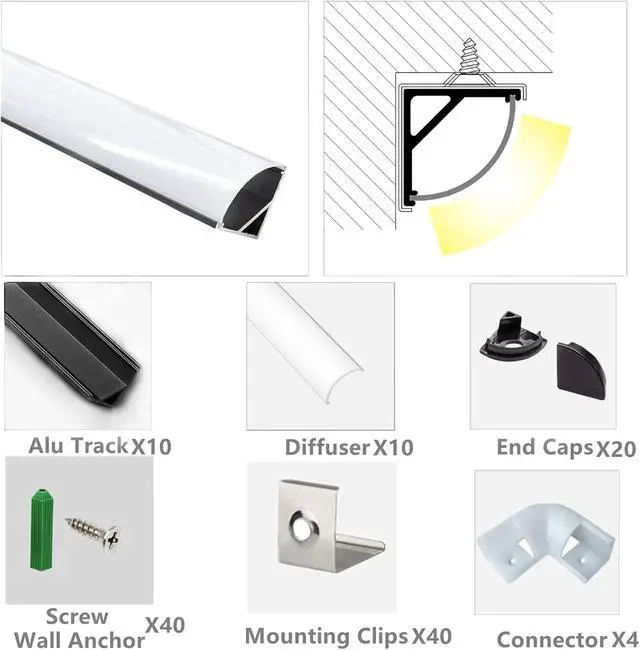

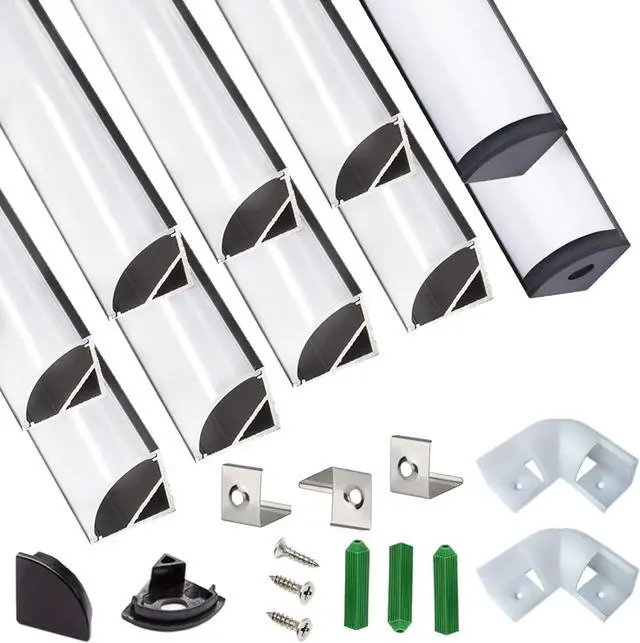

The Package Include V Shape Channel 6.56FTX 10, Milky PC Cover X10, Mounting Clips X40, Stainless Steel Countersunk ScrewX40, End Caps With Hole X20, End Cap Without Hole X2090 Degree Corner ConnectorX4

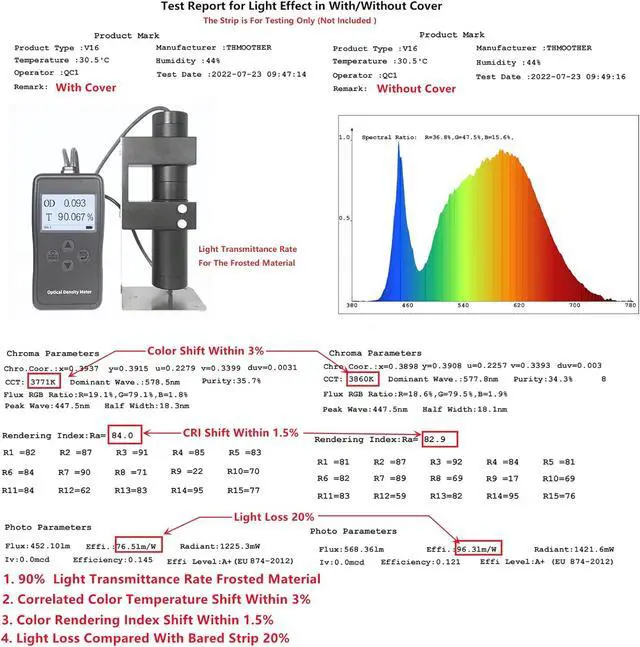

The Testing Report For Light Effect With Or Without Frosted Cover The UV Resistance Milky Cover With a Good Balance Between Light Transmittance and Aesthetics 1. 90% Light Transmittance Rate For The PC Material
2. Correlated Color Temperature Shift Within 3%
3. Color Redering Index Shift Within 1.5 %
4. Light Loss Compared With Bared Strip Around 20%

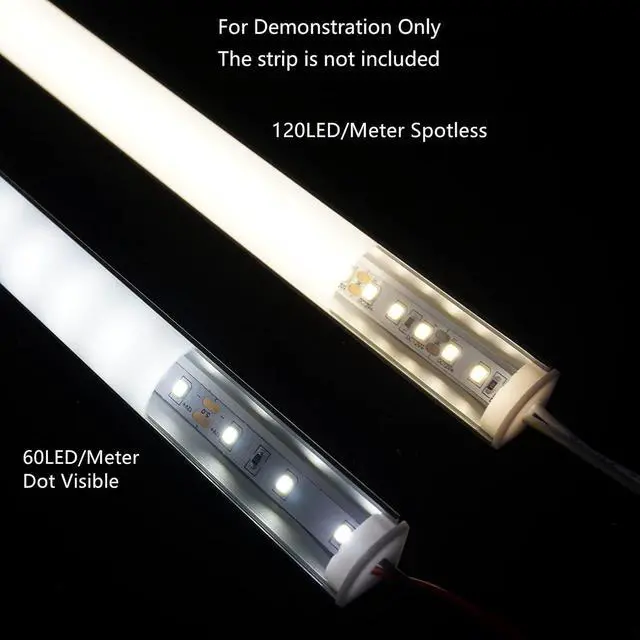

Diffusion Effect For The Strip With Channel and Diffuser THMOOTHER is Specializing In LED Strip Channel Diffuser. With Our Product, Your Strip Light Will be Smoother. When It Comes to Spotty/Dotty LED Effect, People Often Think a Diffuser Will Solve this Outright. But That Is Not True, Diffusion Effect Depends
on 2 Things:
1. The Number Of LEDs Per Meter
2. The Depth of The Profile
Hence When Using LED Tapes Such As Those Which Only Have 30 LEDs Per Meter, No Amount Of Diffuser is Going To Make It Looks Seamless. If This Effect is Desired, We Recommend High Intensity Diode Like 120 LED Per Meter Or More For a Spotless Constant Glow. Powerful LED Strip Or RGBIC, RGBW Tape Will Also Have A Better Diffusion Effect.

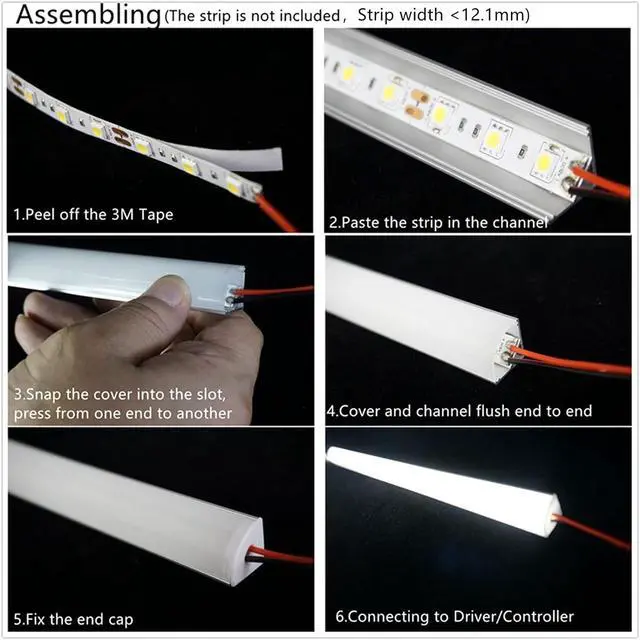

LED Strip Channel V Shape Installation and ConnectionThe Channel Fit For LED Strip Light Less Than 1/2 Inch Wide Which Include Single color, Tunable white, RGB and RGBW Programmable LED strip lightsIt can be Installed By 3
Ways:

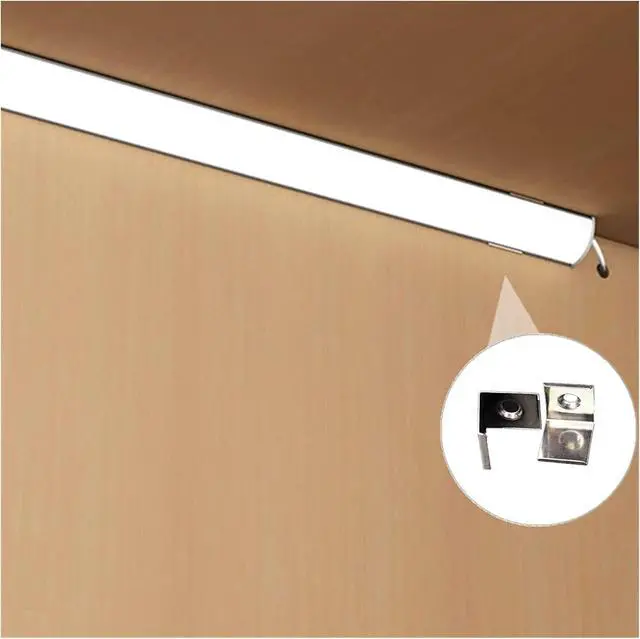

1. Mounting Clips -The Bracket is Fixed By Screw and Can Also Be Used as a Connector Between Two Aluminum Profiles For Extension
2. Double Sided Tape - The Double Sided Tape Is Used For Suface Mounted ( Not Included )
3. Drill Hole On Channel And Mounting By Screw -Need to Be Drilled By Customer
For Cornner Connection
The Channel Can be Connected By Corner Connector, It Also Can Be 45 Degree Mitre
The Package Include V Shape Channel 6.56FTX 10, Milky PC Cover X10, Mounting Clips X40, Stainless Steel Countersunk ScrewX40, End Caps With Hole X20, End Cap Without Hole X2090 Degree Corner ConnectorX4
The Testing Report For Light Effect With Or Without Frosted Cover The UV Resistance Milky Cover With a Good Balance Between Light Transmittance and Aesthetics 1. 90% Light Transmittance Rate For The PC Material
2. Correlated Color Temperature Shift Within 3%
3. Color Redering Index Shift Within 1.5 %
4. Light Loss Compared With Bared Strip Around 20%
Diffusion Effect For The Strip With Channel and Diffuser THMOOTHER is Specializing In LED Strip Channel Diffuser. With Our Product, Your Strip Light Will be Smoother. When It Comes to Spotty/Dotty LED Effect, People Often Think a Diffuser Will Solve this Outright. But That Is Not True, Diffusion Effect Depends
on 2 Things:
1. The Number Of LEDs Per Meter
2. The Depth of The Profile
Hence When Using LED Tapes Such As Those Which Only Have 30 LEDs Per Meter, No Amount Of Diffuser is Going To Make It Looks Seamless. If This Effect is Desired, We Recommend High Intensity Diode Like 120 LED Per Meter Or More For a Spotless Constant Glow. Powerful LED Strip Or RGBIC, RGBW Tape Will Also Have A Better Diffusion Effect.
LED Strip Channel V Shape Installation and ConnectionThe Channel Fit For LED Strip Light Less Than 1/2 Inch Wide Which Include Single color, Tunable white, RGB and RGBW Programmable LED strip lightsIt can be Installed By 3
Ways:
1. Mounting Clips -The Bracket is Fixed By Screw and Can Also Be Used as a Connector Between Two Aluminum Profiles For Extension
2. Double Sided Tape - The Double Sided Tape Is Used For Suface Mounted ( Not Included )
3. Drill Hole On Channel And Mounting By Screw -Need to Be Drilled By Customer
For Cornner Connection
The Channel Can be Connected By Corner Connector, It Also Can Be 45 Degree Mitre
