AT312G Oscilloscope Multimeter 3 in 1 Handheld Oscilloscope with 12MHz Bandwidth 50MSa/s Sampling Rate Built-in Generator Voltage Tester Multimeter Function
- Detection Range: DC Voltage: 0 ~ 1000V, AC Voltage: 0 ~ 750V, DC/AC Current: 0~10A, Resistance: 0 ~ 60M, Capacitance: 10nF ~ 100mF, Frequency: 1 ~ 20MHZ, Diode / Continuity open circuit voltage 2.8V, judgement resistance 50, Fuse specification: 750mA/250V ,10A/250V

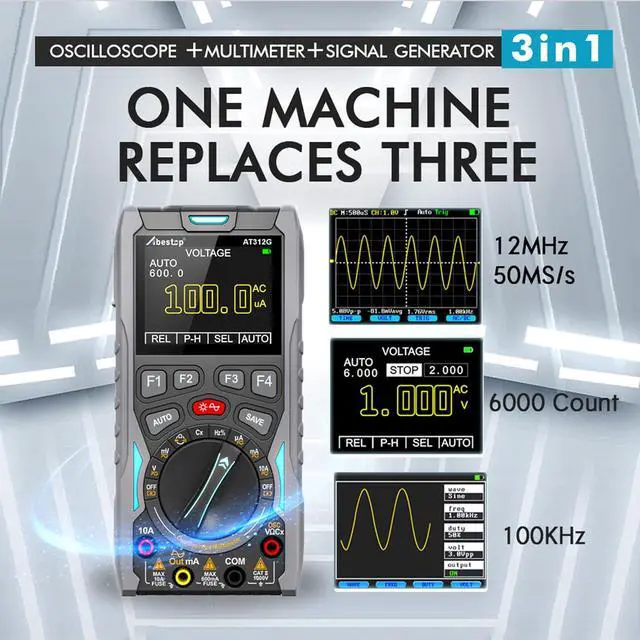

- 3 in 1: Built in 12MHz bandwidth oscilloscope, 6,000 counts digital multimeter and waveform generator. Lightweight (device: about 260g), 240 x320 color screen and built-in battery. It is a practical & portable oscilloscope multimeter
- Generator: Three waveform output function: sine wave(100HZ~100KHZ), triangle wave(100HZ~50KHZ) and square wave(100HZ~20KHZ), can adjust frequency, duty and volt parameter. Support automatic measurement function: Vp-p, Vavg, Vrms, Hz
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Function: One key to see the wave of voltage gear, there are three waveform scanning modes such as automatic / conal / single. Data waveform hold function during measurement, 100 sets of data and 10 waveforms can be stored. Automatic/manual range switching, displaying real-time data and stored data on the same screen
Widely use: This AT312G is a cost-effective handheld oscilloscope multimeter with generator, applicable for many fields, such as primary users, DIY application, home appliance repair, car maintenance, measuring electricity, experimental teaching, etc
Widely use: This AT312G is a cost-effective handheld oscilloscope multimeter with generator, applicable for many fields, such as primary users, DIY application, home appliance repair, car maintenance, measuring electricity, experimental teaching, etc
