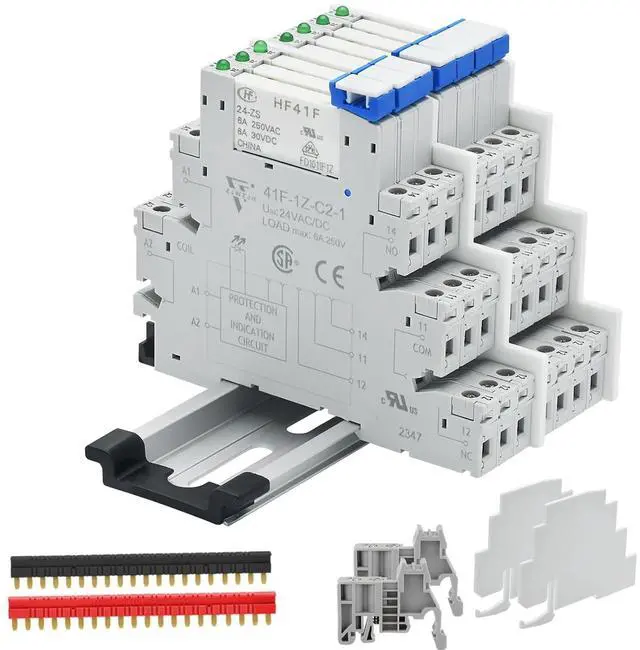

(8 Pcs) 24V Relay Din Rail; Miniature Power Relay; Silm; Signal Relay for PLC; 24VDC and 24VAC Both; 5 Pin SPDT with LED Indicator, Socket Base; Max 6A 250VAC

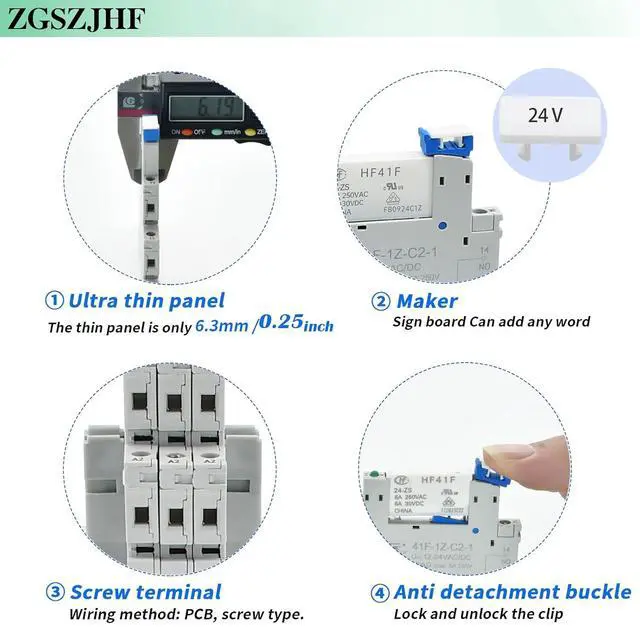

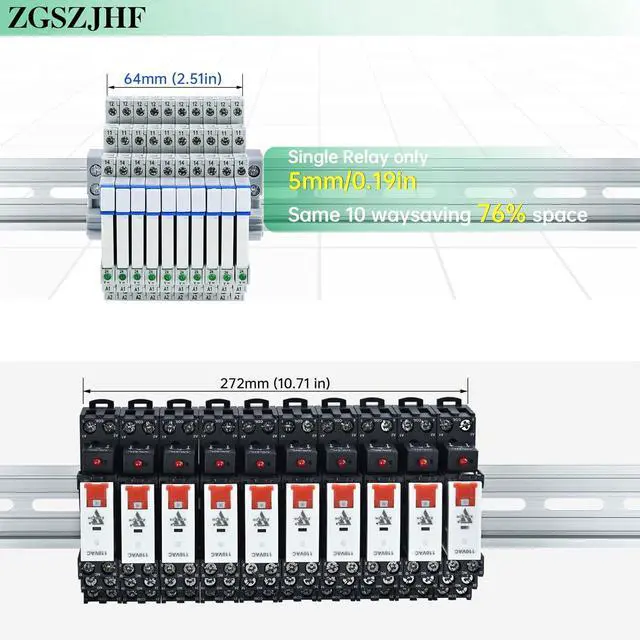

- Relay and Socket through UL Certification, Product Name:Subminiature Power RelayThe thickness is only 0.25inch /6.2mm. Easy to install, screw teminal.
- ATTENTION: Relay Coil Voltage is 24V DC relay or 24V AC relay, Contact : SPDT (1NO+1NC); Number of Terminals : 5 Pin; Contact Rating: 6A 250VAC / 30VDC, Construction: Plac seaied. Mechanical life: 10,000,000 Cycles.
- Socket: Screw terminal, DIN rail mounting, with finger protection device. Relay Input voltage: (24)V AC/DC; Plug-and-play design allows the relay and base to be easily separated for convenient replacement,enhancing user-friendliness.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

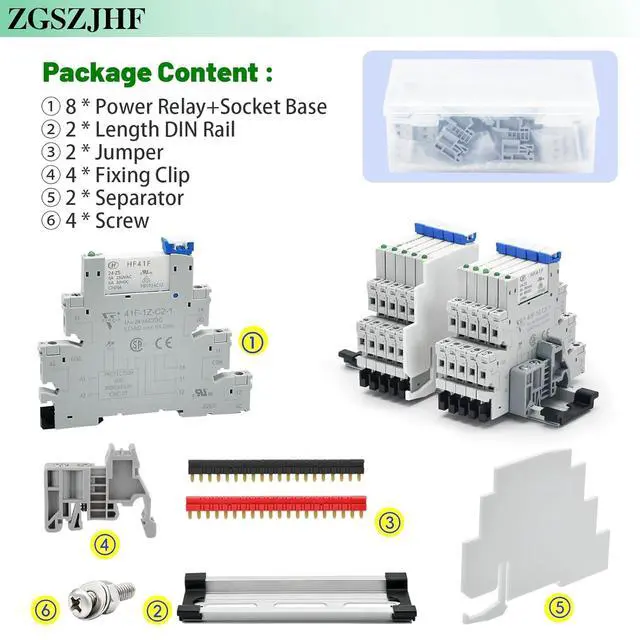

Package Content: 8* Relay; 8* Socket Base; 2* 140mm Length DIN Rail; 3* Jumper; 4* Fixing Clip; 2* Separator; 4* Screw.
Ambient temperature: -40 ~ 70.

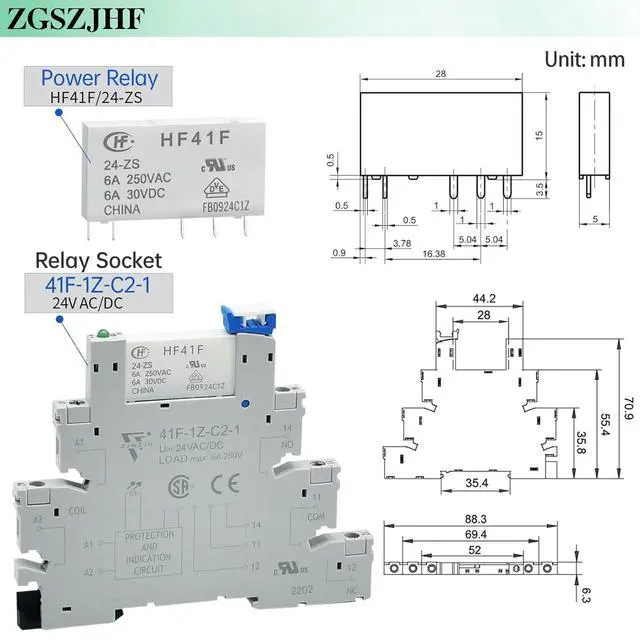

Relay Model: HF41F/24-ZS, Relay Slim size (width 5mm), Outline
size: 28×5×15mm;
Socket Model: 41F-1Z-C2-1, Size: 70.9 x 88.3 x 6.3 mm / 2.798" x 3.48" x 0.25" (H*L*W).
Package include:
8 Pcs Power Relay, 8 Pcs Socket Base
Ambient temperature: -40 ~ 70.
Relay Model: HF41F/24-ZS, Relay Slim size (width 5mm), Outline
size: 28×5×15mm;
Socket Model: 41F-1Z-C2-1, Size: 70.9 x 88.3 x 6.3 mm / 2.798" x 3.48" x 0.25" (H*L*W).
Package include:
8 Pcs Power Relay, 8 Pcs Socket Base
