UL Listed 6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V-120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification

Package: 6 Pcs Power Relay ,6 Pcs Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times
The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, sg conductivity and high current carrying capacity,



Package include :

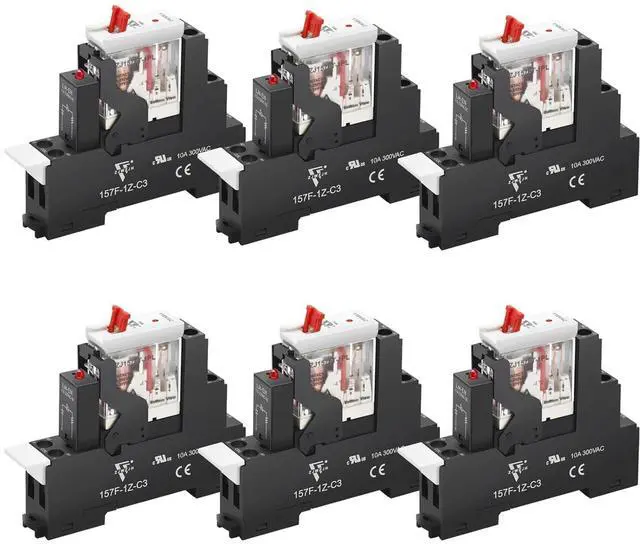

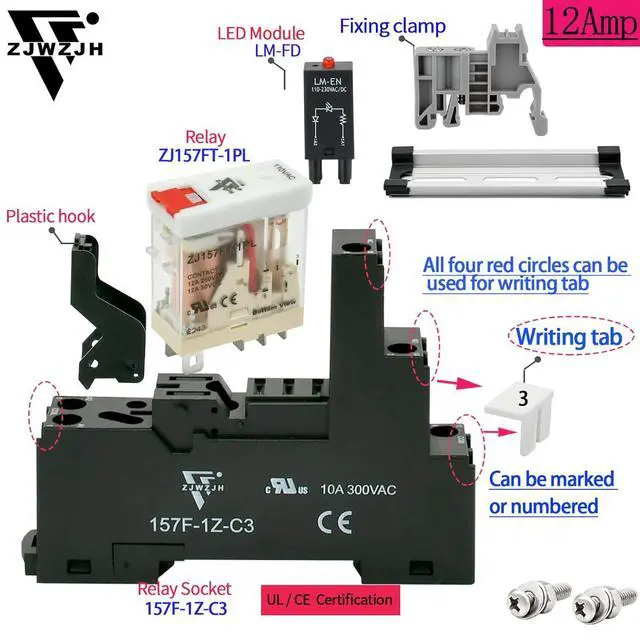

Package Content : 6 x Electromagnetic Relay, 6 x Socket, 2 x Fixing clamp , 1 x DIN Rail, 4 x Screws.
Relay Features
1.Small volume, 38.8*12.6*30.4mm, Easy installation
2.Get an electric shock load big: 12A
3.[Test key] can be used to manually adjust the instantaneous change of contact state.
4.[Frosted shell] The relay adopts a frosted upgraded shell with a toothed structure at the top to increase friction and facilitate plugging.
5.[See for safe use of electricity] LED indicator, red represents AC, green represents DC.
6.[High quality materials] The relay is made of high quality materials with high sensitivity, sg conductivity, high current carrying capacity and stable overall performance.

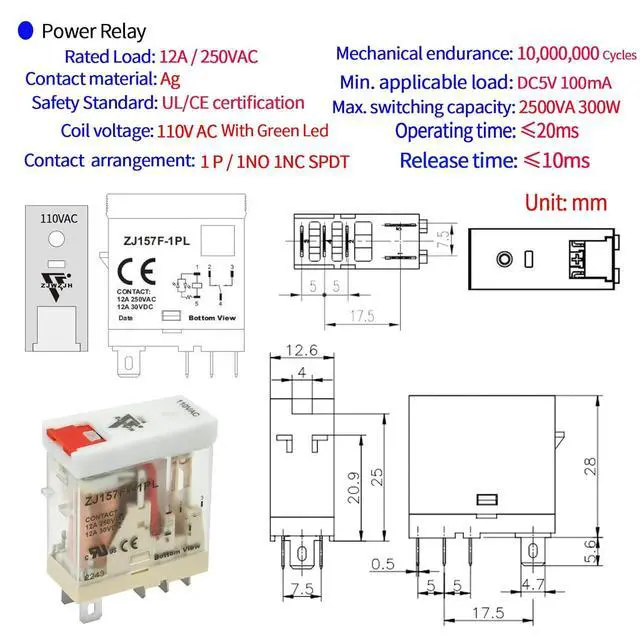

Contact Data
Rated Load:1NO 1NC SPDT,12A 250VAC /12A 30VDC
Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times
Rated carry current:8 Amps
Max. contact voltage:AC250V,DC30V
Max. contact current:12A
Max. contact voltage:AC250V,DC30V
Max. contact current:12A
Max. switching capacity: 1250VA 150W
Characterics
Operating time 20ms
Release time 10ms
Insulation resistance 1000m 500VDC)
Ambient operating temperature:-40+70
Weight: 123g
Ambientl humidity:5%85%RH
