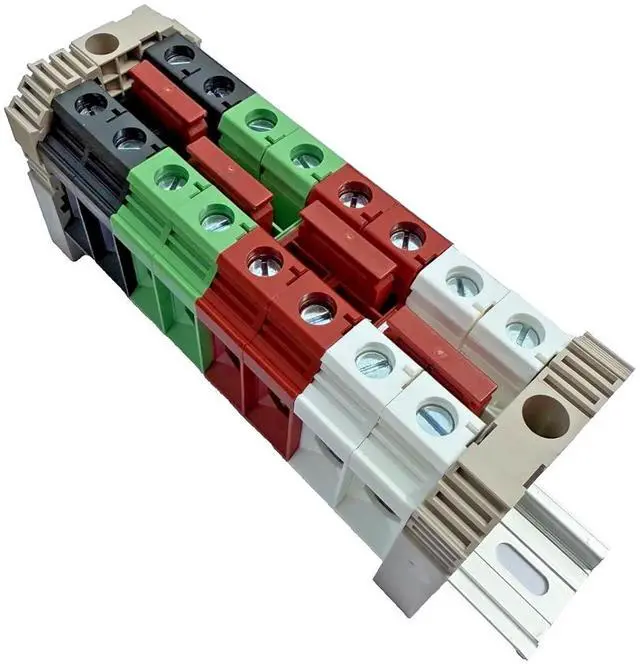

Main image of Power Distribution UL Dinkle Parallel Assembly White Red Green Black with Jumpers DIN Rail Terminal Blocks L1 L2 N GND (150 Amp)

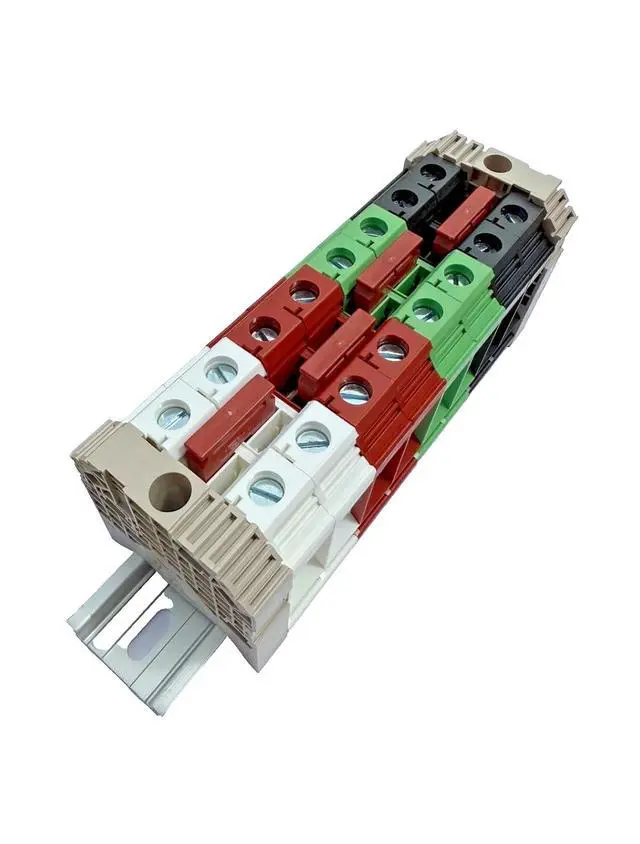

Alt view image 2 of 2 - Power Distribution UL Dinkle Parallel Assembly White Red Green Black with Jumpers DIN Rail Terminal Blocks L1 L2 N GND (150 Amp)

Shop All DIVI Products | Visit Group Can Trading Limited Store

Power Distribution UL Dinkle Parallel Assembly White Red Green Black with Jumpers DIN Rail Terminal Blocks L1 L2 N GND (150 Amp)

Made in USA
Parallel Assembly for Power Distribution or Combining
UL 600V Rating

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

UL 1/0-12 AWG Rating
UL 150A Rating
Each color is in common
4 wire connections per color

Technical Data (UL) Rated Voltage: 600V
Rate Current: 150A Conductor Cross-section, Solid
(AWG): 12-1/0 Conductor Cross-section, Flexible
(AWG): 12-1/0
Rated Impulse Withstand Voltage: 8KV
Torque (N-m): 3.5
Screw: M6
Wire Strip Length: 14-18mm
Insulating Material: PA
TxHxW (mm): 16 x 60.3 x 56.4 (Individual
Blocks) DIN Rail (mm): 35
Jumper/Bridge: Press-fit/Insertion This assembly includes 2 DK35N-WE Dinkle terminal blocks, 2 DK35N-RD Dinkle terminal blocks, 2 DK35N-GN Dinkle terminal blocks, 2 DK35N-BK Dinkle terminal blocks, 2 SS6 end brackets, and 4 DSS35N-02PN press-fit jumpers, all mounted on a 8" piece of aluminum RoHS rail. There are 4 wire connections per color.
