Thermal Imaging Camera 240 x 240 Resolution Handheld Infrared IR Camera, 15 Thermal Palettes with 320 x 240 Full-Viewing TFT Display for Home Inspection HVAC Heat Pump Circuit Break, -4~1022

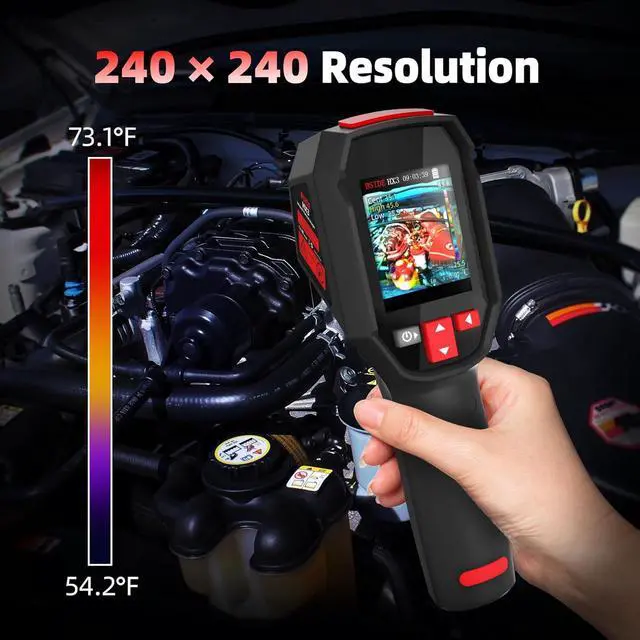

- [240 x 240 Resolution]: Handheld thermal imaging camera features 240 x 240 resolution, which could h you detect potential problems early and diagnose problems reliably.

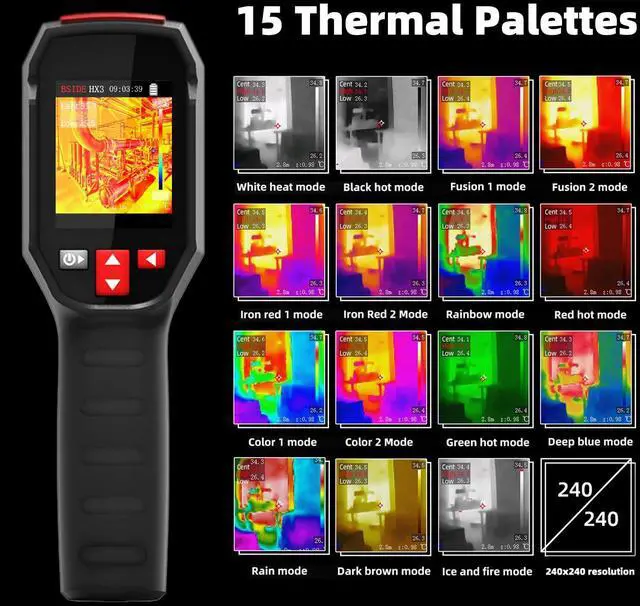

- [15 Thermal Palettes]: Industrial IR camera has 15 thermal palettes for choice: white hot, black hot, fusion 1, rainbow, fusion 2, iron red 1, iron red 2, dark brown, color 1, color 2, ice fire, rain, green hot, red hot, dark blue.
- [Full-Viewing TFT LCD]: HX3 infrared camera equipped with 2.4 inch 320 x 240 full-viewing color screen, which provides you with best reading enjoyment, you could get the clear test results at wide angle.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
[Accurate
Measurement]: Thermal imaging camera enables a refresh rate of 25 Hz and a wide temperature range from -20 to 550(-4 to 1022).
[Efficient Data Storage and Export]: The infrared imager can be connected to computer via USB for further analysis. The memory card can hold more than 30, 000 images.

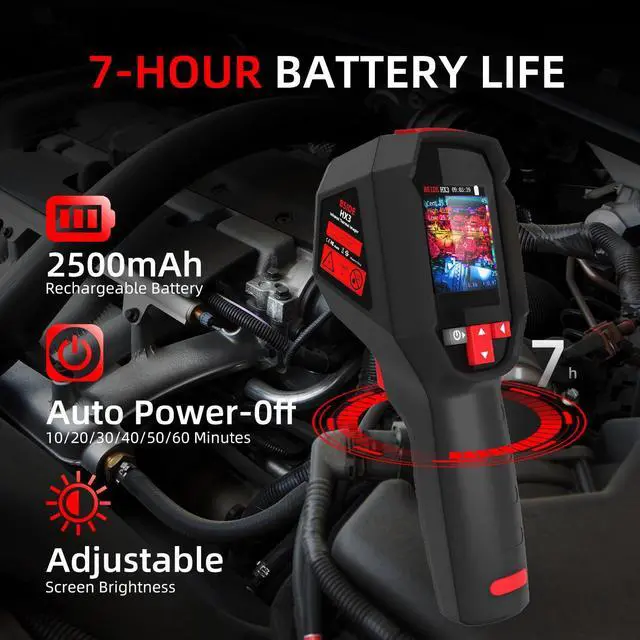

[Super Battery Life]: IR laser imager comes with a 2500mAh rechargeable battery & charging cable, ensuring that you never have to worry about running out of power during your measurement.

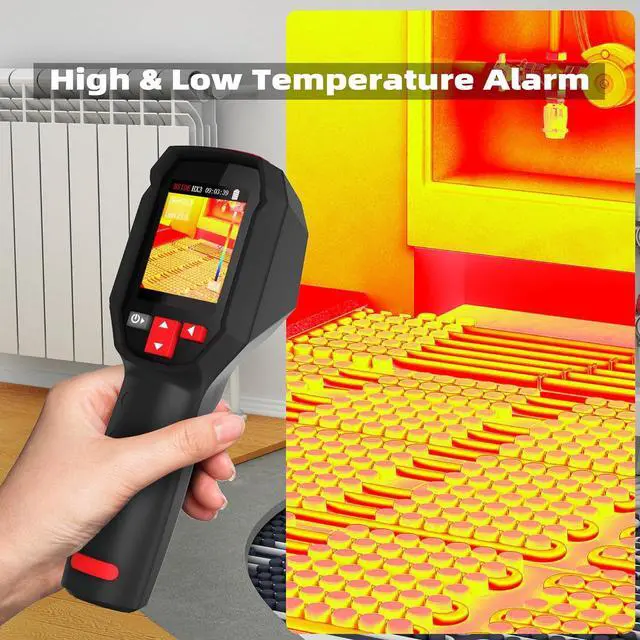

[High & Low Temperature Alarm]: The Infrared camera with high and low temperature alarm functions, the camera will give out alarm when the temp exceed or under the setting data.
Features:
Handheld thermal imaging camera
240 x 240 resolution thermal imaging camera
320 x 240 screen display resolution infrared camera

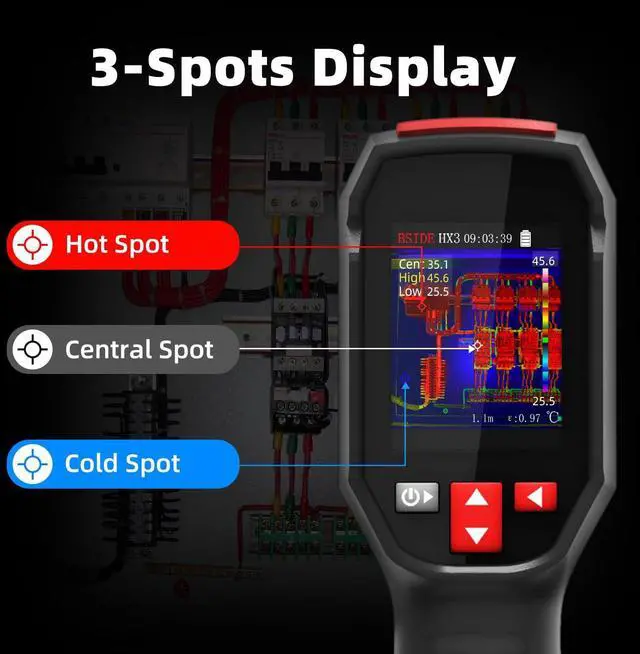

Display hot, cold and central spots temperature on the screen
The emissivity of infrared imager camera is adjustable
Rechargeable portable infrared camera with 15 thermal palettes
Tested data can be exported to your computer for analyzed
for home inspection, hvac electrical plumbing, boiler inspection
Specification:
Display Size: 2.4 Inch TFT LCD
IR Resolution: 240 x 240
Screen Resolution: 320 x 240
Angle of View (FOV): 50.0 ° (H) x 50.0 ° (V) / 72.1 ° (D)
Spatial Resolution (IFOV): 8.89 mrad
Temperature Range: -20-550(-4-1022)
Thermal sensitivity/NETD: Less 60mk
Refresh Rate: 25Hz
Distance Settings: 0.3 -3 m
Emissivity: 0.01 -1
Thermal Palettes: 15
Waterproof Level: IP54
Number of storage image: 30000
Power: 2500mAh rechargeable battery (built-in)
Size: 193.4 * 59.4 * 77.4 mm
Weight: 277g
Package Includes:
1 x Thermal Imaging Camera
1 x Charging Cable
1 x Carrying Case
1 x User Manual
Measurement]: Thermal imaging camera enables a refresh rate of 25 Hz and a wide temperature range from -20 to 550(-4 to 1022).
[Efficient Data Storage and Export]: The infrared imager can be connected to computer via USB for further analysis. The memory card can hold more than 30, 000 images.
[Super Battery Life]: IR laser imager comes with a 2500mAh rechargeable battery & charging cable, ensuring that you never have to worry about running out of power during your measurement.
[High & Low Temperature Alarm]: The Infrared camera with high and low temperature alarm functions, the camera will give out alarm when the temp exceed or under the setting data.
Features:
Handheld thermal imaging camera
240 x 240 resolution thermal imaging camera
320 x 240 screen display resolution infrared camera
Display hot, cold and central spots temperature on the screen
The emissivity of infrared imager camera is adjustable
Rechargeable portable infrared camera with 15 thermal palettes
Tested data can be exported to your computer for analyzed
for home inspection, hvac electrical plumbing, boiler inspection
Specification:
Display Size: 2.4 Inch TFT LCD
IR Resolution: 240 x 240
Screen Resolution: 320 x 240
Angle of View (FOV): 50.0 ° (H) x 50.0 ° (V) / 72.1 ° (D)
Spatial Resolution (IFOV): 8.89 mrad
Temperature Range: -20-550(-4-1022)
Thermal sensitivity/NETD: Less 60mk
Refresh Rate: 25Hz
Distance Settings: 0.3 -3 m
Emissivity: 0.01 -1
Thermal Palettes: 15
Waterproof Level: IP54
Number of storage image: 30000
Power: 2500mAh rechargeable battery (built-in)
Size: 193.4 * 59.4 * 77.4 mm
Weight: 277g
Package Includes:
1 x Thermal Imaging Camera
1 x Charging Cable
1 x Carrying Case
1 x User Manual
