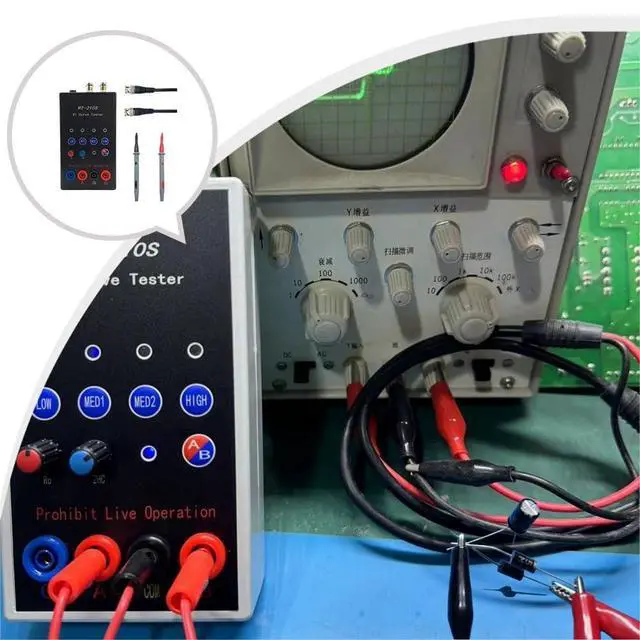

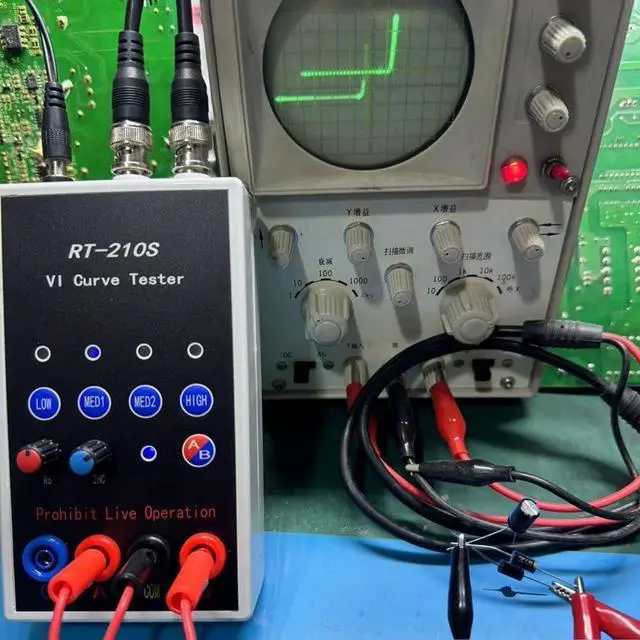

210S Electronic VI Curve Analyzer Dual Channel Circuit Board Testing Equipment with 4 Adjustable Frequencies 4 Resistance Levels for ASA Signal Analysis Circuit Board Fault Detection Testing Device
- Dual-Channel Technology: Featuring advanced VI curve testing capability with dual-channel signal inputs for simultaneous analysis of two different signals, allowing electronics technicians to efficiently diagnose multiple points without switching connections - saving valuable troubleshooting time.
- Circuit Safety Protection: Test circuit without powering them using ASA (Analog Signature Analysis) methodology, protecting sensitive components from potential damage while accurately identifying faults in digital, analog, and mixed-signal components - the safer approach to professional electronics diagnosis.
- Customizable Testing Parameters: Equipped with 4 adjustable frequency settings (40Hz, 350Hz, 2kHz, 14Hz) and 4 selectable resistance levels (56R, 220R, 1K, 20K), enabling precise configuration for testing various component types from microprocessors to passive for ELEMENTS on complex PCBs.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

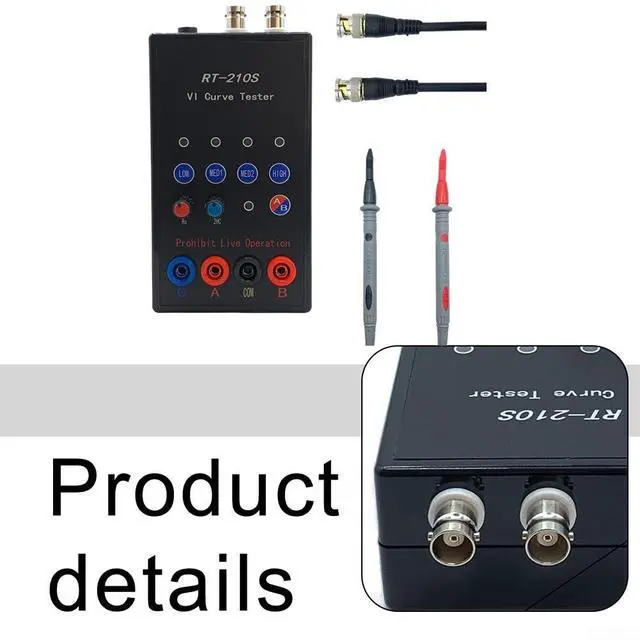

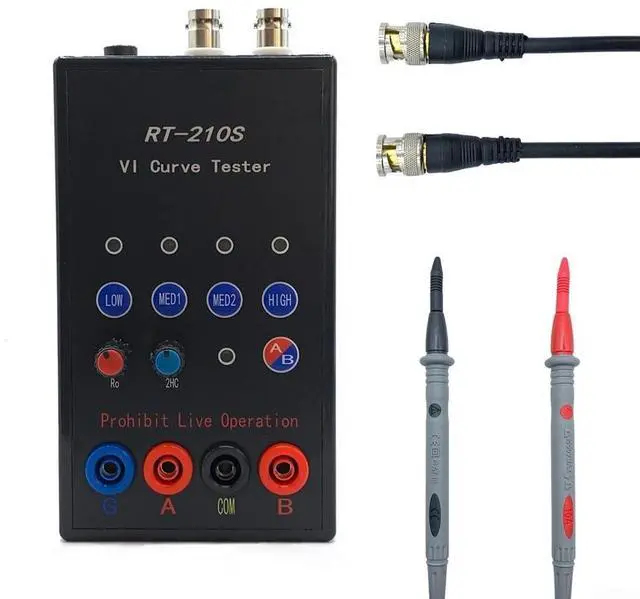

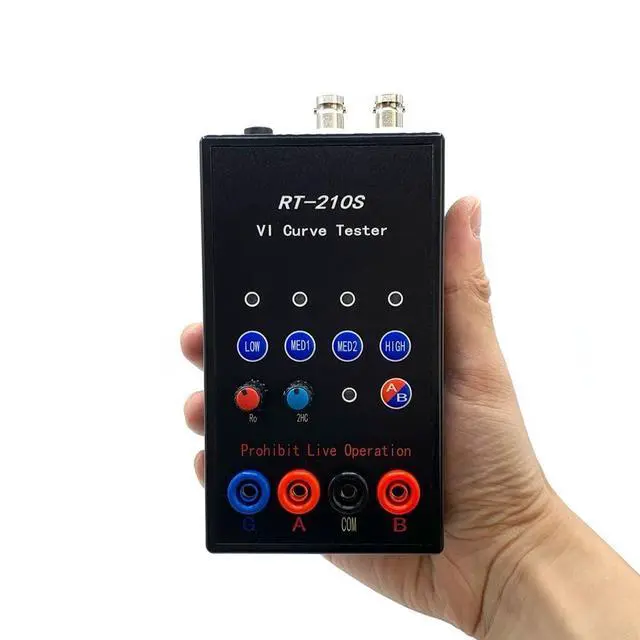

Compact Professional Design: Housed in a ABS casing measuring 140x80x40MM, this portable circuit analyzer fits comfortably in toolkits and workbenches, featuring clearly labeled controls and an intuitive interface for both experienced technicians and electronics students.

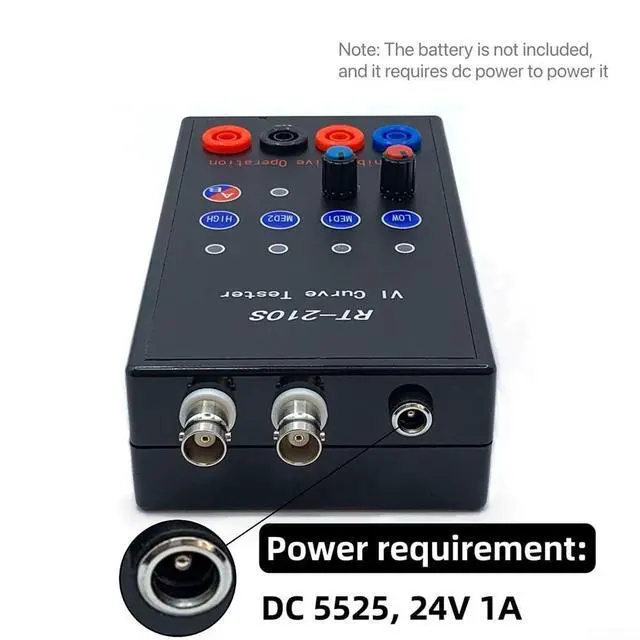

Complete Testing Solution: Ready for immediate implementation in electronics repair shops, educational labs, and manufacturing quality control departments - simply connect to a standard DC 24V 1A power adapter (via 5.5 * 2.1 interface) to begin comprehensive circuit board fault detection and component verification.
Complete Testing Solution: Ready for immediate implementation in electronics repair shops, educational labs, and manufacturing quality control departments - simply connect to a standard DC 24V 1A power adapter (via 5.5 * 2.1 interface) to begin comprehensive circuit board fault detection and component verification.
