2 Set ESP32 LoRa V4 Development Board + 3000mAh Battery + Purple Case, Upgraded ESP32-S3 SX1262 LoRa WiFi Bluetooth 2MB PSRAM 16MB Flash 915MHz Antenna OLED Support GPS Solar Meshtastic
- Upgraded ESP32-S3 & SX1262 Core for High-Performance IoT Projects: Powered by the advanced ESP32-S3R2 and SX1262 LoRa chip, this ESP32 development board delivers robust WiFi, Bluetooth LE 5.0, and long-range LoRa communication. Ideal for Meshtastic nodes and Arduino-based wireless projects requiring reliable connectivity and real-time data transmission in smart agriculture, industrial monitoring, or remote sensing.
- Enhanced Power & Memory: Experience superior signal strength with up to 28dBm LoRa transmission power and ultra-low reception sensitivity (-137dBm). Equipped with 2MB PSRAM and 16MB Flash, it excels in running complex firmware, UI interfaces, and multitasking applicationsperfect for ESP32 dev boards used in IoT devices, asset tracking, and home automation systems.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Full Expansion Support: Expand functionality easily with dedicated SH 1.25 -8Pin GNSS interface and SH 1.25 -2P solar panel input ( 4.4 -6V). Perfect for outdoor Meshtastic GPS trackers, solar-powered sensor networks, or off-grid environmental monitoring. Combine with a 915MHz LoRa antenna for maximum coverage.
Plug-and-Play Design: The ESP32 LoRa V4 is backward compatible with LoRa V3/V2 pinouts and fully supports Arduino IDE, MicroPython, and ESP-IDF. Features a 0.96 OLED display, USB Type-C with ESD protection, dual IP EX antennas (LoRa & 2.4GH z), and expanded header pins. A top-tier choice among ESP32 boards for makers, engineers, and Meshtastic users.

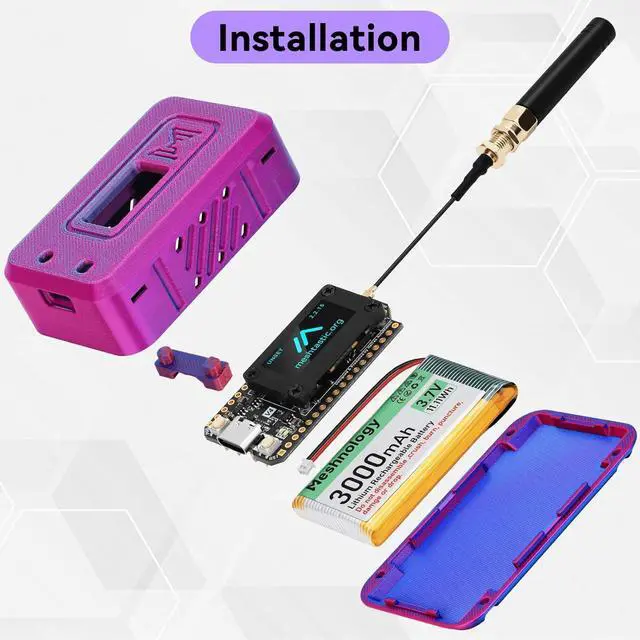

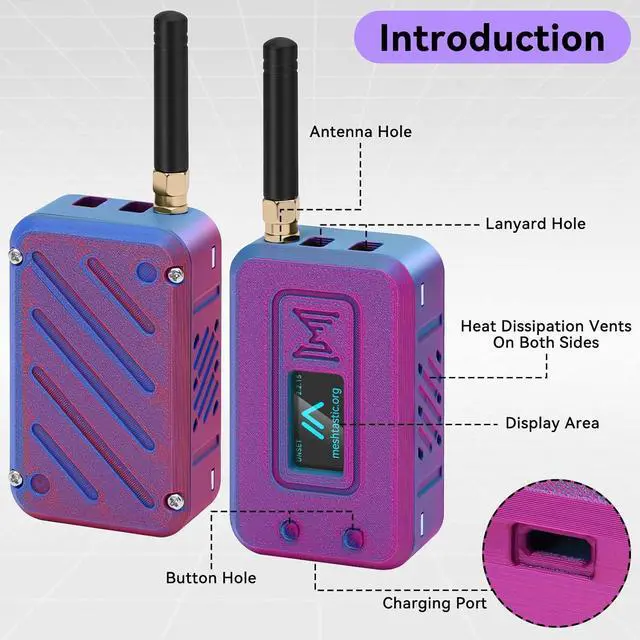

Customised Enclosure for Enhanced Protection: The included N35 iridescent purple shell is specifically designed to house your LoRa V4/V3 ESP32 development board, battery, and antennas. With precise cutouts for the display, buttons, charging port, and antenna, this case ensures a snug fit while offering robust protection. Durable and lightweight, its perfect for field deployments or DIY projects.
Note: 1. The screw in the upper left corner of the development board screen is a specially customized plastic screw, distinct from the other three screws. Its purpose is to avoid interfering with the 2.4GH z radio frequency and is not defective. 2. Since the development board buttons come in two different heights, two buttons are provided. Please select the one that is compatible for installation. 3. Flash the firmware first before use, otherwise the screen will be blank. The stable version of the system does not have V4 firmware, you can use 2.7. 11 or 2.7. 12.
Plug-and-Play Design: The ESP32 LoRa V4 is backward compatible with LoRa V3/V2 pinouts and fully supports Arduino IDE, MicroPython, and ESP-IDF. Features a 0.96 OLED display, USB Type-C with ESD protection, dual IP EX antennas (LoRa & 2.4GH z), and expanded header pins. A top-tier choice among ESP32 boards for makers, engineers, and Meshtastic users.
Customised Enclosure for Enhanced Protection: The included N35 iridescent purple shell is specifically designed to house your LoRa V4/V3 ESP32 development board, battery, and antennas. With precise cutouts for the display, buttons, charging port, and antenna, this case ensures a snug fit while offering robust protection. Durable and lightweight, its perfect for field deployments or DIY projects.
Note: 1. The screw in the upper left corner of the development board screen is a specially customized plastic screw, distinct from the other three screws. Its purpose is to avoid interfering with the 2.4GH z radio frequency and is not defective. 2. Since the development board buttons come in two different heights, two buttons are provided. Please select the one that is compatible for installation. 3. Flash the firmware first before use, otherwise the screen will be blank. The stable version of the system does not have V4 firmware, you can use 2.7. 11 or 2.7. 12.
