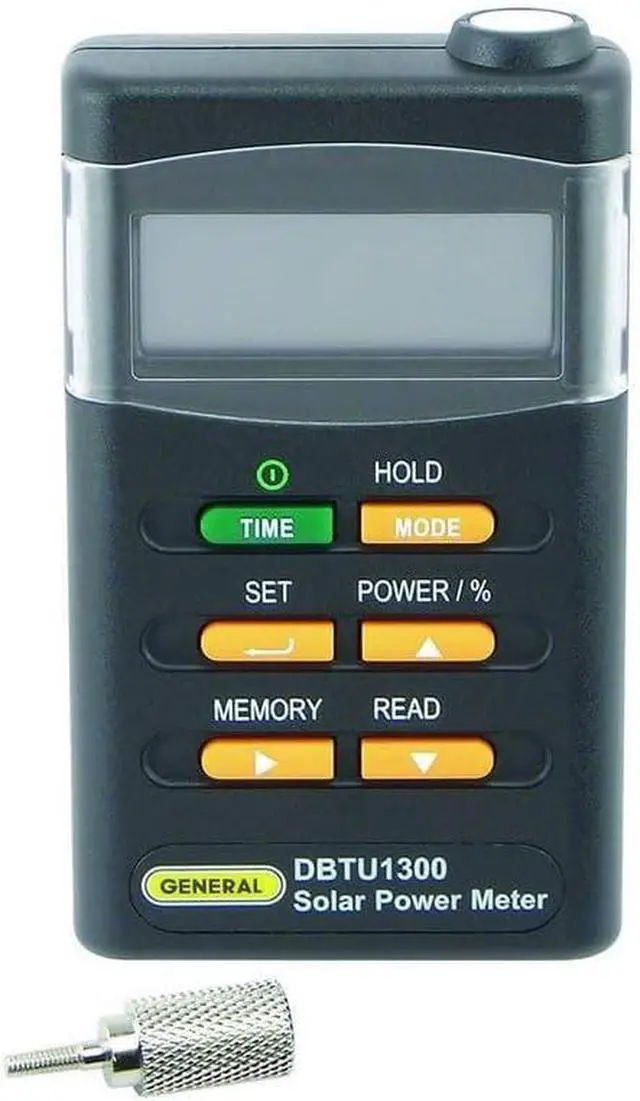

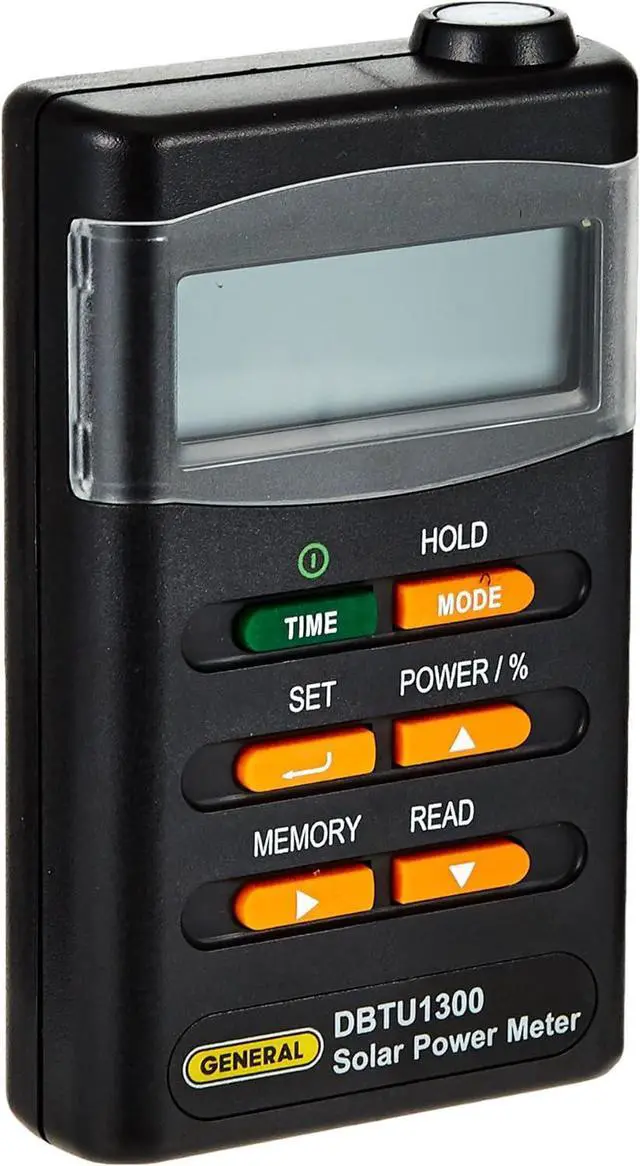

Handheld Digital Solar BTU Power Tester Meter #DBTU1300 With 4 Digit LCD Display, Wide Spectral Range, Cosine Corrected
- MEASURES: Displays solar power intensity from 0 to 2000 W/M2 or 0 to 634 BTU/(ft2 x H).
- END MOUNTED: Extremely stable light sensor with a wide spectral range (400-1100nm) and a sampling rate of 4 times/second.
- COSINE CORRECTED: Uses a silicon photodiode and cosine Angular correction (<5% for angles < 60°) to measure the solar power radiated from any direction, angle or position.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
FEATURE RICH: Current time setting, automatic transmission of measurements and data logging of up to 99 readings, as well as min/max/Avg memory + data Hold and auto power off (can be disabled).
: We're a recognized leader in designing and developing specialized precision tools dedicated to delivering exceptional customer service. We encourage artisans and DIYers to work smarter, measure better, and repair more productively.
DBTU1300 digital solar power meter can measure the solar power radiated from any direction, angle or position, can be mounted on a tripod and it has a time setting function. It measures solar power in units of watts per square meter or Btu/ (ft2 x h) and displays readings on a large 4-digit LCD. It is ideal for checking thermal window efficiency and has applications in meteorology, agriculture, solar radiation measurement, solar power research, physics and optical laboratories and solar transmission measurement. The feature rich tester is designed with a broad spectral range and is cosine corrected (
SPECIFICATIONS Measurement range: 0 to 2000 W/m2 or 0 to 634 Btu/ (ft2 x h)
Measurement accuracy: 10 W/m2 ( 3 Btu/ (ft2 x h) ) or 5% of reading, whichever is greater
Measurement resolution: 0. 1 W/m2 or Btu/ (ft2 x h)
Spectral range: 400 to 1000nm
Sampling rate: 4x per second
Auto power off: After 10 minutes of inactivity (can be disabled)
Operating temperature: 32° to 122°F (0° to 50°C) @
Weight: 5. 6 oz. (158g)
Power source: Four "AA" batteries (included) provide approximately 100 hours of operation.
: We're a recognized leader in designing and developing specialized precision tools dedicated to delivering exceptional customer service. We encourage artisans and DIYers to work smarter, measure better, and repair more productively.
DBTU1300 digital solar power meter can measure the solar power radiated from any direction, angle or position, can be mounted on a tripod and it has a time setting function. It measures solar power in units of watts per square meter or Btu/ (ft2 x h) and displays readings on a large 4-digit LCD. It is ideal for checking thermal window efficiency and has applications in meteorology, agriculture, solar radiation measurement, solar power research, physics and optical laboratories and solar transmission measurement. The feature rich tester is designed with a broad spectral range and is cosine corrected (
SPECIFICATIONS Measurement range: 0 to 2000 W/m2 or 0 to 634 Btu/ (ft2 x h)
Measurement accuracy: 10 W/m2 ( 3 Btu/ (ft2 x h) ) or 5% of reading, whichever is greater
Measurement resolution: 0. 1 W/m2 or Btu/ (ft2 x h)
Spectral range: 400 to 1000nm
Sampling rate: 4x per second
Auto power off: After 10 minutes of inactivity (can be disabled)
Operating temperature: 32° to 122°F (0° to 50°C) @
Weight: 5. 6 oz. (158g)
Power source: Four "AA" batteries (included) provide approximately 100 hours of operation.
