Dinkle Combiner DK16N Red/Black 10 Gang Box Connector DIN Rail Terminal Blocks, 3-14 AWG, 100 Amp, 600 Volt 8 Jumpers Installed

UL 3-14 AWG Rating
UL 100A Rating
Jumpers Installed - Blacks Common - Reds Common


Technical Data (UL) Rated Voltage: 600V
Rate Current: 100A Conductor Cross-section, Solid
(AWG): 14-3 Conductor Cross-section, Flexible
(AWG): 14-3
Rated Impulse Withstand Voltage: 8KV
Torque (N-m): 3.4
Screw: M5
Wire Strip Length: 14-16mm
Insulating Material: PA
TxHxW (mm): 12 x 51.3 x 48.3 (Individual
Blocks) DIN Rail (mm): 35, 32

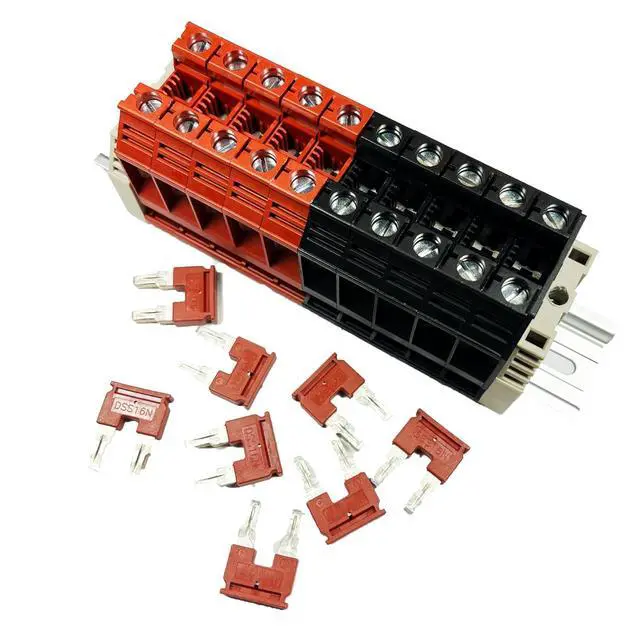

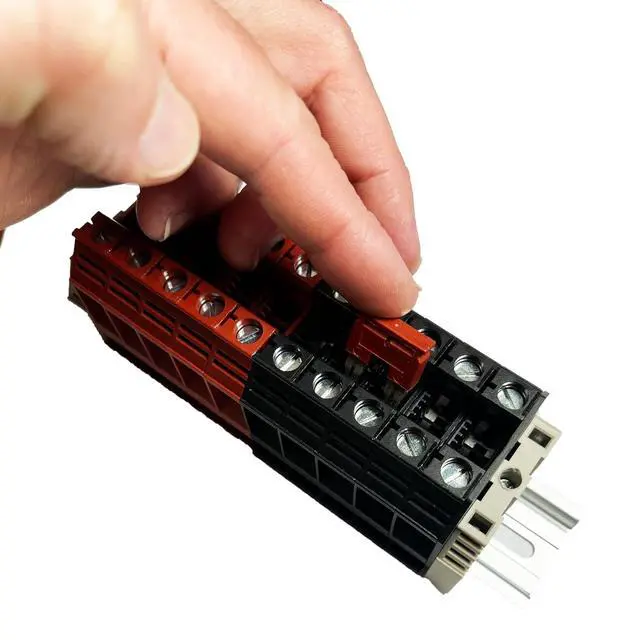

Jumper/Bridge: Press-fit/Insertion. This assembly includes 5 DK16N-RD Dinkle terminal blocks, 5 DK16N-BK Dinkle terminal blocks, 2 SS4 end brackets, and 1 DK16NC-BK end cover, all mounted on a 7" piece of aluminum RoHS rail. The assembly kit includes 8 jumpers to keep separate circuits or combine all the red blocks and combine all the black blocks. Customize to your needs. Accepts TM49W marking tags.
