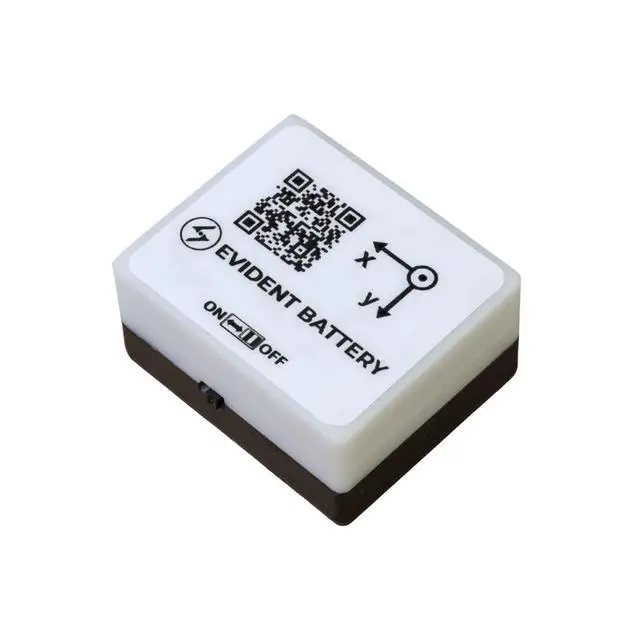

EVB Wi-Fi Vibration & Motion Sensor up to 6.66kHz | 6-Axis IMU (Accelerometer + Gyroscope) | Wi-Fi and AP Mode | API Software Portal | Sensor for Engineering Applications, EVs, & R&D Labs
- High-Precision 3-axis accelerometer and 3-axis gyroscope capture minute vibration changes with up to 0.000061 g and 0.0044 °/s. accuracy for reliable motion profiling and fault detection.

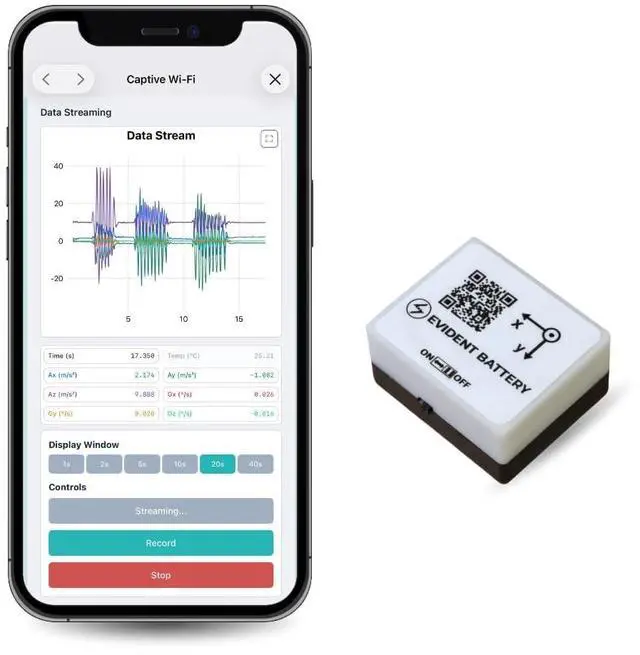

- Wi-Fi or Offline Mode Stream real-time vibration data through Wi-Fi or log locally via AP Modeno extra gateway or software needed.
- Long Battery Life 500 mAh Li-Po battery provides ~8 hours of continuous use with USB-C fast charging.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

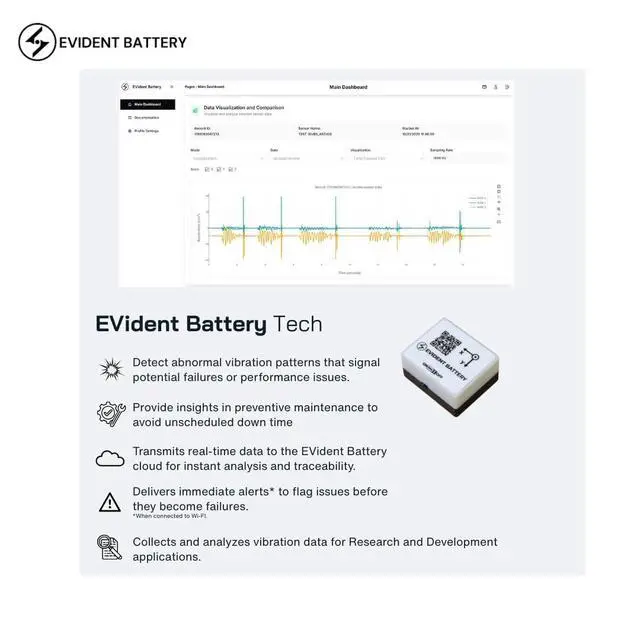

EVident Platform Integration Access live graphs and AI-powered analytics via evbdata. com (Subscription) to detect impact events and vibration patterns instantly.
Real-Time Timestamps Integrated RTC ensures each data packet is synchronized for traceable comparison and incident analysis.
a. The Vibration Sensor (Model EVB-01) delivers precise, timestamped motion and vibration data up to 6.6 kHz with 6 DoF 3-axis accelerometer and 3-axis gyroscope factory-calibrated for accuracy up to 0.000061 g / 0.0044 °/s. b. Designed with Wi-Fi ( 2.4 GHz) for seamless real-time data transmission and optional AP Mode for offline use, users can stream data directly to their browser or the EVident Platform (evbdata. com) without installing software. c. Powered by a 240 MHz dual-core microcontroller and 16 MB flash memory, the sensor processes high-frequency readings in real time, eliminating lag during vibration capture and ensuring reliable traceability.
d. The onboard real-time clock synchronizes timestamps for every data packet, supporting traceable analytics and precise event correlation. e. Compact and lightweight, with a 500 mAh Li-Po battery ( 8 hours runtime) and USB-C charging, its ideal for portable testing, engineering applications, and lab research.

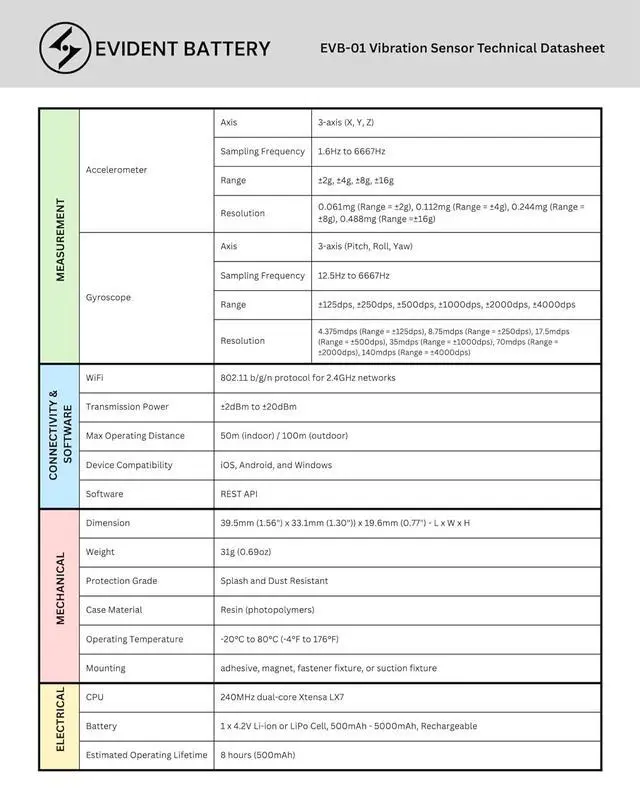

Main Specification: Input
Voltage: 3.3 V 5.0
V Typical Current: 25 mA (avg)
Dimensions: 41 × 37 × 19 mm
Measurement Axes: Acceleration (±16g), Angular Velocity (±2000 °/s)
Sampling Frequency: up to 6.6 kHz (configurable)
Connectivity: Wi-Fi 2.4 GHz /
AP Mode Output Interface: Digital (CSV / JSON via
HTTP REST API) Timestamp Accuracy: 1 ms
Battery Life: 8 hours continuous use
Housing: Photopolymer resin enclosure (minimal vibration damping)
Processor: 240 MHz dual-core MCU with onboard flash (16 MB)
Real-Time Timestamps Integrated RTC ensures each data packet is synchronized for traceable comparison and incident analysis.
a. The Vibration Sensor (Model EVB-01) delivers precise, timestamped motion and vibration data up to 6.6 kHz with 6 DoF 3-axis accelerometer and 3-axis gyroscope factory-calibrated for accuracy up to 0.000061 g / 0.0044 °/s. b. Designed with Wi-Fi ( 2.4 GHz) for seamless real-time data transmission and optional AP Mode for offline use, users can stream data directly to their browser or the EVident Platform (evbdata. com) without installing software. c. Powered by a 240 MHz dual-core microcontroller and 16 MB flash memory, the sensor processes high-frequency readings in real time, eliminating lag during vibration capture and ensuring reliable traceability.
d. The onboard real-time clock synchronizes timestamps for every data packet, supporting traceable analytics and precise event correlation. e. Compact and lightweight, with a 500 mAh Li-Po battery ( 8 hours runtime) and USB-C charging, its ideal for portable testing, engineering applications, and lab research.
Main Specification: Input
Voltage: 3.3 V 5.0
V Typical Current: 25 mA (avg)
Dimensions: 41 × 37 × 19 mm
Measurement Axes: Acceleration (±16g), Angular Velocity (±2000 °/s)
Sampling Frequency: up to 6.6 kHz (configurable)
Connectivity: Wi-Fi 2.4 GHz /
AP Mode Output Interface: Digital (CSV / JSON via
HTTP REST API) Timestamp Accuracy: 1 ms
Battery Life: 8 hours continuous use
Housing: Photopolymer resin enclosure (minimal vibration damping)
Processor: 240 MHz dual-core MCU with onboard flash (16 MB)
