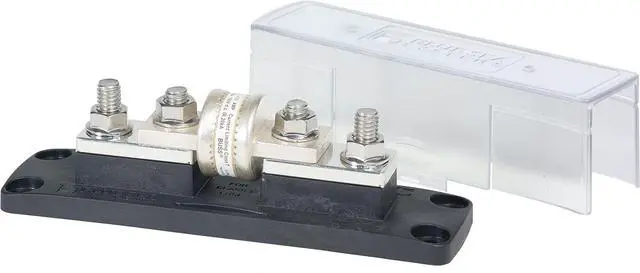

AMRB-5502 Blue Sea Class T Fuse Block w/Insulating Cover - 225 to 400A
- The fuse system recommended by most inverter manufacturers for high speed response to short circuits. Clear insulating cover, satisfies ABYC/USCG requirements. For use on systems up to 160 Volts DC
- Large 3/8"-16 stud terminals accept ring terminals for wire up to 4/0 AWG. Large heat dissipating tin-plated copper mounting blocks. Two # 8 accessory terminals located on each end. Specifications
- Maximum Amperage: 400A. Maximum Voltage: 160V DC. Fuse Mounting Blocks: Tin-Plated Copper
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Maximum Cable Size: 4/0 AWG.
Maximum Torque: 190 in-lb ( 21.47 Nm).
Mounting Holes: Accept 1/4 (M6) Screw
Terminal Stud Size: 3/8-16 (M10).
Weight: 1.10 lb ( 0.5 kg)
Class T Fuse Block w/ Insulating Cover - 225 to 400A The fuse system recommended by most inverter manufacturers for high speed response to short circuits Clear insulating cover, satisfies ABYC/USCG requirements For use on systems up to 160 Volts DC Large 3/8"-16 stud terminals accept ring terminals for wire up to 4/0 AWG Large heat dissipating tin-plated copper mounting blocks Two # 8 accessory terminals located on each endSpecifications
Amperage: 400A
Maximum Voltage: 160V
DC Fuse Mounting Blocks: Tin-Plated
Copper Maximum Cable Size: 4/0
AWG Maximum Torque: 190 in-lb ( 21.47
Nm) Mounting Holes: Accept 1/4 (M6)
Screw Terminal Stud Size: 3/8-16 (M10)
Weight: 1.10 lb ( 0.5 kg)
Maximum Torque: 190 in-lb ( 21.47 Nm).
Mounting Holes: Accept 1/4 (M6) Screw
Terminal Stud Size: 3/8-16 (M10).
Weight: 1.10 lb ( 0.5 kg)
Class T Fuse Block w/ Insulating Cover - 225 to 400A The fuse system recommended by most inverter manufacturers for high speed response to short circuits Clear insulating cover, satisfies ABYC/USCG requirements For use on systems up to 160 Volts DC Large 3/8"-16 stud terminals accept ring terminals for wire up to 4/0 AWG Large heat dissipating tin-plated copper mounting blocks Two # 8 accessory terminals located on each endSpecifications
Specifications
: MaximumAmperage: 400A
Maximum Voltage: 160V
DC Fuse Mounting Blocks: Tin-Plated
Copper Maximum Cable Size: 4/0
AWG Maximum Torque: 190 in-lb ( 21.47
Nm) Mounting Holes: Accept 1/4 (M6)
Screw Terminal Stud Size: 3/8-16 (M10)
Weight: 1.10 lb ( 0.5 kg)
