76 Pcs Brass DOT Air Line Fittings Kit Push Lock Air Fittings Push to Connect Fittings NPT Thread & Quick Connect Air Hose Fittings for DOT Air Line Air Hose Pneumatic Tubing

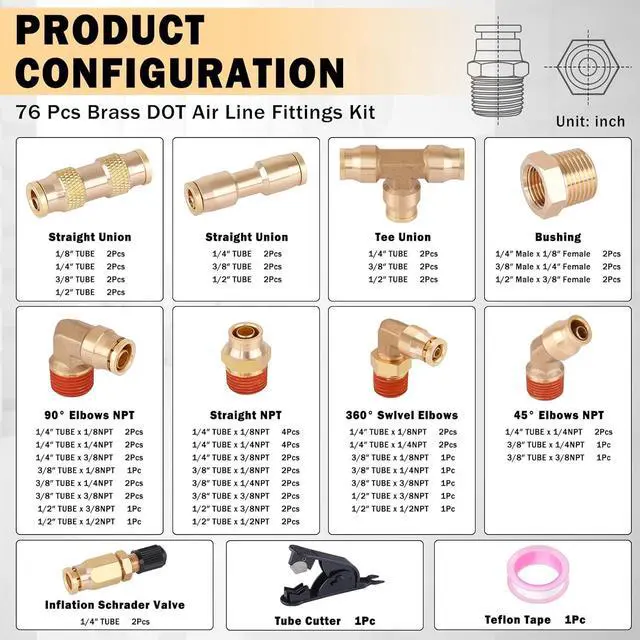

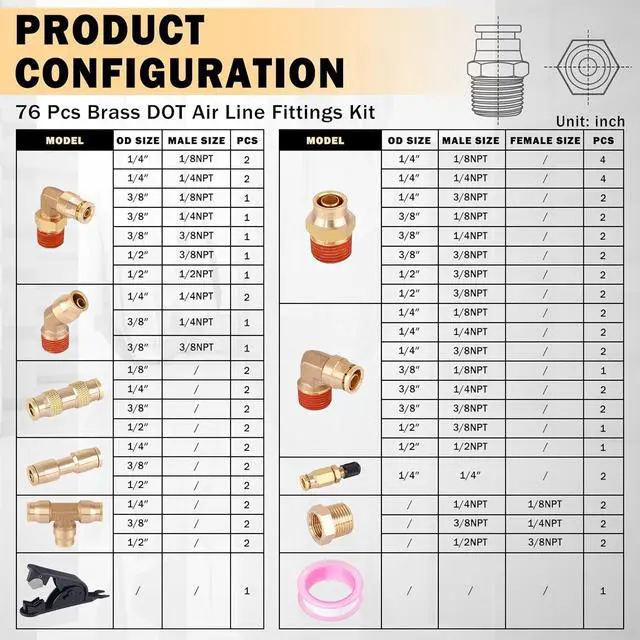

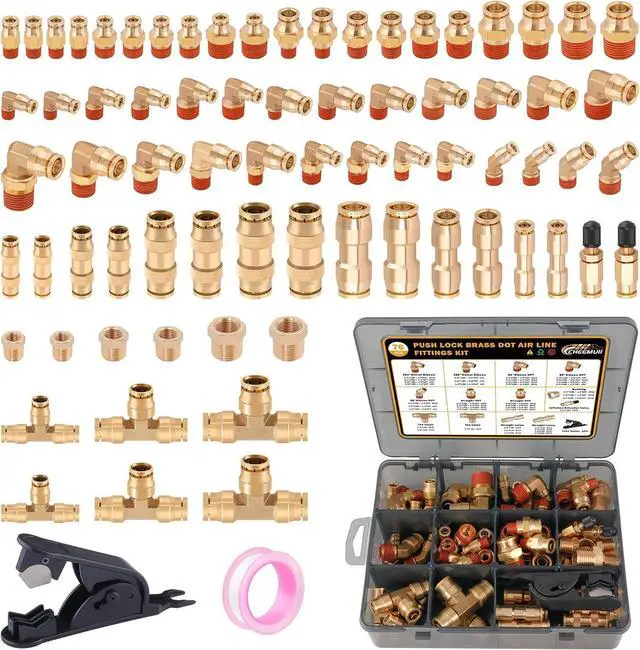

- 76 PCS PACKAGE: The 76 pcs DOT air line fittings assortment includes: 6 pcs brass tube tee fittings, 14 pcs brass straight union connectors, 20 pcs brass straight push & NPT thread, 13 pcs 90°elbows NPT thread, 9 pcs 360° swivel elbows NPT thread,4 pcs 45°elbows NPT thread, 6 pcs brass bushings, 2 pcs brass 1/4" inflation Schrader valve, 1 pc tube cutter, 1 pc Teflon tape. Air brake line fittings types: 1/8", 1/4", 3/8", 1/2"

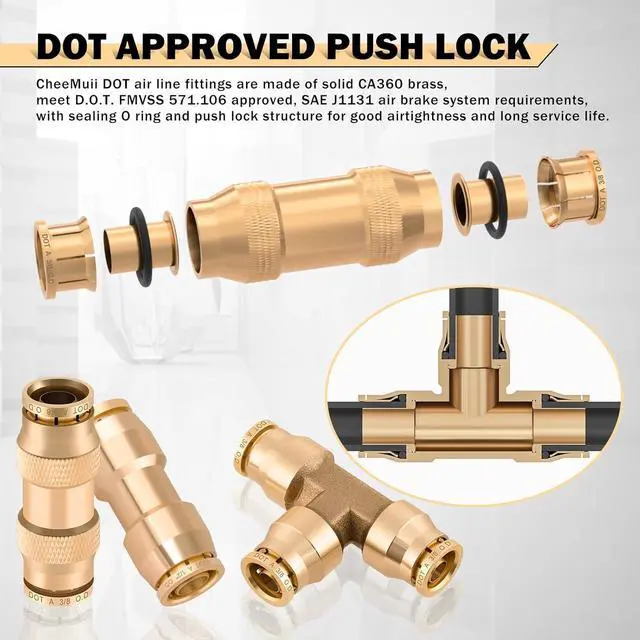

- PREMIUM DOT FITTINGS: DOT air hose fittings are made of CA360 pure brass, meet D.O.T. FMVSS 571.106 approved, SAE J1131 air brake system requirements, with corrosion resistance, high-temperature ductility, low permeability and long service life
- AIR SUSPENSION VALVE: 1/4" inflation Schrader valves are made of CA360 pure brass, which is durable and corrosion-resistant. Thread length: 3/4". Provide a manual inflation point to air spring suspension bags. Each expansion valve is equipped with a protective cap to prevent dirt and mud
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

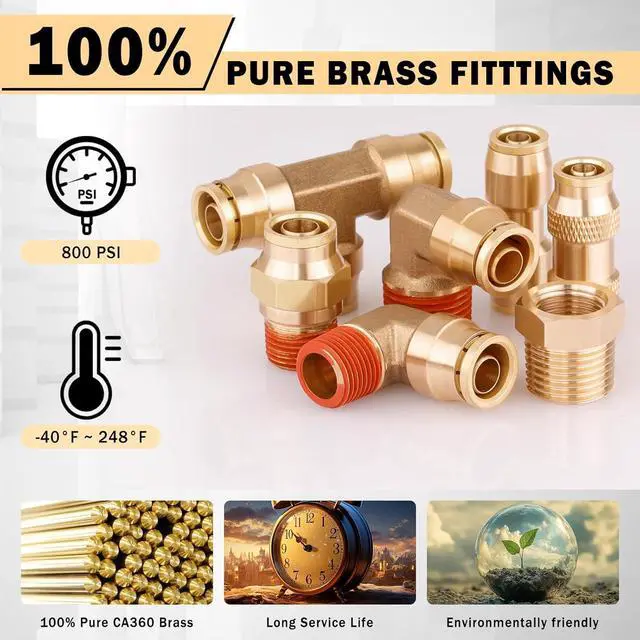

MAX WORKING INTENSITY: The brass fittings can be operated in pressures from vacuum to 800 PSI and in temperatures from -40°F to +248°F (-40°C to +120°C).
Note: see the tubing manufacturer's recommendations for pressure and temperature mutations

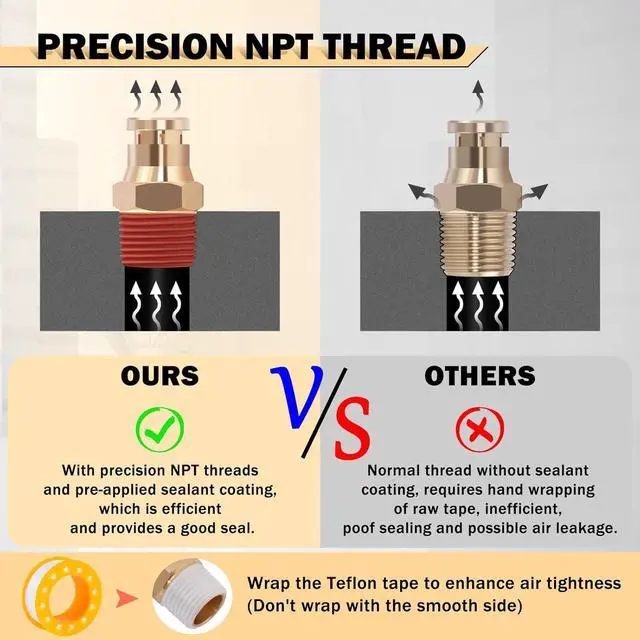

EASY INSTALLATION: The quick connect design and precise NPT threading make installation of air brake accessories easy, just push to connect. And there is pre-applied sealant on NPT male thread for better sealing
WIDE APPLICATION: The brass DOT air fittings can be used for air suspension systems, perfect for semi truck/trailer/RV repair air line leak, also ideal for industrial workshops, etc
Note: see the tubing manufacturer's recommendations for pressure and temperature mutations
EASY INSTALLATION: The quick connect design and precise NPT threading make installation of air brake accessories easy, just push to connect. And there is pre-applied sealant on NPT male thread for better sealing
WIDE APPLICATION: The brass DOT air fittings can be used for air suspension systems, perfect for semi truck/trailer/RV repair air line leak, also ideal for industrial workshops, etc
