Fuel Sending Unit and Gauge Kit 240-33ohm 9" Marine Boat Water Fuel Level Sender Set White

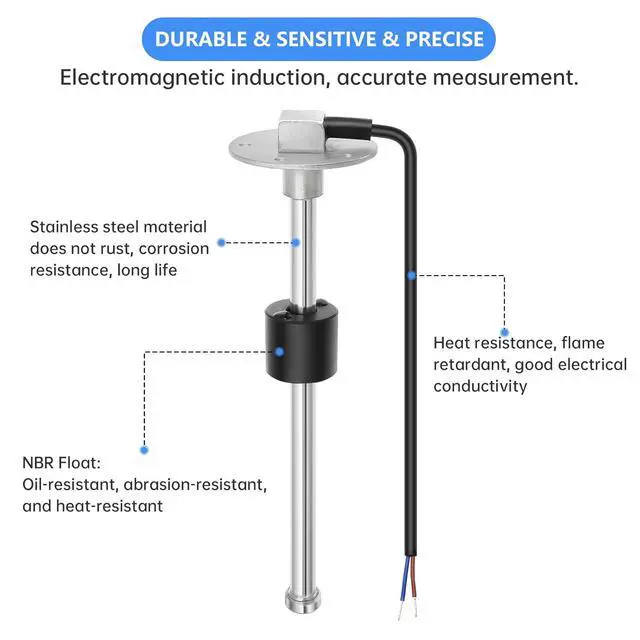

- Fuel Sending UnitThe Fuel Level Sender is made of 316 stainless steel. Benefits of using 316 stainless steel include durable, does not rust, stable output signal, intends for long service life and accurate measurement for Marine applications.

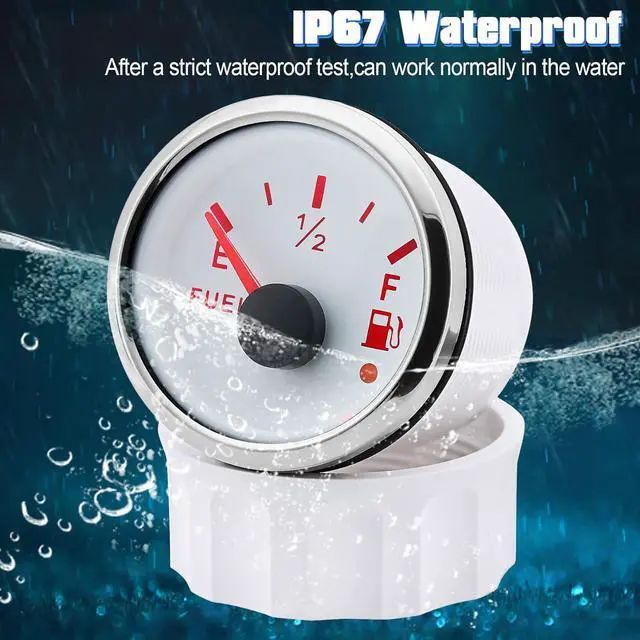

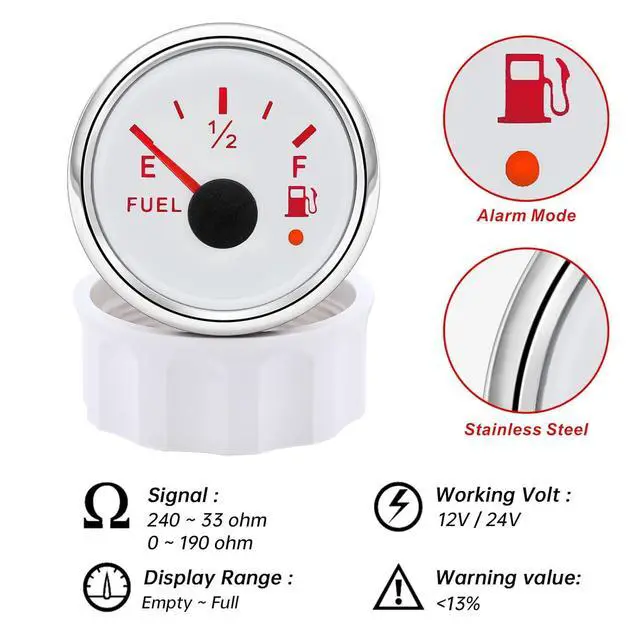

- Fuel Gauge240-33ohm Fuel gauge has stainless steel and plastic material, IP67 waterproof and Dustproof grade. Install diameter: 52mm or 2-1/16'', Indication range: E~F, Working voltage: 9-32v fit 12V-24V Vehicle or Engine .
- Wide Application the fuel sending unit and gauge kit is compatible with Standard American Output, 240 ohm - 33 ohm (Empty - Full), 18-21mm Per Step. It available for use in a boat, marine, automobile, motorcycle, RV, or yacht. It is suitable for fuel, kerosene, water, chemical tanks and any kinds of liquids without impurities.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

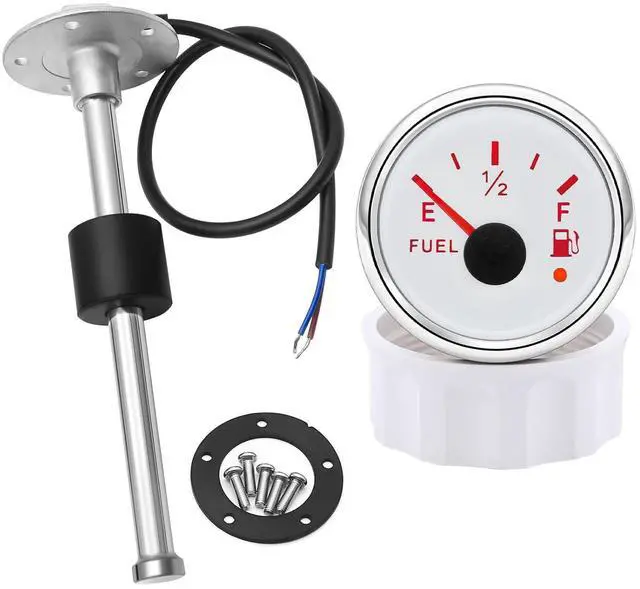

Package Include The water level gauge sensor is standard SAE 5 hole pattern. Fuel Gauge x1, Sending Unit x1, NBR Mounting Gasket x1, 10-24 Hex Screws x 5, Installation Instruction.

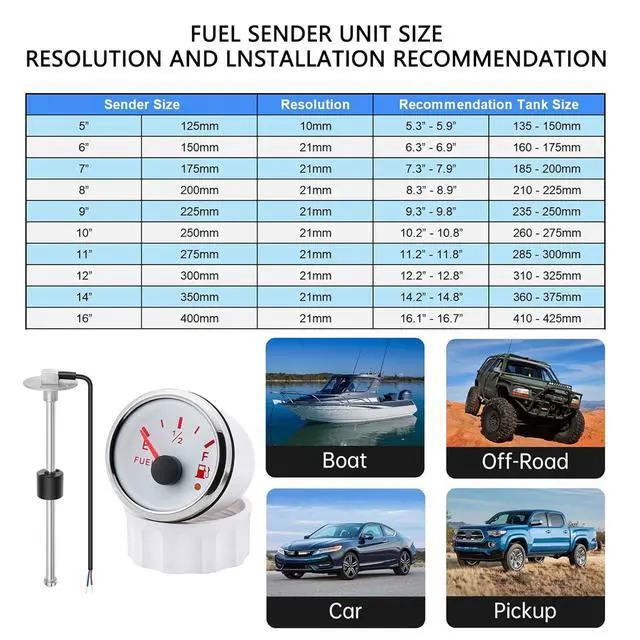

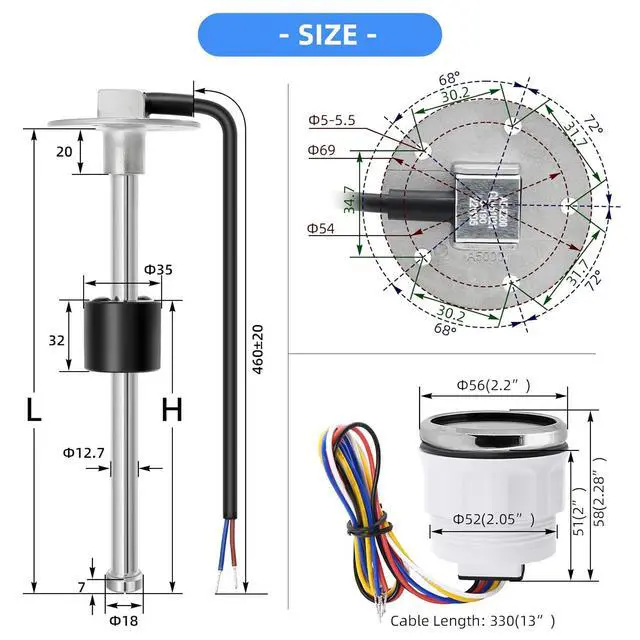

Unique DesignTo avoid sender hit bottom of tank, the length of fuel sensor should be 1" less than the depth of the tank. If you need to drill the hole, diameter 1-1/2" (38mm) hole would be Perfect. The diameter of float is 1.38" (35mm).
Unique DesignTo avoid sender hit bottom of tank, the length of fuel sensor should be 1" less than the depth of the tank. If you need to drill the hole, diameter 1-1/2" (38mm) hole would be Perfect. The diameter of float is 1.38" (35mm).
