Fuel Sending Unit and Gauge Kit, 240-33ohms 9" (225mm) Boat Marine Fuel Tank Sender Stainless Steel Gas Sensor for Car Truck Vehicle (White)
- [Fuel Sender Material]: Fuel sending unit is made with heavy duty stainless steel. This fuel tank sending unit of advantage is reed switch, durability and reliability, steady output signal. No adjustment needed for tank, accurately Indicating fuel level of the Tank. The fuel level sensor is suitable for Boat, Auto,Trucks, Buses and Marine field

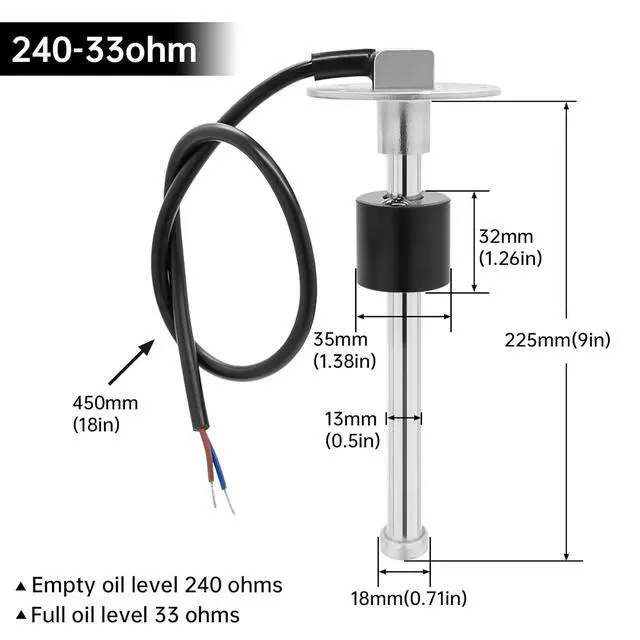

- [American Standard Output]: The fuel gauge is combined with the fuel sending unit to make it easier to work on the vehicle and avoid signal mismatches. The Fule/Water level sensor suitable to American standard output 240-33 ohms (240 ohms at empty, 33 ohms at full). Length range of fuel tank sender to choose: 5 inch-18inch

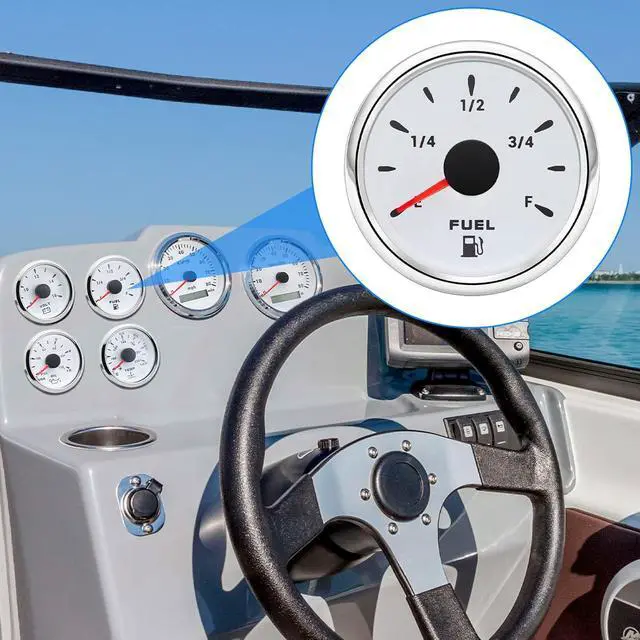

- Fuel GaugeThe fuel gauge is made of 316 Stainless Steel Bezel, IP67 waterproof, dustproof curved glass lenses. Diameter : 2-1/16 inch (52mm), Working voltage: 12-24V. 7 color backlight : redgreenblueyellowolivineorangepurple. Easy to view from all angles when driving at night or any lighting condition
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
[Easy to

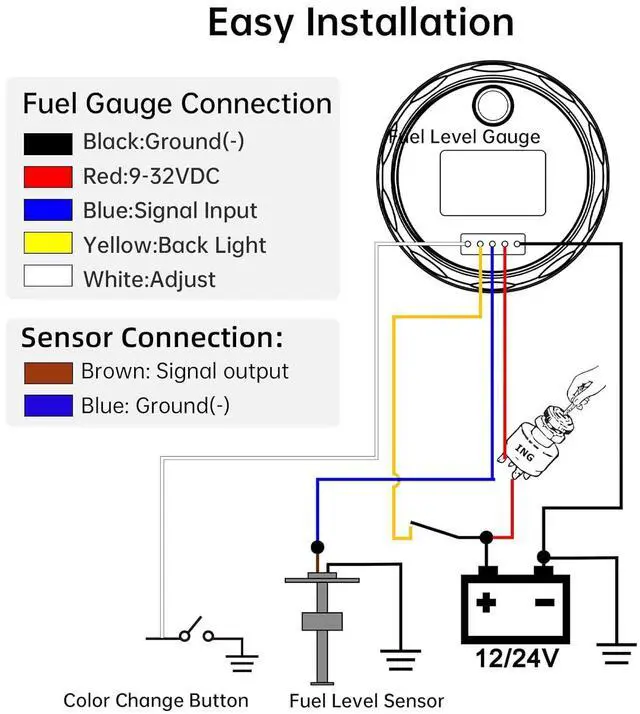

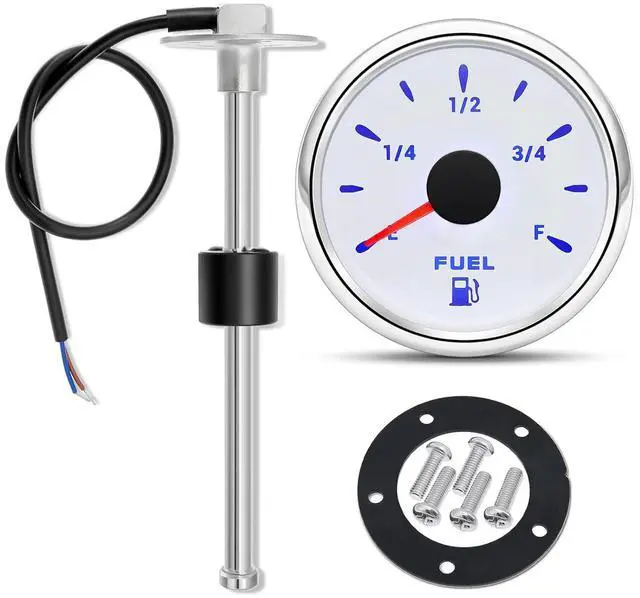

Install]: The package includes all accessories, no need other accessories. The package comes with 1x Fuel Gauge, 1 x Boat Fuel Sensor, 1 x Gasket, 5 x Screws and 1 x instructions. SAE 5 hole mounting pattern, easy to install and hookup. The well-written and illustrated instructions are straight forward that will easy to follow

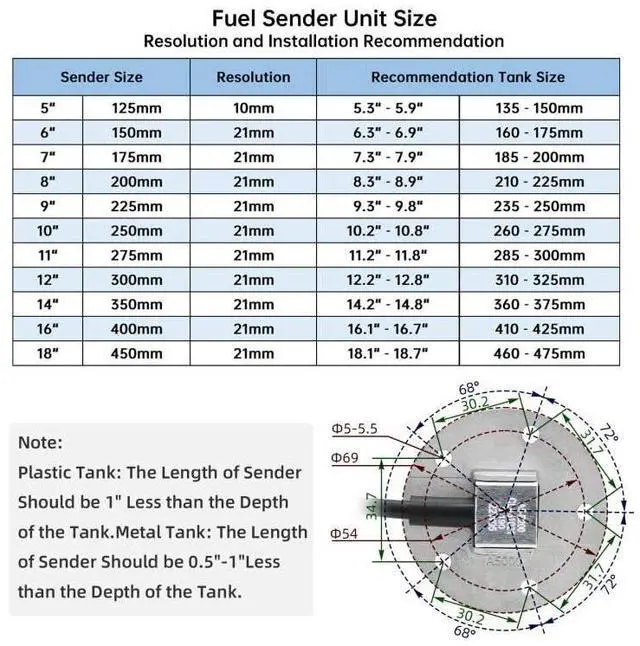

[Noted]: Avoid the sensor to hit the bottom of the tank, the length of the sender should be 1" (25mm) less than the depth of the fuel tank
Install]: The package includes all accessories, no need other accessories. The package comes with 1x Fuel Gauge, 1 x Boat Fuel Sensor, 1 x Gasket, 5 x Screws and 1 x instructions. SAE 5 hole mounting pattern, easy to install and hookup. The well-written and illustrated instructions are straight forward that will easy to follow
[Noted]: Avoid the sensor to hit the bottom of the tank, the length of the sender should be 1" (25mm) less than the depth of the fuel tank
