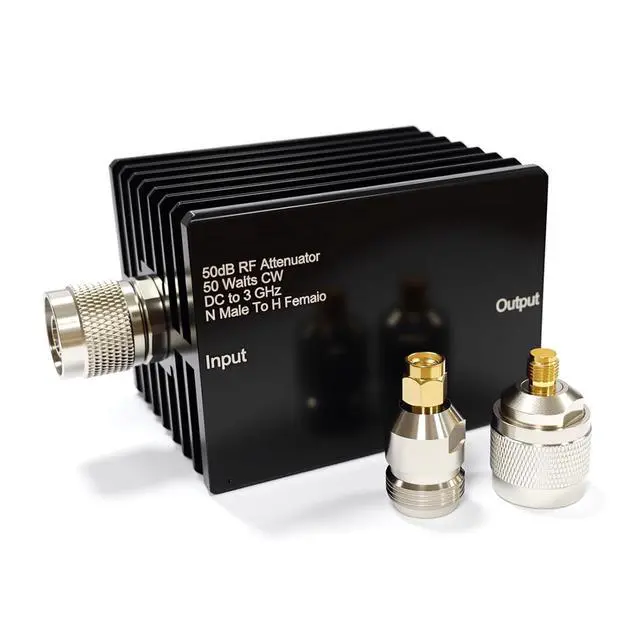

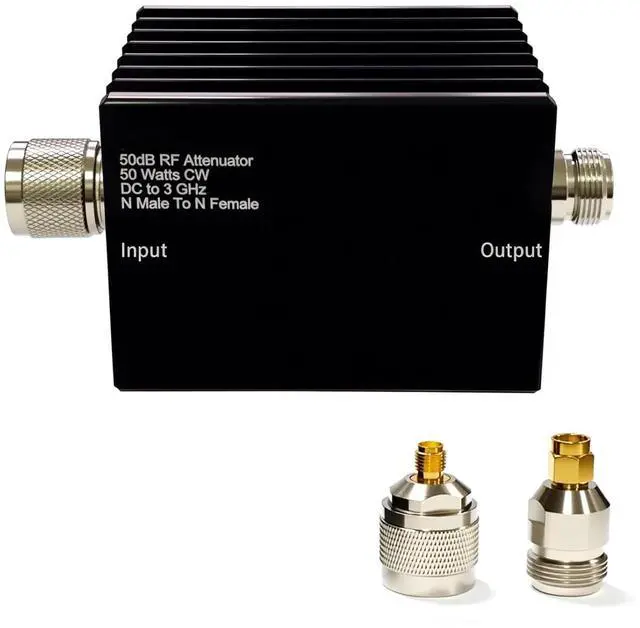

50W RF Attenuator, 50 dB Fixed, 50 Watt 50 Ohm Attenuator DC to 3GHz, N Male to Female Fixed Attenuator kit for Tinysa Ultra Spectrum Analyzer Antennas & Test Equipment
- 50W RF Attenuator, N Male to Female Fixed Attenuator kit for tinysa ultra spectrum analyzer Antennas & Test Equipment
- Frequency Range: DC-3000 MHz; Power Rating: 50 W; Attenuation: 50 dB ± 2.5 dB; Impedance : 50
- Connector: N(M) Input N(F) Output; VSWR and Attenuation Accuracy: 1.20:1 Max. Product Type: Dry (Convection-Cooled)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Body: Aluminum;
Finish: Black Anodized;
Operating Temperature: -10 to +50 °C (-23 to + 4.4 °F)
Packing List: 50W N Male to Female Fixed Attenuator Kit.
Dimensions: 3.1 in L x 2.3 in Dia., (80 mm x 60 mm);
Weight: 0.88 lbs. ( 0.4 kg)
50W RF Attenuator, 50 dB Fixed, 50 Watt 50 Ohm Attenuator DC to 3GHz for Tinysa Ultra Spectrum Analyzer

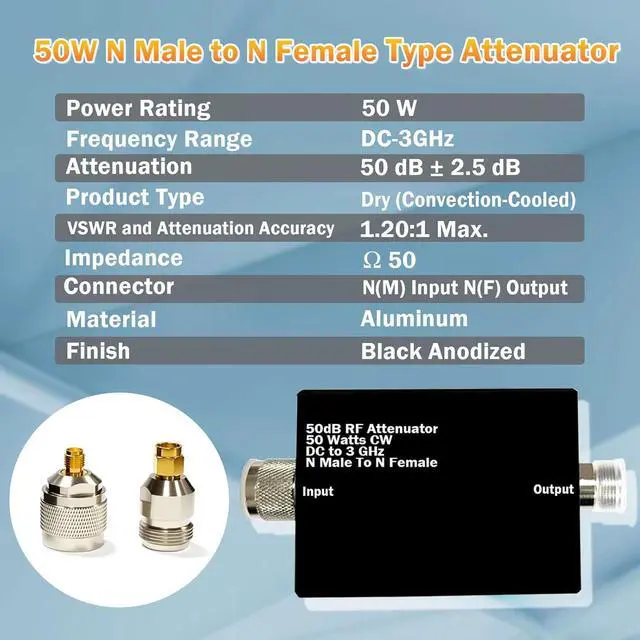

N Male to Female Fixed Attenuator kit SpecificationPower Rating
50 W
Frequency Range
DC-3000 MHz
VSWR and Attenuation Accuracy
1.20: 1 Max.
Product Type
Dry (Convection-Cooled)
Attenuation
50 dB ± 2.5 dB
Impedance
50
Connector
N (M) Input N (F) Output
Operating Temperature
-10 to +50 °C (-23 to + 4.4 °F)
Body
Black Anodized Aluminum Heatsink
Body Finish
Black Anodized
Dimensions
3.1 in L x 2.3 in Dia., (80 mm x 60 mm)
Weight
0.88 lbs. ( 0.4 kg)
Finish: Black Anodized;
Operating Temperature: -10 to +50 °C (-23 to + 4.4 °F)
Packing List: 50W N Male to Female Fixed Attenuator Kit.
Dimensions: 3.1 in L x 2.3 in Dia., (80 mm x 60 mm);
Weight: 0.88 lbs. ( 0.4 kg)
50W RF Attenuator, 50 dB Fixed, 50 Watt 50 Ohm Attenuator DC to 3GHz for Tinysa Ultra Spectrum Analyzer
N Male to Female Fixed Attenuator kit SpecificationPower Rating
50 W
Frequency Range
DC-3000 MHz
VSWR and Attenuation Accuracy
1.20: 1 Max.
Product Type
Dry (Convection-Cooled)
Attenuation
50 dB ± 2.5 dB
Impedance
50
Connector
N (M) Input N (F) Output
Operating Temperature
-10 to +50 °C (-23 to + 4.4 °F)
Body
Black Anodized Aluminum Heatsink
Body Finish
Black Anodized
Dimensions
3.1 in L x 2.3 in Dia., (80 mm x 60 mm)
Weight
0.88 lbs. ( 0.4 kg)
