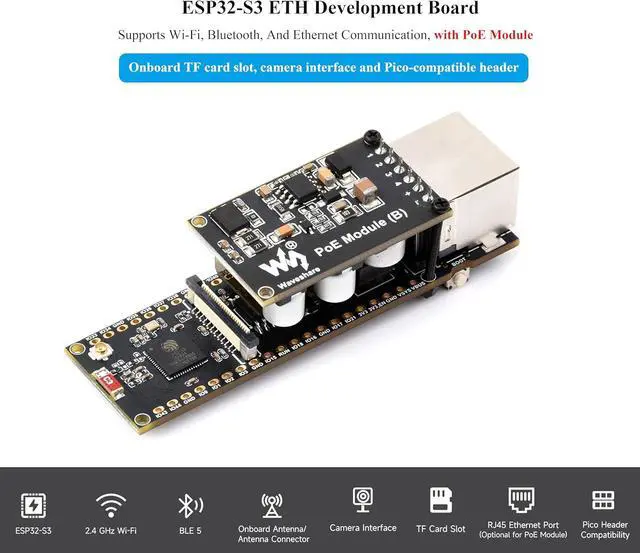

ESP32-S3 Ethernet Development Board, 10/100Mbps RJ45 ETH Port, 240MHz Dual Core Processor, Onboard Type-C Port & TF Card Slot, Support WiFi & BLE & Ethernet Communication, with POE Module

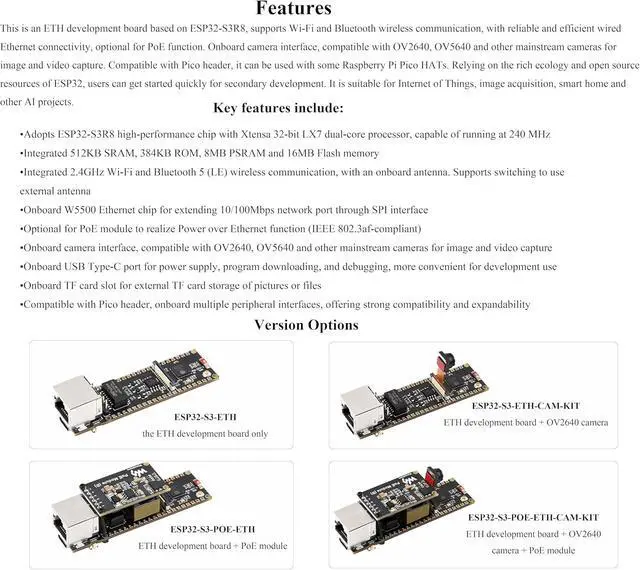

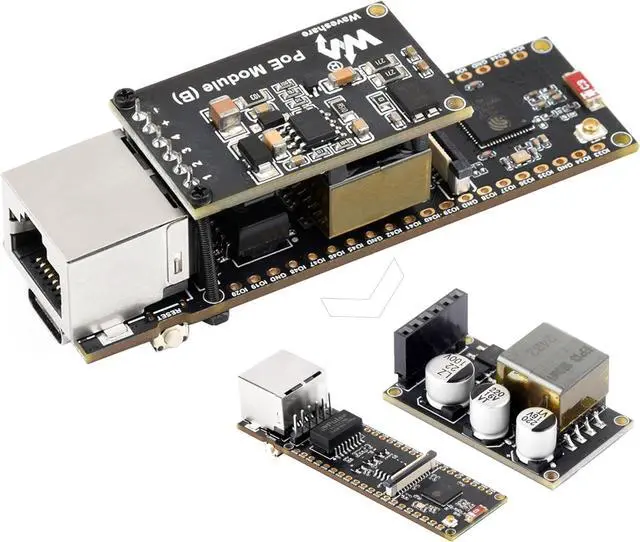

- There are Four Versions: the ETH development board only, ETH development board + OV2640 camera, ETH development board + PoE module, ETH development board + OV2640 camera + PoE module. This is ETH development board + PoE module version.
- This is an ETH development board based on ESP32-S3R8 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz, supports Wi-Fi and Bluetooth communication, with wired Ethernet connectivity, with PoE function. Supports PoE Power Supply. Provides Both Network Connection And Power Supply In Only One Ethernet Cable.
- Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM and 16MB Flash memory. Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) wireless communication, with an onboard antenna. Supports switching to use external antenna. Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Onboard camera interface, compatible with OV2640, OV5640 and other mainstream cameras for image capture, video monitoring and other applications to meet different needs. Compatible with Pico header, it can be used with some Raspberry Pi Pico HATs.
Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use. Onboard TF card slot for external TF card storage of pictures or files.
FeaturesThis is an ETH development board based on ESP32-S3R8
, supports W--F-i and Blue--too--th wire--less communication, with reliable and efficient wired Ethernet connectivity, optional for PoE function. Onboard camera interface, compatible with OV2640, OV5640 and other mainstream cameras for image and video capture. Compatible with Pico header, it can be used with some Raspberry Pi Pico HATs. Relying on the rich ecology and open source resources of ESP32, users can get started quickly for secondary development. It is suitable for Internet of Things, image acquisition, smart home and other AI projects.
Key features include:
Adopts ESP32-S3R8 high-performance chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM and 16MB Flash memory
Integrated 2.4GH z W--F-i and Blue--too--th 5 (LE) wire--less communication, with an onboard antenna. Supports switching to use external antenna
Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface

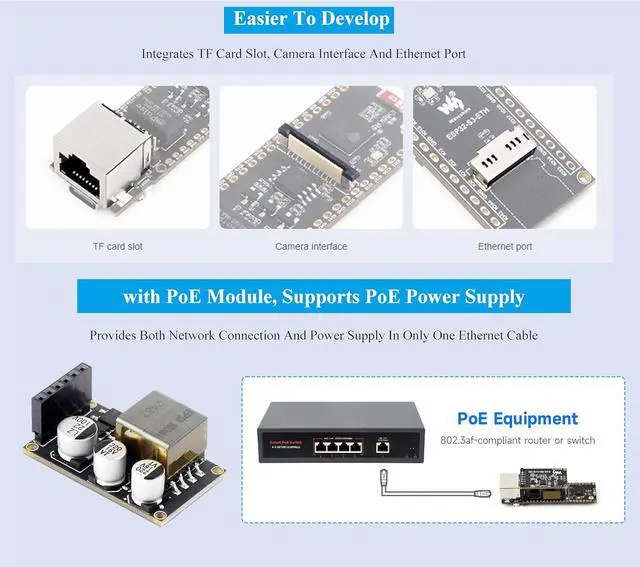

Optional for PoE module to realize Power over Ethernet function (IEEE 802.3 af-compliant)

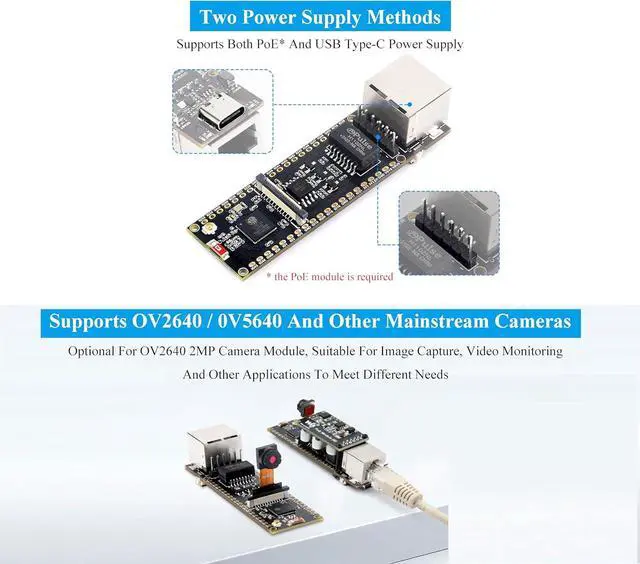

Onboard camera interface, compatible with OV2640, OV5640 and other mainstream cameras for image and video capture
Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
Onboard TF card slot for external TF card storage of pictures or files
Compatible with Pico header, onboard multiple peripheral interfaces, offering strong compatibility and expandability
Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use. Onboard TF card slot for external TF card storage of pictures or files.
FeaturesThis is an ETH development board based on ESP32-S3R8
, supports W--F-i and Blue--too--th wire--less communication, with reliable and efficient wired Ethernet connectivity, optional for PoE function. Onboard camera interface, compatible with OV2640, OV5640 and other mainstream cameras for image and video capture. Compatible with Pico header, it can be used with some Raspberry Pi Pico HATs. Relying on the rich ecology and open source resources of ESP32, users can get started quickly for secondary development. It is suitable for Internet of Things, image acquisition, smart home and other AI projects.
Key features include:
Adopts ESP32-S3R8 high-performance chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM and 16MB Flash memory
Integrated 2.4GH z W--F-i and Blue--too--th 5 (LE) wire--less communication, with an onboard antenna. Supports switching to use external antenna
Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface
Optional for PoE module to realize Power over Ethernet function (IEEE 802.3 af-compliant)
Onboard camera interface, compatible with OV2640, OV5640 and other mainstream cameras for image and video capture
Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
Onboard TF card slot for external TF card storage of pictures or files
Compatible with Pico header, onboard multiple peripheral interfaces, offering strong compatibility and expandability
