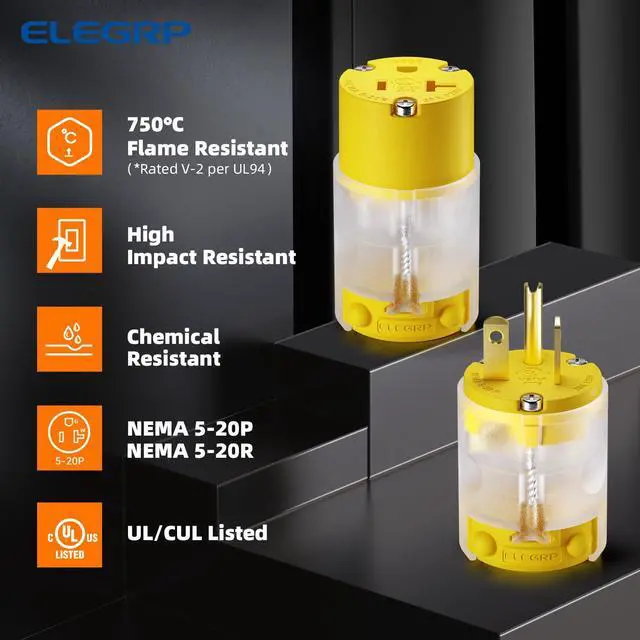

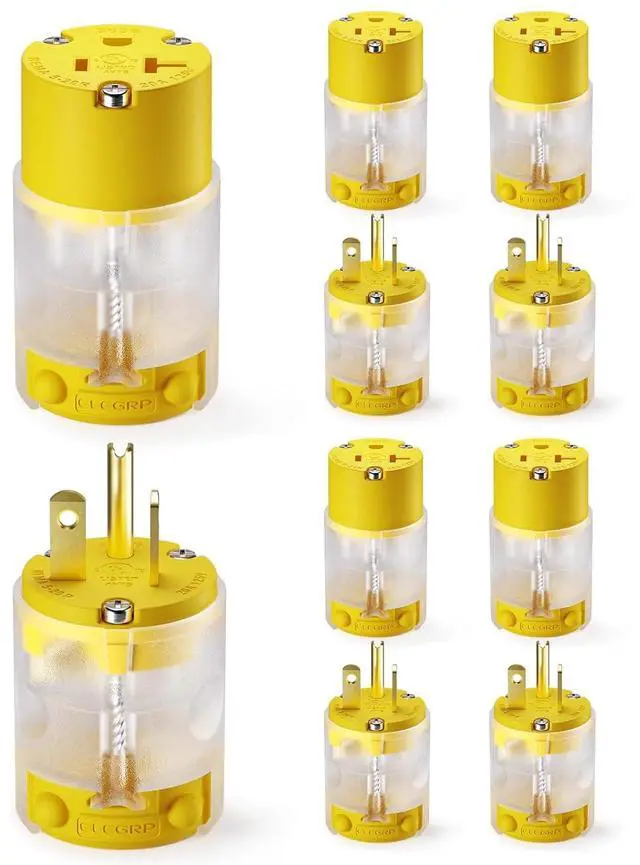

Lighted Straight Blade Electrical Plug and Connector Set 20 Amp 125 Volt NEMA 5-20P NEMA 5-20R 2 Pole 3 Wire Grounding, Commercial Grade, Yellow, 5 Set
- Good to Use and Install Unique dimpled body provides a secure gripping, turning and pulling. Face and body feature alignment make it easy to assemble. Grip screws are installed from the same side to make tightening easy.
- Adjustable Wiring Gauge extension cord replacement ends with an adjustable rear cord clamp for various wires sizes 18-12 AWG, and it is suitable for making new power cables, or repairing extension cords. Good for industry, home, office, garden, etc.
- Wide Application Perfectly for use with Generator Transfer Switches or Power Inlet Plug to supply power to your Home, Business, Marine/Boat or RV/Trailer. Widely used for Generators, welding equipment, Sump & Well Pumps.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Green Neon Light Green neon light indicates that power is flowing.

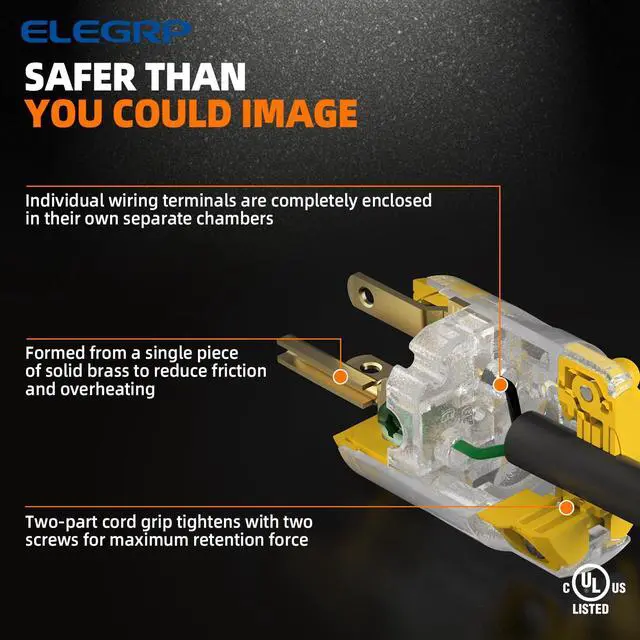

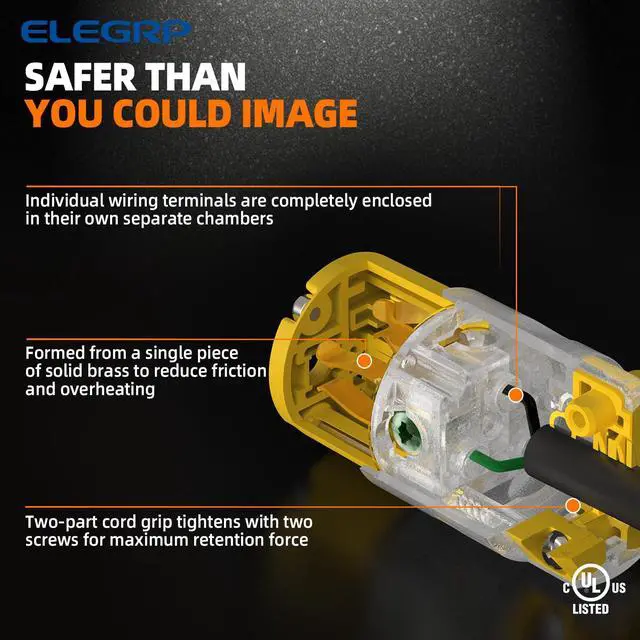

Toughened Construction + Copper Brass Contacts Insulated and solid housing will keep non-current carrying parts from becoming energized and wont crack in high abuse applications. Formed from a single piece of solid brass to reduce friction and overheating, providing excellent conductivity.
Straight Blade Extension Cord End Replacement Plug & Connector SetWide Application:
Perfectly for use with Generator Transfer Switches or Power Inlet Plug to supply power to your Home, Business, Marine/Boat or RV/Trailer.
Widely used for Generators, welding equipment, Sump & Well Pumps.
Good to Use and Install:

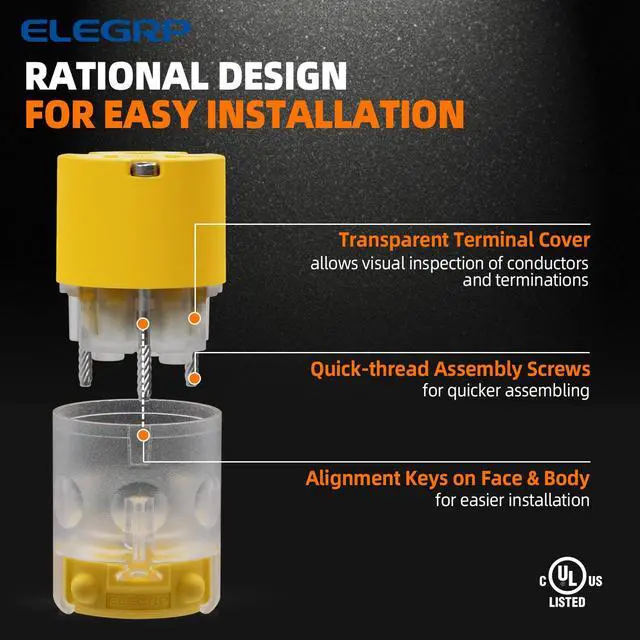

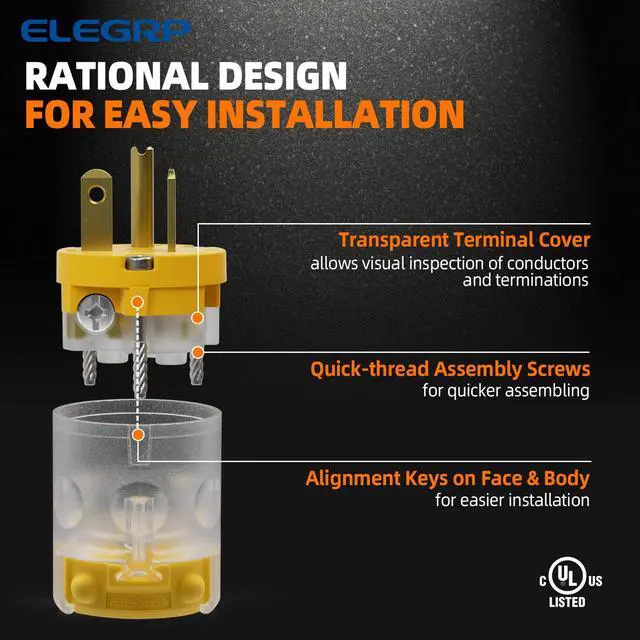

Ergonomic fluted body design with circular dent is ideal for gripping, turning and pulling. Face and body feature alignment make it easy to assemble. Grip screws are installed from the same side to make tightening easy.
How to Install? Loosen assembly screws in face and separate device. If needed, back out cord clamp screws enough to allow the cord to fit between the two clamp halves. Insert cord through cord clamp and housing. Simply remove the minimum cord clamp if the cord dia. is 0.391" - 0.655".
Strip cord jacket between 7/8 and 1 from cords end. Remove insulation exposing between 3/8 and 1/2 bare copper wire (see diagram 1a). Twist wire strands tightly together. Trim off cord fillers, if any.
Insert bare copper wire into wire clamp and tighten each terminal screw 10-12 in-lbs. torque. Ensure insulation clears clamp; HOT conductor to BRASS terminal, NEUTRAL conductor to SILVER terminal, and GROUND conductor to GREEN hex screw.
Assemble wired device body with housing. Align keyed housing with a key on the devices body. Tighten assembly screws.
Alternately tighten cord clamp screws 10-12 in-lbs. torque. Ensure cord clamp rests over cord jacket, not over conductors.
Note:
Built-in cord grip adjusts automatically for use with 18-12 AWG.
Toughened Construction + Copper Brass Contacts Insulated and solid housing will keep non-current carrying parts from becoming energized and wont crack in high abuse applications. Formed from a single piece of solid brass to reduce friction and overheating, providing excellent conductivity.
Straight Blade Extension Cord End Replacement Plug & Connector SetWide Application:
Perfectly for use with Generator Transfer Switches or Power Inlet Plug to supply power to your Home, Business, Marine/Boat or RV/Trailer.
Widely used for Generators, welding equipment, Sump & Well Pumps.
Good to Use and Install:
Ergonomic fluted body design with circular dent is ideal for gripping, turning and pulling. Face and body feature alignment make it easy to assemble. Grip screws are installed from the same side to make tightening easy.
How to Install? Loosen assembly screws in face and separate device. If needed, back out cord clamp screws enough to allow the cord to fit between the two clamp halves. Insert cord through cord clamp and housing. Simply remove the minimum cord clamp if the cord dia. is 0.391" - 0.655".
Strip cord jacket between 7/8 and 1 from cords end. Remove insulation exposing between 3/8 and 1/2 bare copper wire (see diagram 1a). Twist wire strands tightly together. Trim off cord fillers, if any.
Insert bare copper wire into wire clamp and tighten each terminal screw 10-12 in-lbs. torque. Ensure insulation clears clamp; HOT conductor to BRASS terminal, NEUTRAL conductor to SILVER terminal, and GROUND conductor to GREEN hex screw.
Assemble wired device body with housing. Align keyed housing with a key on the devices body. Tighten assembly screws.
Alternately tighten cord clamp screws 10-12 in-lbs. torque. Ensure cord clamp rests over cord jacket, not over conductors.
Note:
Built-in cord grip adjusts automatically for use with 18-12 AWG.
