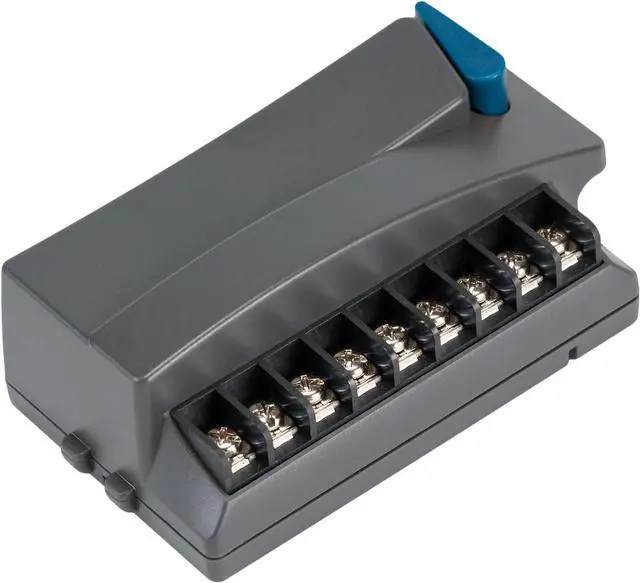

ICM-800 8 Station Expansion Module, Compatible with ICC2 and HCC Irrigation Controllers, Adds 8 Zones, Works with Hydrawise and Solar Sync

FLEXIBLE WATERING SCHEDULES FOR EVERY ZONE: Customize watering with 4 programs and 8 start times each, great for managing sprinklers, drip irrigation, and seasonal lawn needs.
DURABLE,
RELIABLE,
AND BACKED BY: Built with high-quality materials, includes diagnostic features, memory backup, and one-touch manual start for long-lasting performance.

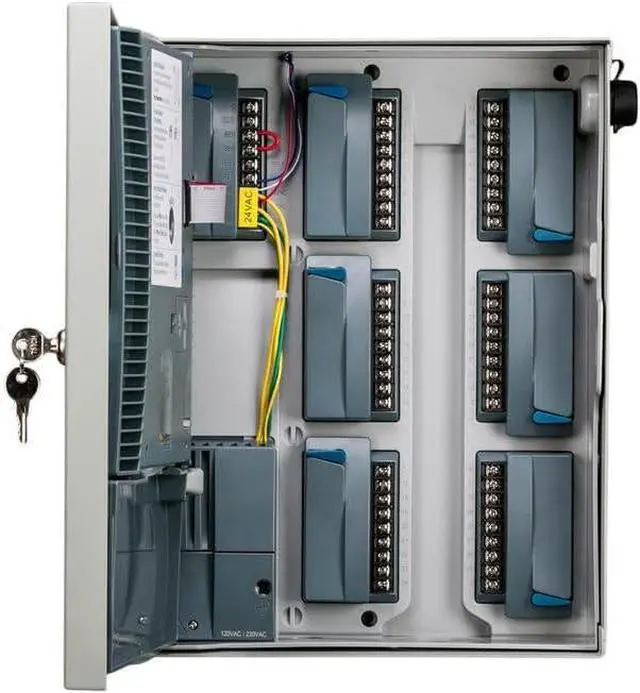

"The ICM-800 8 station expansion module is a professional-grade solution for increasing zone capacity on ICC2 and HCC irrigation controllers. Ideal for residential, commercial, and light industrial installs, this plug-in module allows fast system upgrades without tools or rewiring. Designed for use in plastic or metal enclosures, it supports a maximum of 38 stations in plastic cabinets and up to 54 stations in metal enclosures or pedestals. Each ICM-800 module includes an independent common terminal and delivers 24VAC, 0.56 amps per station, capable of running two solenoids simultaneously. The module integrates seamlessly with Hydrawise smart irrigation software and Solar Sync weather sensors, enabling remote scheduling, flow monitoring, and weather-based water adjustments. For advanced installs, it supports Centralus cloud control, SRR and ICR remote systems, and includes dedicated sensor inputs for flow and weather sensors. Contractors benefit from flexible programming, including four independent programs with eight start times each, customizable station delays up to 10 hours, rain delays up to seven days, and seasonal adjustments from 10 to 150 percent. The ICM-800 also features built-in memory backup, a self-diagnostic circuit breaker, Quick Check for field troubleshooting, and one-touch manual start and advance.

This module is UL listed and NEMA 3R rated for reliable operation in outdoor environments. "
