Water Flow Control LCD Display+G1"Flow Sensor Meter+G1"Solenoid Valve+12V power
- Controller will turn off the solenoid valve automatically when flow reach to the setting value you desire
- It can work various different flow sensor through adjust the K value.
- Display the REAL-TIME volume of liquid which passes per minute.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

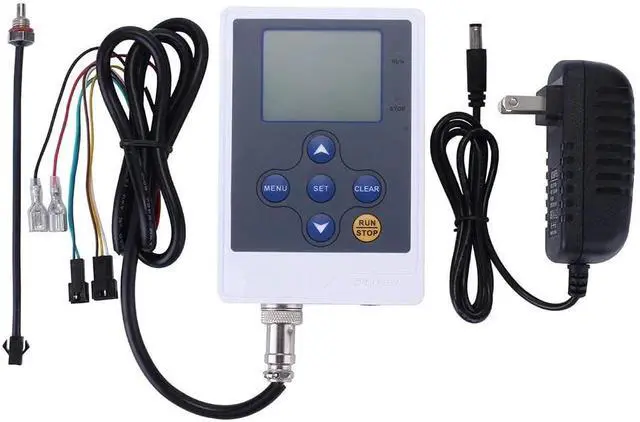

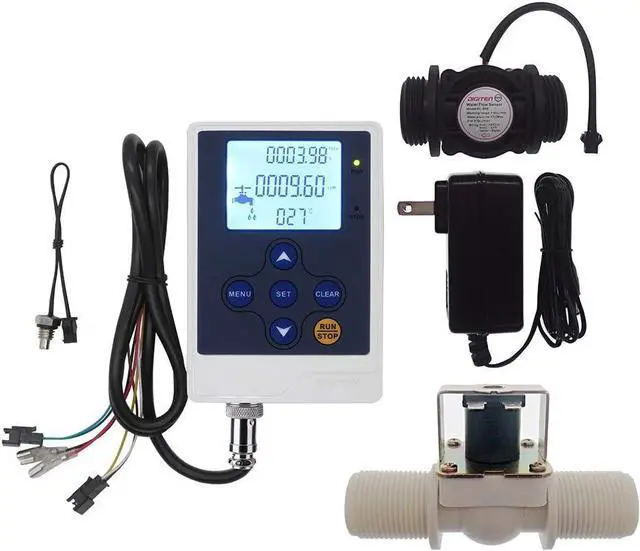

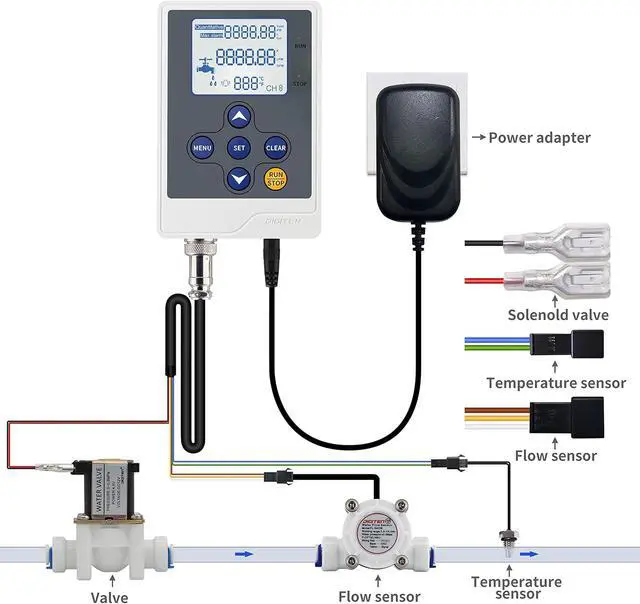

The controller come with flow meter, solenoid valve and power.
Easy to install and control. The flow sensor works for Android and PI system.
FEATURES
Quantitative control
Controller will turn off the solenoid valve automatically when flow reach to the setting value you desire
Monitor flow rate
Display the REAL-TIME volume of liquid which passes per minute
Work with all hall effect flow sensor
It can work various different flow sensor through adjust the K value
Volume unit
Display Liter or Gallon
Water meter
DFC15 can be used to measure the volume of water
Adjustable accuracy
Calibrate the accuracy through adjust the K parameter
Temperature monitor
Come with temperature sensor, it can measure liquid temperature

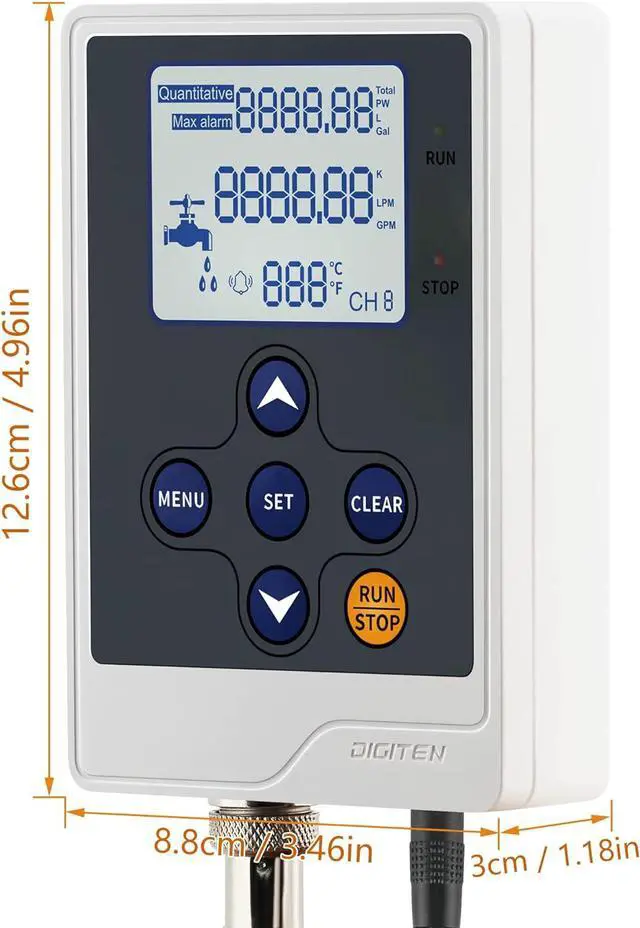

Easy-to-Read Front-Panel Liquid Crystal Display
Displays the flow total volume, flow rated and sensed temperature clearly; custom icons on the display indicate the controller working status at a glance
TECHNICAL SPECIFICATIONS
Controller Power Requirement: 12VDC
Power Adapter:
Input: 100-240VAC, Output: 12VDC, max 2A
Adapter lead length: 1m
Measuring Accuracy: ±1%
Output for Solenoid valve: 12VDC
Temperature Sensor: 0-120/32-212, NTC3950, Accuracy: ±1/±1 thread: M8
Max Total Volume: 999999 G/L
Quantitative Range: 1-9999 G/L
Flow range: 1-30L/min
Cable Length: 1m
Operation Environment: Temperature: 0-50/32-122 Relative Humidity: Packaging include
1 x DFC15 controller

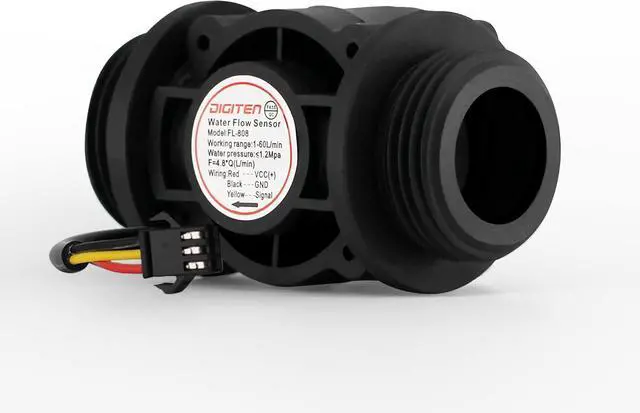

1 x G1" flow sensor

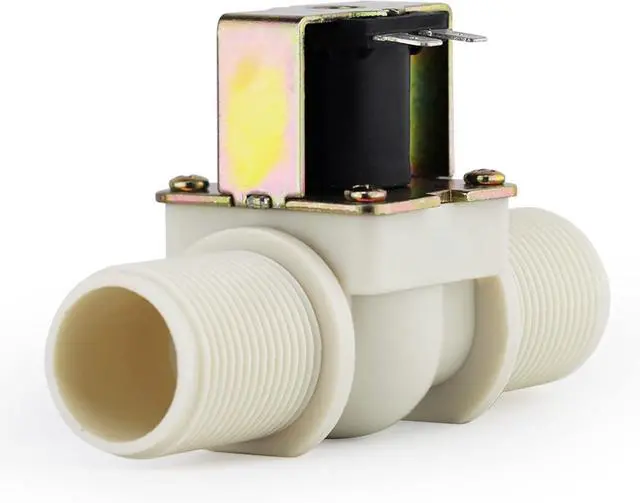

1 x G1" solenoid valve

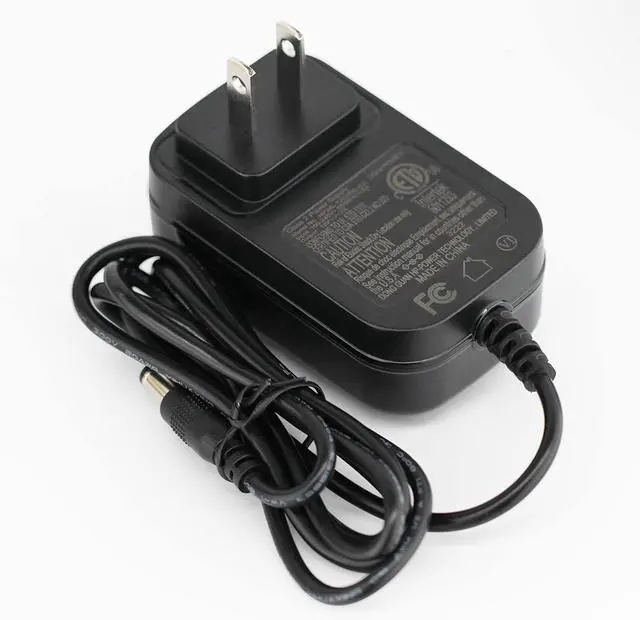

1 x AC100-240V power adapter
1 x Temperature sensor
1 x Instruction
Easy to install and control. The flow sensor works for Android and PI system.
FEATURES
Quantitative control
Controller will turn off the solenoid valve automatically when flow reach to the setting value you desire
Monitor flow rate
Display the REAL-TIME volume of liquid which passes per minute
Work with all hall effect flow sensor
It can work various different flow sensor through adjust the K value
Volume unit
Display Liter or Gallon
Water meter
DFC15 can be used to measure the volume of water
Adjustable accuracy
Calibrate the accuracy through adjust the K parameter
Temperature monitor
Come with temperature sensor, it can measure liquid temperature
Easy-to-Read Front-Panel Liquid Crystal Display
Displays the flow total volume, flow rated and sensed temperature clearly; custom icons on the display indicate the controller working status at a glance
TECHNICAL SPECIFICATIONS
Controller Power Requirement: 12VDC
Power Adapter:
Input: 100-240VAC, Output: 12VDC, max 2A
Adapter lead length: 1m
Measuring Accuracy: ±1%
Output for Solenoid valve: 12VDC
Temperature Sensor: 0-120/32-212, NTC3950, Accuracy: ±1/±1 thread: M8
Max Total Volume: 999999 G/L
Quantitative Range: 1-9999 G/L
Flow range: 1-30L/min
Cable Length: 1m
Operation Environment: Temperature: 0-50/32-122 Relative Humidity: Packaging include
1 x DFC15 controller
1 x G1" flow sensor
1 x G1" solenoid valve
1 x AC100-240V power adapter
1 x Temperature sensor
1 x Instruction
