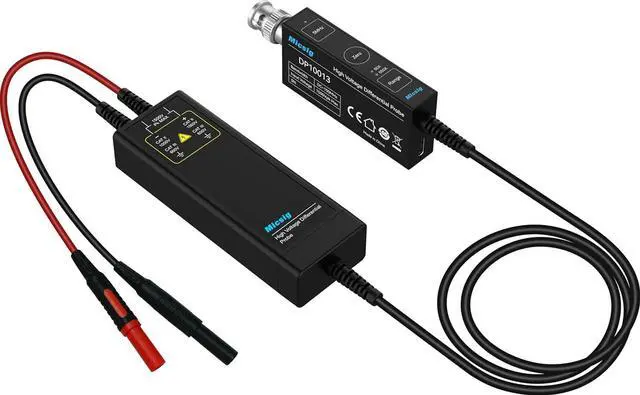

DP10013 High Voltage Differential Probe 1300V 100MHz 3.5ns Rise Time 50X/500X Attenuation
- Lightweight and portable, easy to carry.
- Designed for the measurement of high voltage differential signal, to meet the demand for floating measurement.

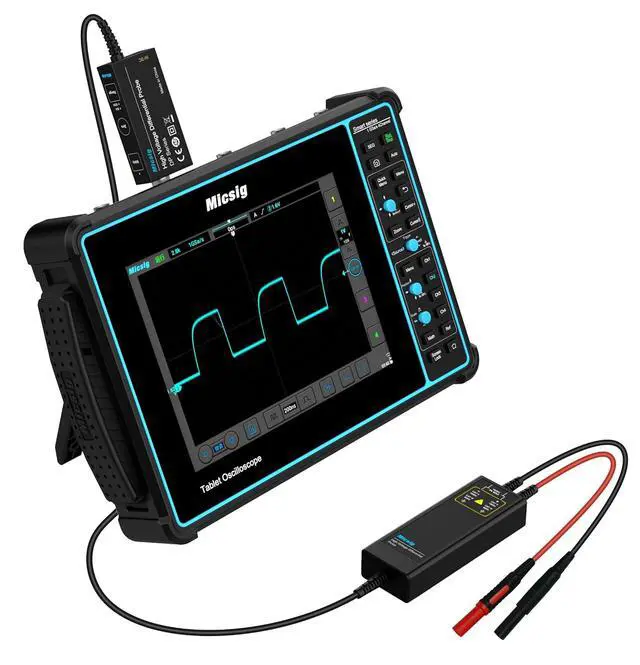

- Power supply USB DC 5V output, more portable while Oscilloscope has USB interface.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Simple design, it is easy and safe to use.

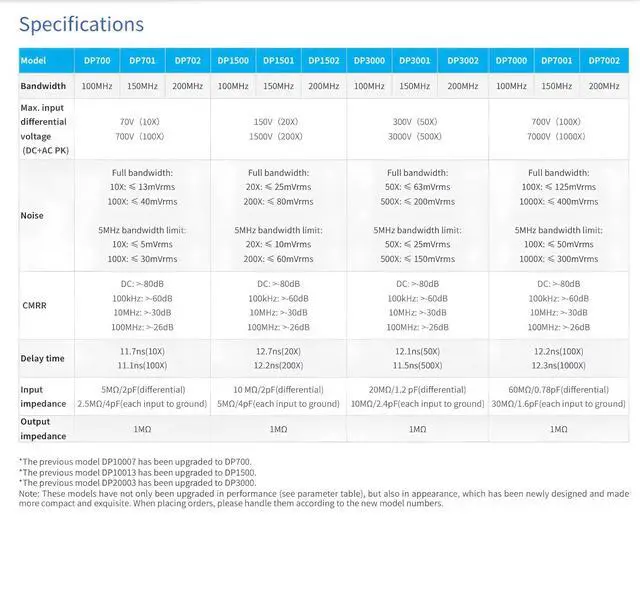

Maximum differential test voltage (DC+ACPK-PK): 130V (50X), 1300V (500X)
Floating measurements Typical applications: switching power supply design, motor control, voltage converters...
Bandwidth: 100MHz
Rise Time: 3.5 ns
Attenuation: 50X / 500X
Gain accurecy: ±2% Maximum Differential Test Voltage (DC+AC
PK-PK): 130V50X- 1300V500X Maximum input common mode voltage (DC+AC
PK-PK): 130V50X- 1300V500X
Input referred noise: 40mVrms50X- 230 mVrms500X)
Common Mode Rejection Ratio: 80dBDC) - 60dB (100KHz- 50dB1MHz
Input Impedance: 10M/1pF (differential) 5M/2pF (single-ended to ground
Output Voltage: 3V
Overrange Alarm: Button light flashes
Power Supply: DC 5VUSB
Supply Power: 0.85W
Dimension: 14.5 cm*6cm* 2.7 cm Garranty 1 year
Maximum differential test voltage (DC+ACPK-PK): 130V (50X), 1300V (500X)
Floating measurements Typical applications: switching power supply design, motor control, voltage converters...
Bandwidth: 100MHz
Rise Time: 3.5 ns
Attenuation: 50X / 500X
Gain accurecy: ±2% Maximum Differential Test Voltage (DC+AC
PK-PK): 130V50X- 1300V500X Maximum input common mode voltage (DC+AC
PK-PK): 130V50X- 1300V500X
Input referred noise: 40mVrms50X- 230 mVrms500X)
Common Mode Rejection Ratio: 80dBDC) - 60dB (100KHz- 50dB1MHz
Input Impedance: 10M/1pF (differential) 5M/2pF (single-ended to ground
Output Voltage: 3V
Overrange Alarm: Button light flashes
Power Supply: DC 5VUSB
Supply Power: 0.85W
Dimension: 14.5 cm*6cm* 2.7 cm Garranty 1 year
