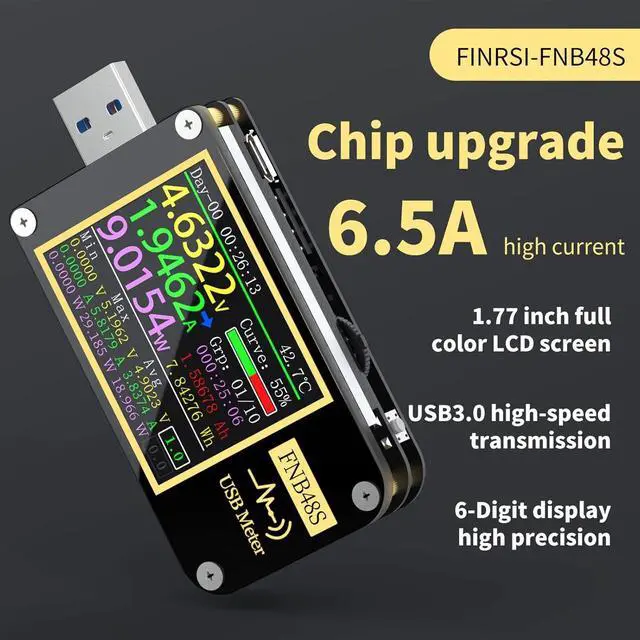

USB Power Meter, USB Tester 4-24V 0-6.5A USB Voltmeter Ammeter with Screen Flip Function Monitoring, High Precision Multifunctional USB Multimeter Voltage and Current Tester(FNB48)

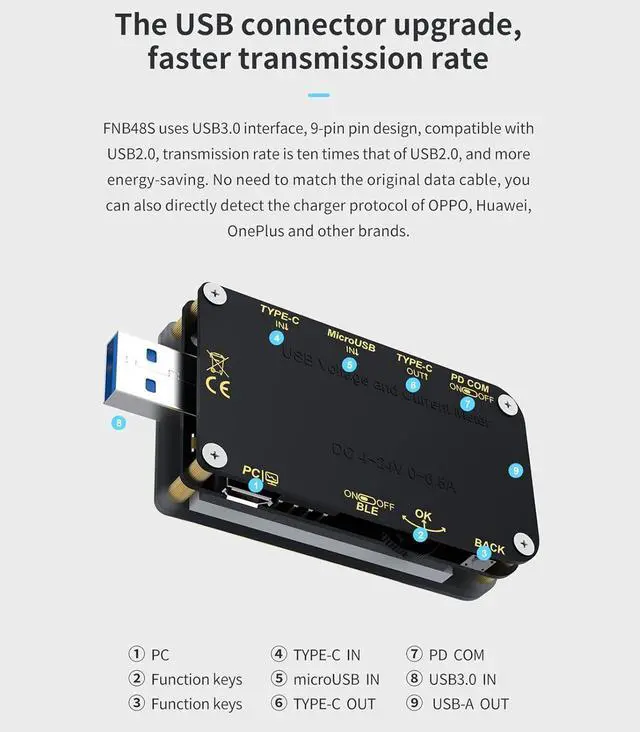

- Multifunctional USB TesterThis USB tester adopts USB3.0 interface and 9 pin design, it is backward compatible with USB2.0. It can monitor the voltage, current, power, resistance, capacity, and more. The USB tester can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks.
- Wide Range ApplicationThe usb voltmeter ammeter is great for testing and getting real data on various chargers and equipment, such as PC, laptop, desktop computer, mobile phone, power bank, cable. With this tester, you can see clearly what was happening when charging various USB devices, ranging from phones, to tablets and batteries.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

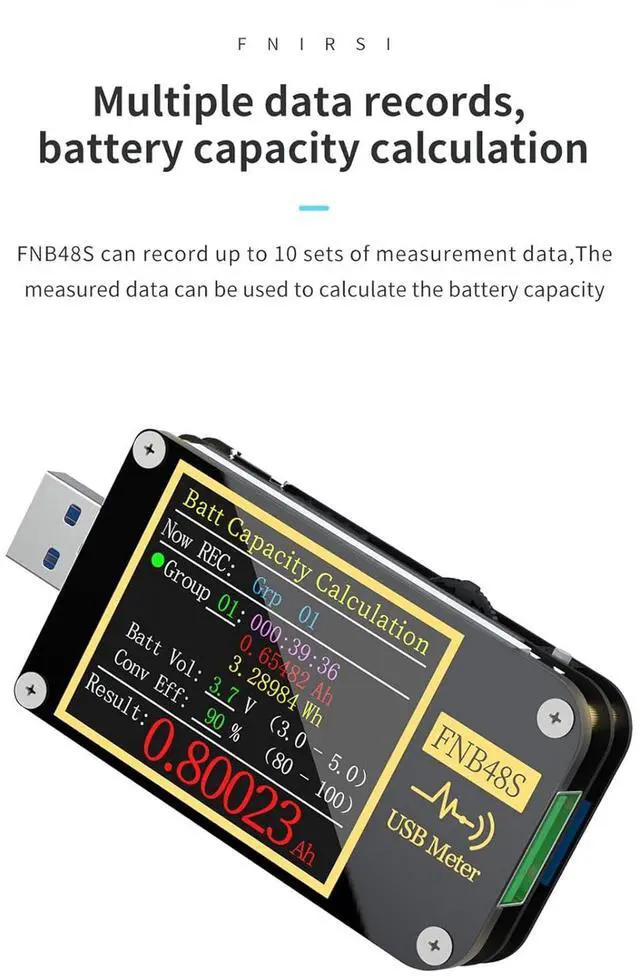

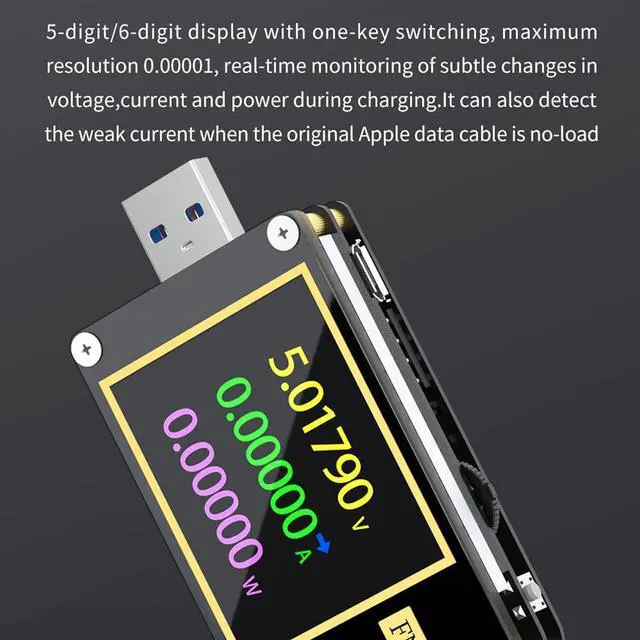

Realtime Monitoring & Data RecordingThe voltage and current tester supports one-touch switching of five-digit or six-digit display, with a maximum resolution of 0.00001, and can monitor subtle changes in voltage, current and power during the charging process in real time. It can record 10 sets of measurement data, and you can use the obtained data to calculate the battery capacity.

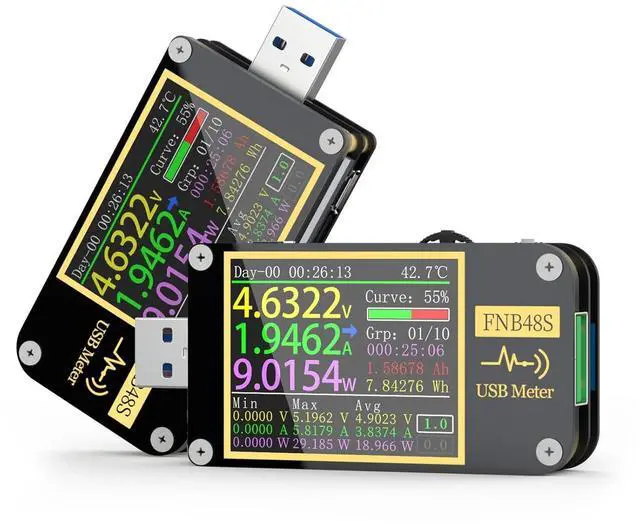

Bright Color Display InterfaceWith a large color display screen, the state of charging is clear at a glance. The USB voltmeter supports screen flip function, through sensing, the screen can be flipped freely, or you can turn off the direction recognition and long press the middle button to flip the screen. It can meet the needs of multi-angle reading and is more convenient to use.
Specification:
Item Type: USB Voltage Meter
Material: ABS
Use: Multifunctional rapid charging tester
Model: FNB48
Monitoring Voltage: 4 24V
Monitoring Voltage Resolutions: 0.00001V
Monitoring Voltage Accuracy: ±(0.2%+2)
Monitoring Current: 0 6.5A
Monitoring Current Resolution: 0.00001A
Monitoring Current Accuracy: ±(0.5%+2)
Monitoring Power: 0 156W
Monitoring Power Resolution: 0.00001W
Monitoring Power Accuracy: ±(0.5%+2)
Load Equivalent International Resistance: 0 9999.9
Load Equivalent International Resistance Resolution: 0.0001
Load Equivalent International Resistance Accuracy: ±(0.5%+2)
Capacity: 0 9999.99Ah
Power Consumption: 0 9999.99Wh

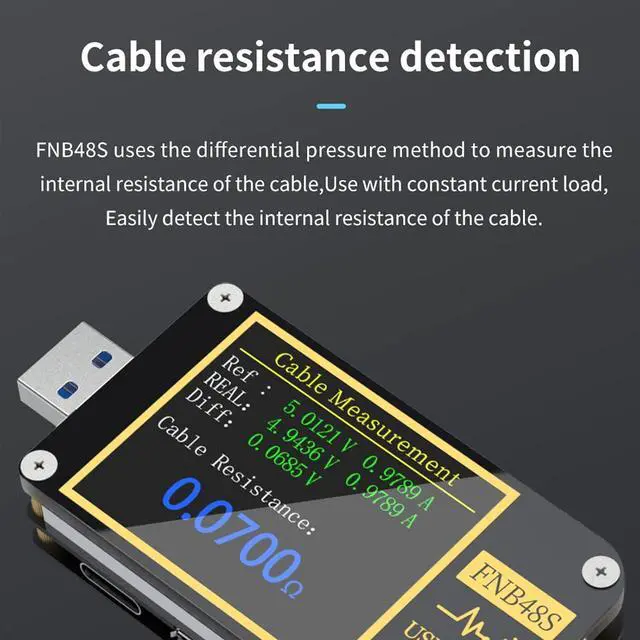

Cable Resistance: 0 9999.99
D+ or D- Voltage: 0 3.3V
D+ or D- Voltage Resolution: 0.001V
D+ or D- Voltage Accuracy: ±(1.0%+2)
Device Temperature: or
Device Temperature Resolution: 1 or 1
Device Temperature Accuracy: ±(1.2%+3) or ±(1.2%+4)
Package List:
1 x USB Voltage Meter
Bright Color Display InterfaceWith a large color display screen, the state of charging is clear at a glance. The USB voltmeter supports screen flip function, through sensing, the screen can be flipped freely, or you can turn off the direction recognition and long press the middle button to flip the screen. It can meet the needs of multi-angle reading and is more convenient to use.
Specification:
Item Type: USB Voltage Meter
Material: ABS
Use: Multifunctional rapid charging tester
Model: FNB48
Monitoring Voltage: 4 24V
Monitoring Voltage Resolutions: 0.00001V
Monitoring Voltage Accuracy: ±(0.2%+2)
Monitoring Current: 0 6.5A
Monitoring Current Resolution: 0.00001A
Monitoring Current Accuracy: ±(0.5%+2)
Monitoring Power: 0 156W
Monitoring Power Resolution: 0.00001W
Monitoring Power Accuracy: ±(0.5%+2)
Load Equivalent International Resistance: 0 9999.9
Load Equivalent International Resistance Resolution: 0.0001
Load Equivalent International Resistance Accuracy: ±(0.5%+2)
Capacity: 0 9999.99Ah
Power Consumption: 0 9999.99Wh
Cable Resistance: 0 9999.99
D+ or D- Voltage: 0 3.3V
D+ or D- Voltage Resolution: 0.001V
D+ or D- Voltage Accuracy: ±(1.0%+2)
Device Temperature: or
Device Temperature Resolution: 1 or 1
Device Temperature Accuracy: ±(1.2%+3) or ±(1.2%+4)
Package List:
1 x USB Voltage Meter
