Handheld Pneumatic Chamfering Tool, 45 Degrees Arc Corner, 1/4 Inch Air Inlet, Mini Air-Powered Chamfer Machine For Metal Wood Beveling and Deburring(C&R Angle Blades)

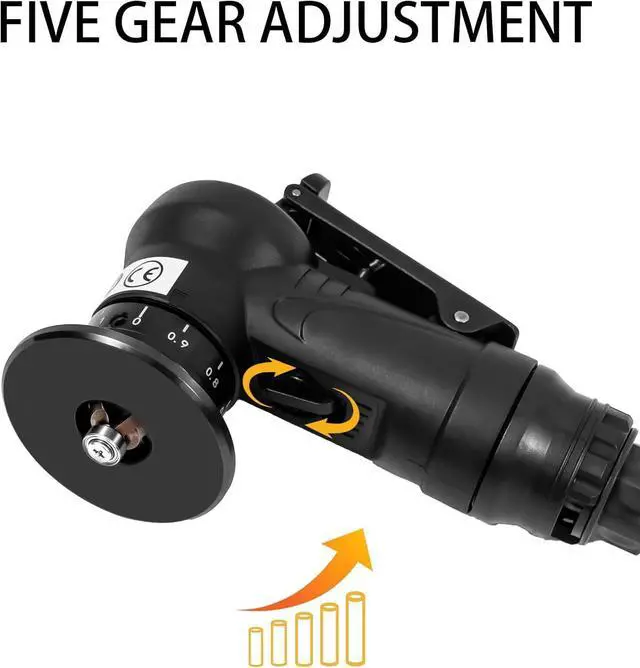

Enhanced Control: Offers adjustable speed and angle settings, and a safety switch to prevent accidental activation
Widely Used: Chamfer a wide range of angles, edges, and materials including steel, aluminum, copper, acrylic, and wood


Description:
This power angle grinder is designed to effortlessly chamfer a variety of angles, edges, and materials, including steel, aluminum, copper, acrylic, and wood. With specialized C angle and R-angle blades, this beveling tool caters to both metalworking and woodworking needs with precision and ease. The user-friendly design allows for easy one-handed operation, while the adjustable speed and angle settings provide enhanced control and flexibility. Whether you're working on round holes, irregular edges, arcs, or straight edges, this chamfering tool offers convenience, efficiency, and safety with every use.

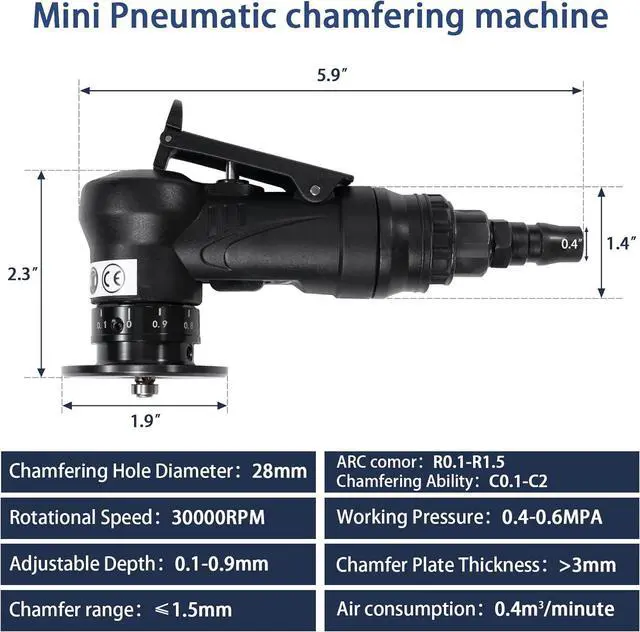

Specification:
Chamfering Hole Diameter: 8 mm
Rotational Speed: 30000 RPM
Adjustable Depth: 0.1 - 0.9 mm
Chamfer range: 1.5 mm

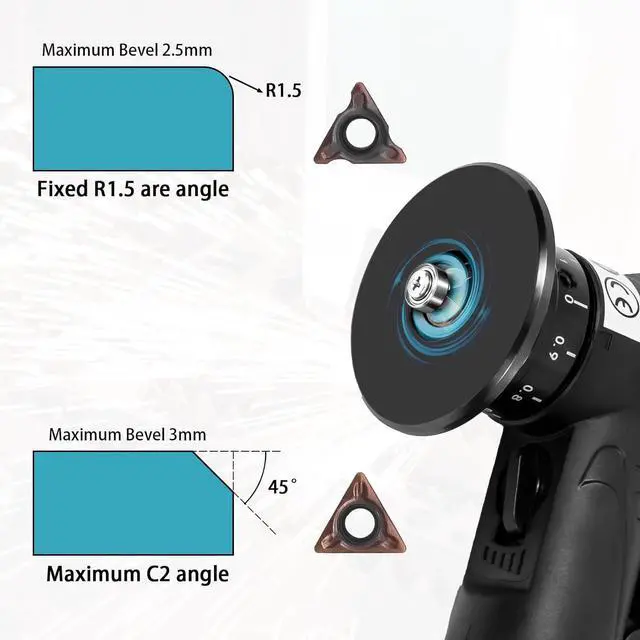

ARC Corner: R 0.1 -R 1.5
Chamfering Ability: C 0.1 -C 2
Chamfer Plate Thickness: >3 mm

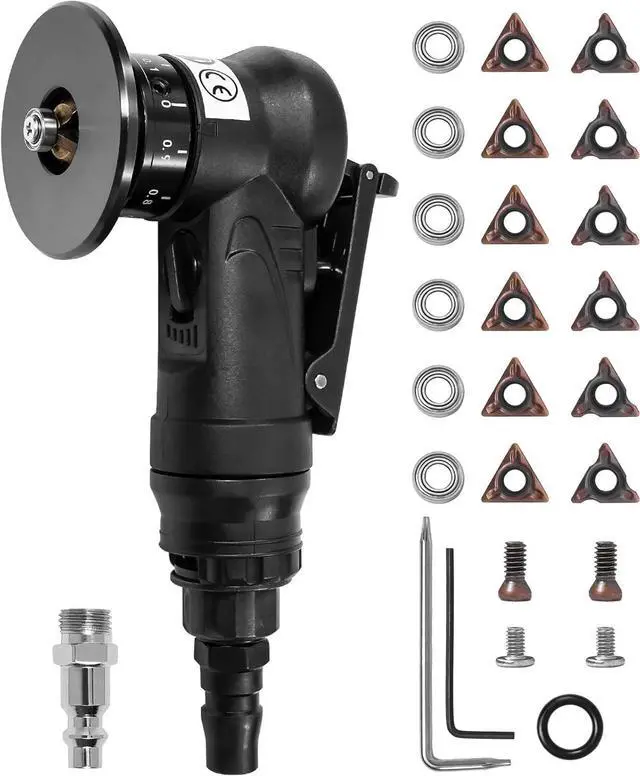

Package Content:
6 R Blades
6 C Blades
6 Bearings for R/C Blades
2 Bearing Screws
2 Blade Screws
1 Rubber Ring
2 Wrenches
1 Air Plug
1 Air chamfering tool

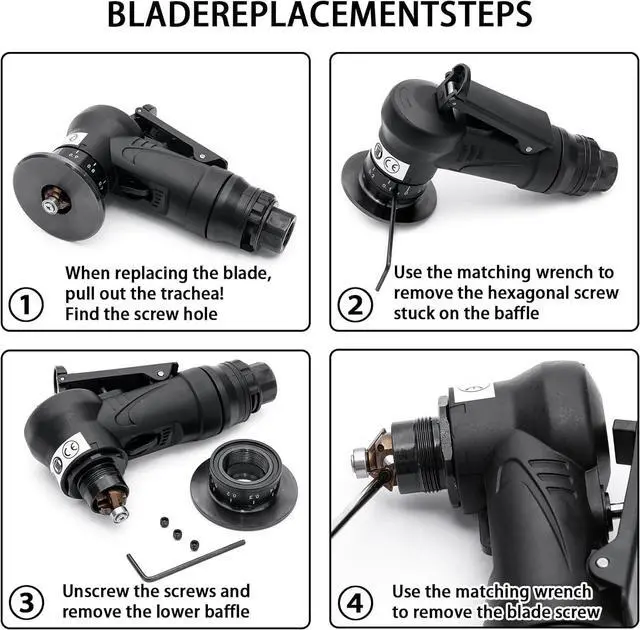

To replace the blade:

1. Use a hexagon wrench to loosen the plum screw and remove the baffle plate.

2. Use a ring wrench to remove the blade screw and take out the old blade.

3. Replace the old blade with a new one.

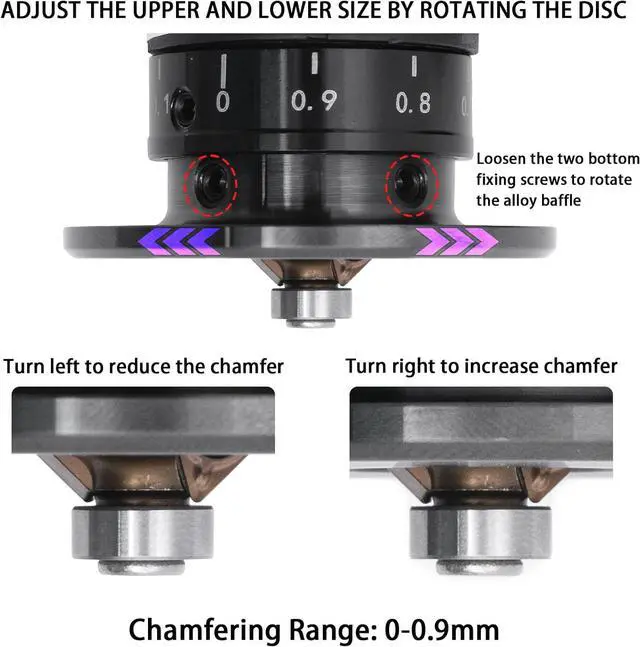

To adjust the chamfer size:

1. Loosen the 2 screws on the black gear plate using a thinner wrench.

2. Twist the black gear plate left and right to adjust the chamfer size as needed.

3. Secure the 2 screws back to their original position to fix the adjustment.
