2 in 1 Mini Pneumatic Chamfering Machine, 45° Arc Corner Beveling Trimming Deburring Machine 30000RPM Handheld Chamfering Air Chamfer Tool with 1/4 Inch Air Inlet (C&R Angle Blades,Orange)
- Mini pneumatic chamfering machine: This air chamfer tool adopts lightweight design, small and exquisite, smooth cutting, low vibration during cutting, and fast cutting of right angles and rounded corners. You can easily operate it with one hand. The chamfering machine kit is equipped with easily replaceable angle blades, which is easy and quick to use without complicated operation steps. The safety switch is used to prevent accidental touch and protect the user's safety at all times.

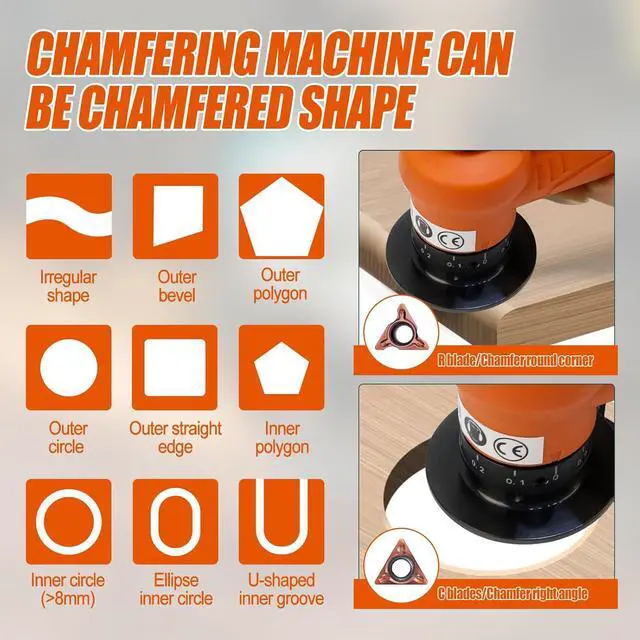

- Multi-function: Multi-function chamfering, round holes, irregular edges, arcs, straight edges can be chamfered. Suitable for steel, aluminum, copper, acrylic, woodworking edge banding, etc. The C angle is angular when it is chamfered, and C angle is mostly used for metal chamfering; R angle is rounded when it is chamfered, and R angle is mostly used for woodworking chamfering. Note: stone, titanium alloy, glass material or hard materials after heat treatment and welding cannot be chamfered.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

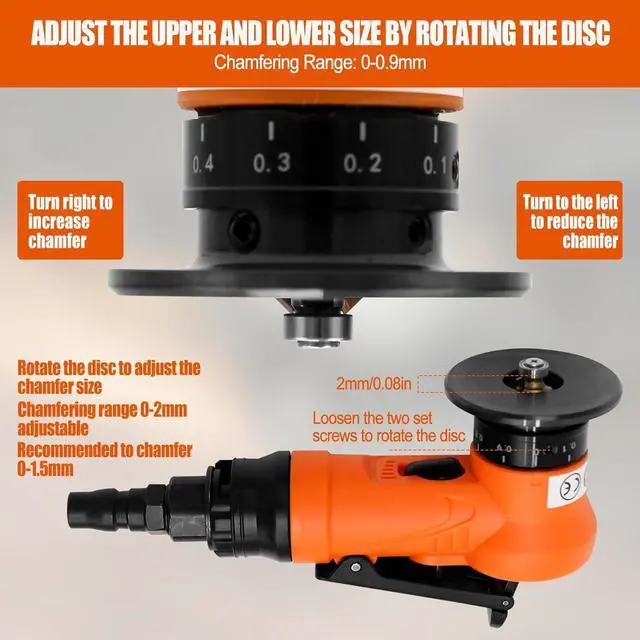

Adjustable speed and angle mini pneumatic chamfering machine: 5-speed button freely adjusts the air intake volume, precise processing saves gas, and can freely adjust the gear speed you need. Rotate the disc to adjust the chamfer size.
Stable operation,
prevent blockage: This 45 degree pneumatic mini chamfering machine pneumatic tool has stable operation, waterproof and dustproof, stable performance and long service life. Designed with 1/4 air inlet with metal filter to prevent foreign matter from entering and clogging.
speed: 30000 RPM, air consumption 0.4 /min. Idling speed 30000 RPM, air consumption 0.4 /min, air
inlet: 1/4 inch PT.
Trimming ability:
chamfer: C 0.1 -C 1.5, arc
angle: R 0.1 -R 1.5, adjustable
depth: 0.1 mm- 0.9 mm. (See pictures for details)
Description:
Product name: Mini Pneumatic Chamfering Machin
Material:
Mainly made of plastic steel material
Parameters:
Chamfering Hole Diameter8mm
Chamfering Ability: C 0.1 -C2 (C angle) /ARC cormor: R 0.1 -R 1.5 (R angle)
Rotational Speed: 30000RPM
Working Pressure: 0.4 - 0.6MPA
Adjustable Depth: 0.1 - 0.9 mm
Chamfer Plate Thickness: >3mm
Chamfer range: 1.5 mm
Air consumption: 0.4 m³/minute
Available range:
Minimum aperture8mm, minimum aperture greater than or equal to 8mm
Minimum radius4mm, minimum radius greater than or equal to 4mm
Minimum depth5mm, minimum depth greater than or equal to 5mm
Thinnest thickness3mm, thinnest thickness greater than or equal to 3mm

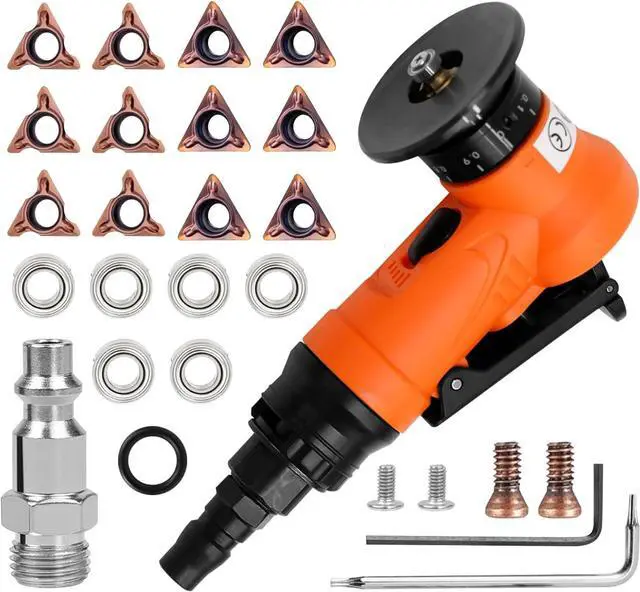

Package includes:
1* mini orange chamfering machine, 6* C angle blades, 4* bearings, 1*connector
OR
1* mini orange chamfering machine, 6* R angle blades, 4* bearings, 1*connector
OR
1* mini orange chamfering machine, 6* Rangle angle blades, 6* C angle blades, 6* bearings, 1*connector
Notice:
Drop 3.4 drops of pneumatic tool oil before each use to clean the movement and lubricate, making the machine life longer

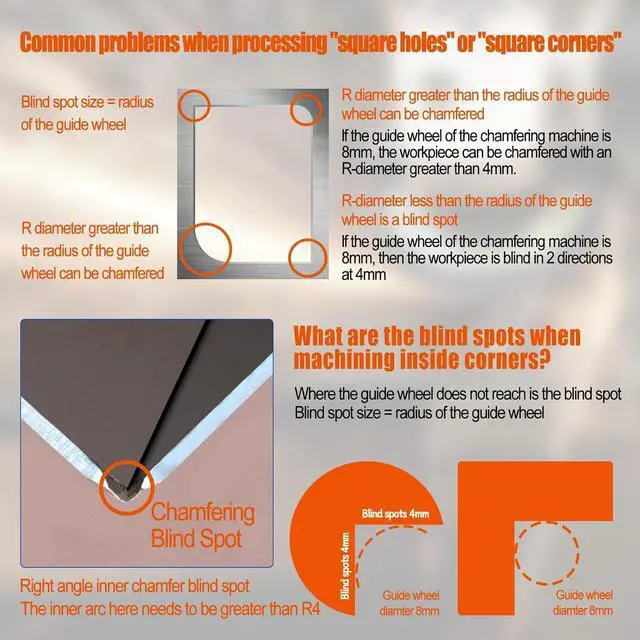

Blind spot size = radius of the guide wheel
R diameter greater than the radius of the guide wheel can be chamfered
R diameter greater than the radius of the guide wheel can be chamfered
lf the guide wheel of the chamfering machine is 8mm, the workpiece can be chamfered with an R-diameter greater than 4mm.
R-diameter less than the radius of the guide wheel is a blind spot
lf the guide wheel of the chamfering machine is 8mm, then the workpiece is blind in 2 directions at 4mm
Stable operation,
prevent blockage: This 45 degree pneumatic mini chamfering machine pneumatic tool has stable operation, waterproof and dustproof, stable performance and long service life. Designed with 1/4 air inlet with metal filter to prevent foreign matter from entering and clogging.
Specifications
of 45° arc corner beveling trimming deburring machine: 1/4 inch metal filter, idlingspeed: 30000 RPM, air consumption 0.4 /min. Idling speed 30000 RPM, air consumption 0.4 /min, air
inlet: 1/4 inch PT.
Trimming ability:
chamfer: C 0.1 -C 1.5, arc
angle: R 0.1 -R 1.5, adjustable
depth: 0.1 mm- 0.9 mm. (See pictures for details)
Description:
Product name: Mini Pneumatic Chamfering Machin
Specifications
:Material:
Mainly made of plastic steel material
Parameters:
Chamfering Hole Diameter8mm
Chamfering Ability: C 0.1 -C2 (C angle) /ARC cormor: R 0.1 -R 1.5 (R angle)
Rotational Speed: 30000RPM
Working Pressure: 0.4 - 0.6MPA
Adjustable Depth: 0.1 - 0.9 mm
Chamfer Plate Thickness: >3mm
Chamfer range: 1.5 mm
Air consumption: 0.4 m³/minute
Available range:
Minimum aperture8mm, minimum aperture greater than or equal to 8mm
Minimum radius4mm, minimum radius greater than or equal to 4mm
Minimum depth5mm, minimum depth greater than or equal to 5mm
Thinnest thickness3mm, thinnest thickness greater than or equal to 3mm
Package includes:
1* mini orange chamfering machine, 6* C angle blades, 4* bearings, 1*connector
OR
1* mini orange chamfering machine, 6* R angle blades, 4* bearings, 1*connector
OR
1* mini orange chamfering machine, 6* Rangle angle blades, 6* C angle blades, 6* bearings, 1*connector
Notice:
Drop 3.4 drops of pneumatic tool oil before each use to clean the movement and lubricate, making the machine life longer
Blind spot size = radius of the guide wheel
R diameter greater than the radius of the guide wheel can be chamfered
R diameter greater than the radius of the guide wheel can be chamfered
lf the guide wheel of the chamfering machine is 8mm, the workpiece can be chamfered with an R-diameter greater than 4mm.
R-diameter less than the radius of the guide wheel is a blind spot
lf the guide wheel of the chamfering machine is 8mm, then the workpiece is blind in 2 directions at 4mm
