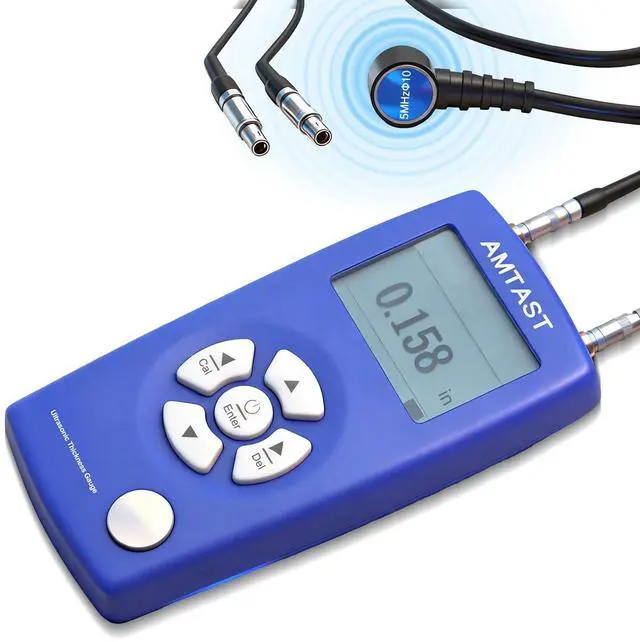

Thickness Gauge Digital Ultrasonic Thickness Meter Range 0.8-350mm, 0.03-13.8inch Handheld Ultrasonic Thickness Tester Gauge AMA006E

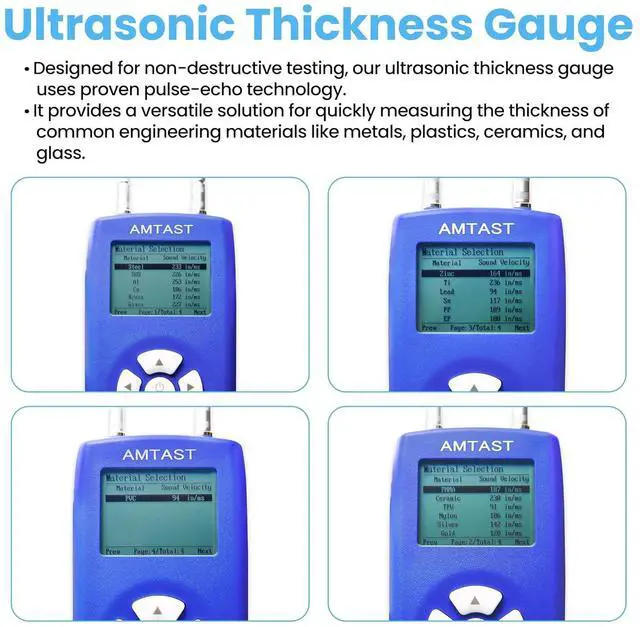

- This ultrasonic thickness gauge adopts the principle of the reflected plus ultrasonic measurement, which is specialized in thickness measurement of materials that can transmit ultrasonic waves such as metals (e.g. steel, aluminum, copper, etc.), plastics, ceramics, glass, etc.
- The AMA006E thickness gauge instrument employs a professional design of time-chip with a resolution of up to 0.01mm.
- Can measure a variety of materials like steel, aluminum, copper, glass, including iron, plastics, toughened tile, brass, gold, silver, zinc, water (at 20°C) and other materials.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

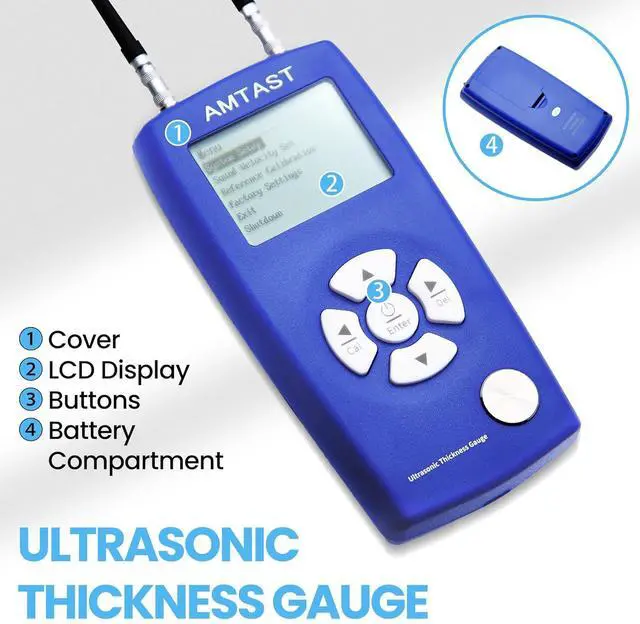

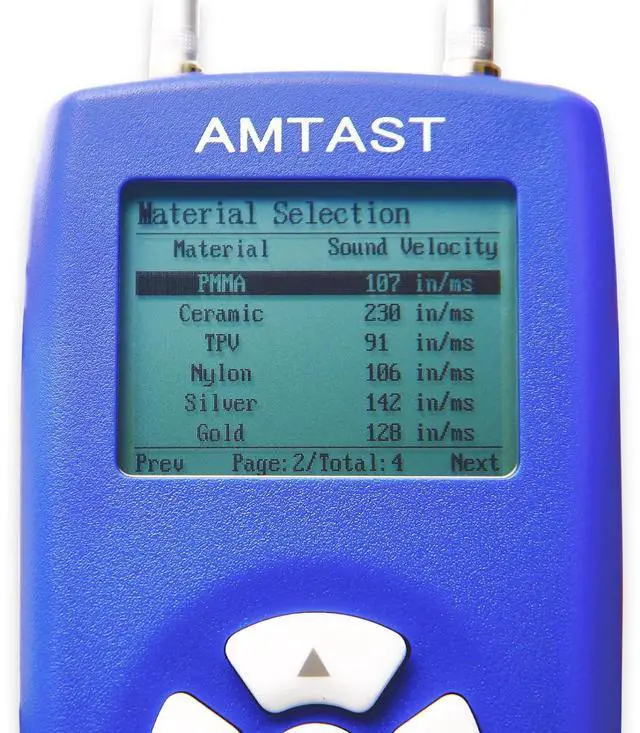

Easy to use. According to the users manual and interface buttons, it is easy to measure thickness, adjust ultrasonic velocity or select unit (mm or inch).
Designed according to European Unions CE safety norms. The digital ultrasonic thickness meter is designed according to laboratory standards.
1.
Measuring Range: 0.8 ~350mm 0.03 ~ 13.8" (45# steel)
2.
Resolution: 0.8
~100mm: 0.01 mm; 100-350mm: 0.1 mm
3.
Accuracy: 0.8
~10mm: ± 0.05 mm; 10~350mm: ± 0.5 %
4.
Sound Velocity Range: 1000~9999m/s
5.
Probe: 5MHz 10mm double-crystal probe
6.
Display: 240 x 160 dot matrix LCD
7.
Unit: mm/inch
8.
Host Size: 142*72*28mm
9.
Weight: About 230g
10.
Operation Temperature Range: -10~50, 0~85%RH
11.
Storage Temperature Range: -10~60, 0~85%RH
Designed according to European Unions CE safety norms. The digital ultrasonic thickness meter is designed according to laboratory standards.

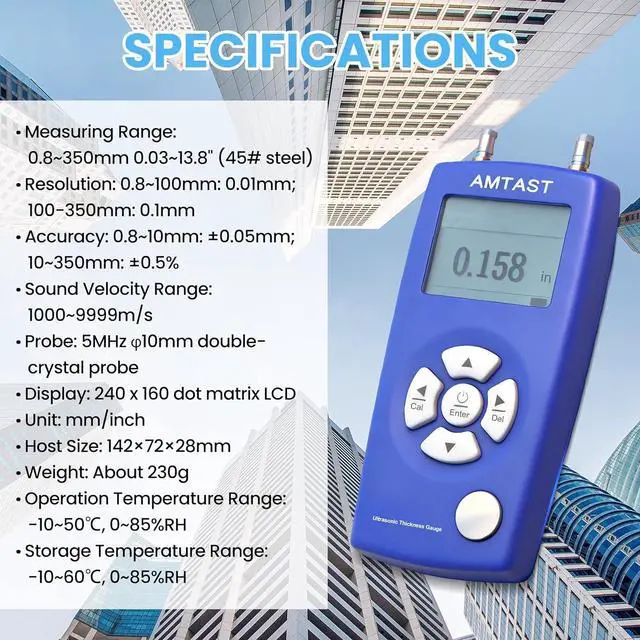

Specifications
:1.
Measuring Range: 0.8 ~350mm 0.03 ~ 13.8" (45# steel)
2.
Resolution: 0.8
~100mm: 0.01 mm; 100-350mm: 0.1 mm
3.
Accuracy: 0.8
~10mm: ± 0.05 mm; 10~350mm: ± 0.5 %
4.
Sound Velocity Range: 1000~9999m/s
5.
Probe: 5MHz 10mm double-crystal probe
6.
Display: 240 x 160 dot matrix LCD
7.
Unit: mm/inch
8.
Host Size: 142*72*28mm
9.
Weight: About 230g
10.
Operation Temperature Range: -10~50, 0~85%RH
11.
Storage Temperature Range: -10~60, 0~85%RH
