12 Pack SS3 Pan Float Switch with Condensate Overflow Detection, SS3 Condensate Overflow Switch, Water Leak Detector for HVAC System Drain Pans, Install on Primary and Auxiliary Drain Pans

Be the first to review this product...

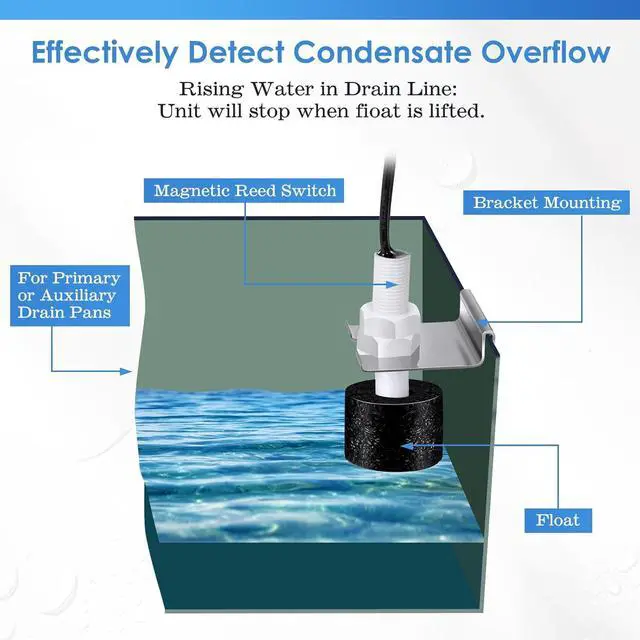

Effectively Detect Condensate Overflow: The SS3 condensate overflow switch features a water sealed magnetic reed switch, effectively detects clogged air conditioning condensate drains and shuts off the system to prevent water damage to floors, wall and ceilings
Protect Your HVAC System: The emergency shutoff float switch activates when excess water is detected in the pan due to drain blockage and automatically shuts off the HVAC system, preventing system damage and safeguarding your home

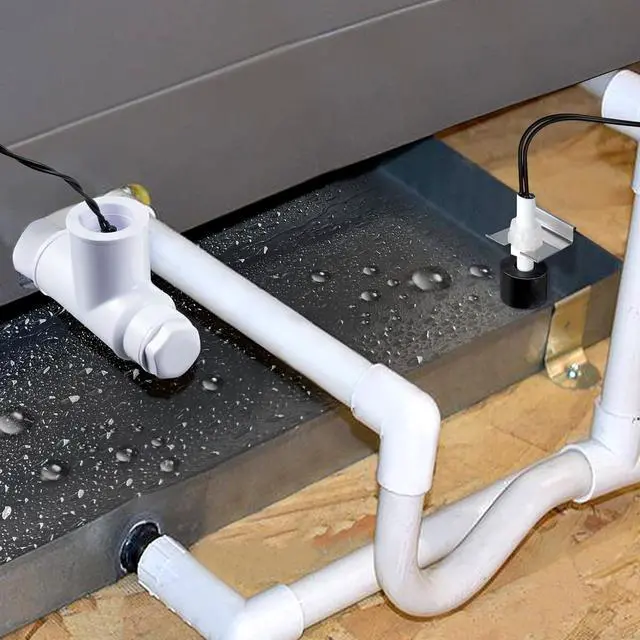

Application: The specially designed steel mounting bracket clips firmly over the edge of most drain pans; The slim profiled SS3 can be installed on primary or auxiliary drain pan; The magnetic feed switch allows it to be installed off center and still perform correctly

Overview

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

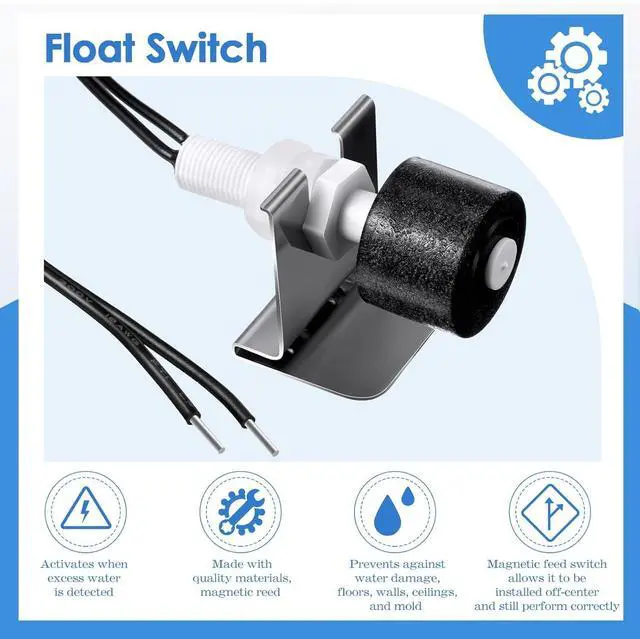

Reliable Performance: Our AC pan float switch is made with non rust and non sticking materials, uniquely designed, magnetic reed switch will not stick or rust

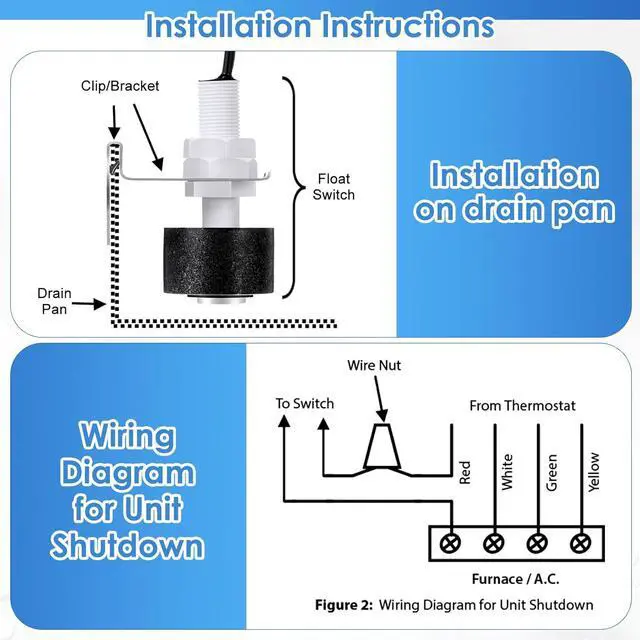

Easy To Install: The AC Float Switch is designed for easy Installation; "Quick installation", simply attach the switch to the side of the pan and connect the wires using the included nuts to the HVAC system; Condensate overflow switch can be connected to either the red or yellow (thermostat) wires

If you're concerned about your furniture, floors, wall and ceilings getting soaked from condensation leaks while using your HVAC, installing
SS3 condensate overflow switch
is highly recommended.

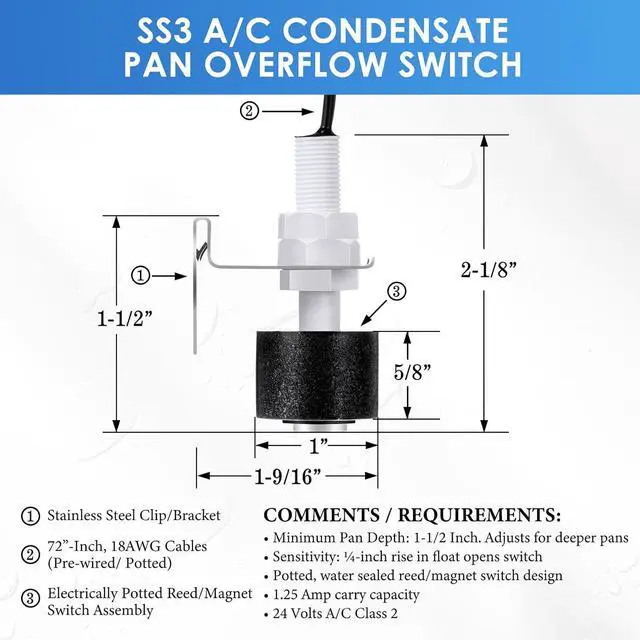

Specification:

Model: SS3
Wire length 6feet ( 1.8M )
Application: For Installation on Primary & Auxiliary Drain Pans

REQUIREMENTS:

Minimum Pan Depth: 1-1/2 Inch. Adjusts for deeper pans
Sensitivity: 4-inch rise in float opens switch
Potted, water sealed reed/ magnet switch design
1.25 Amp carry capacity
24 Volts A/C Class 2

Package Included:

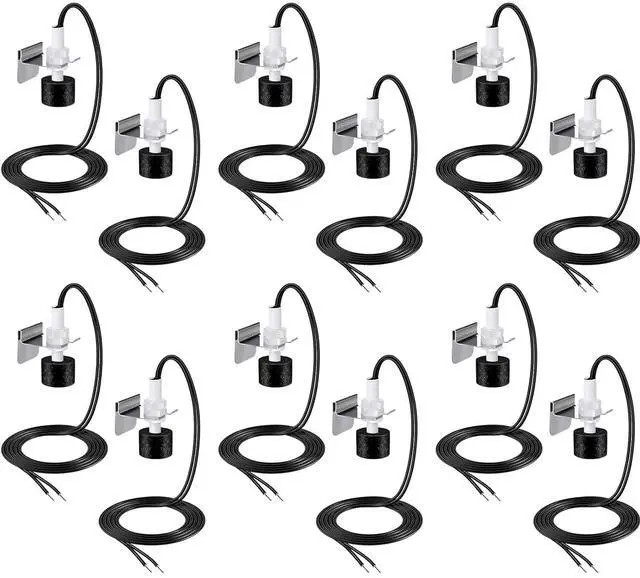

12 x SS3 Condensate Overflow Switch
1 x Instruction

Notice:

We come with instructions, please read and comply with all warnings, cautions and instructions prior to starting installation, make sure the installation goes smoothly.
