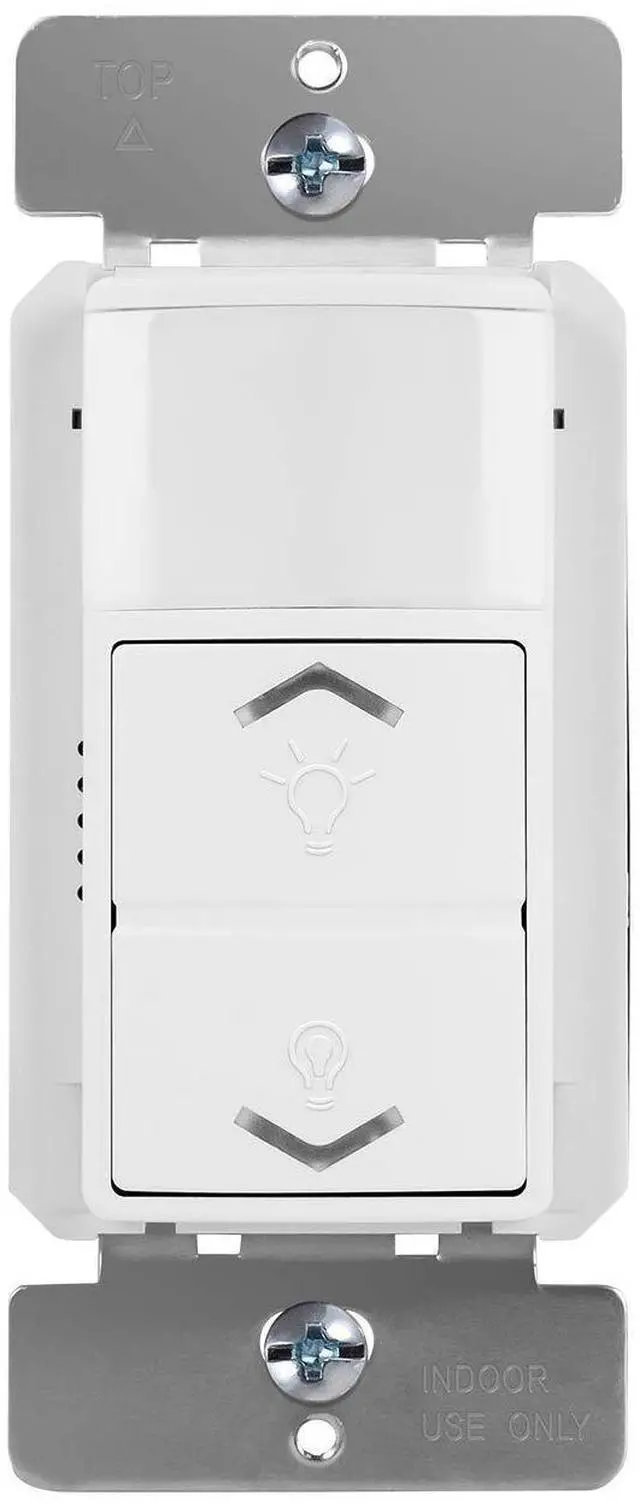

Occupancy Vacancy PIR Motion Sensor with 0-10V Dimmer Light Switch, 800W Electronic Ballast or LED Driver, Single Pole Low-Voltage Dimmer, TDODS5-010, White
- Motion sensor switch with low voltage 0-10 dimming, designed to control electronic ballasts or dimmable LED drivers, it allows you to dim the brightness levels of low voltage lighting

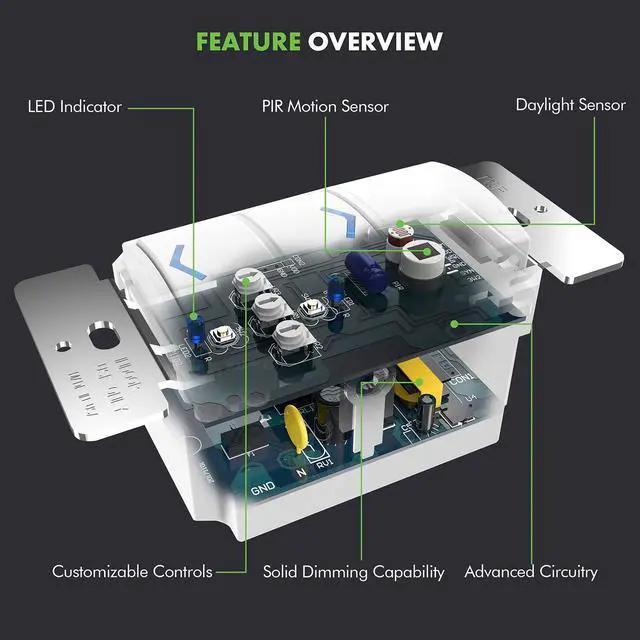

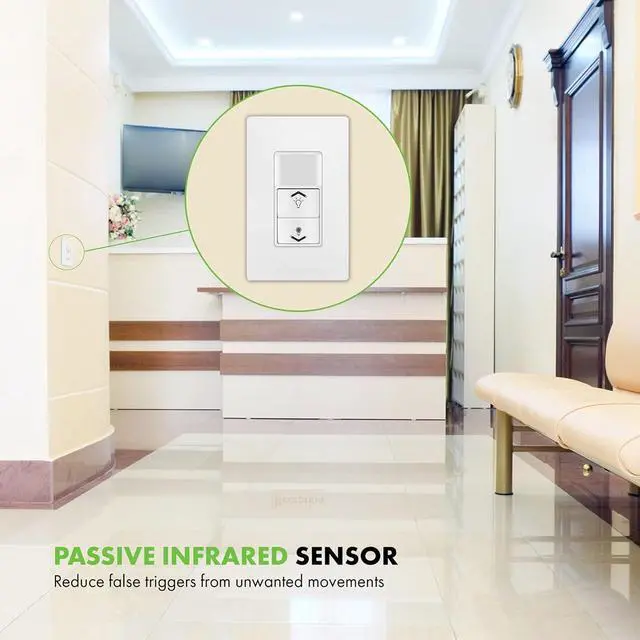

- Motion detection: Passive infrared (PIR) sensor reduces false triggers from unwanted movements and turns lights on when motion is detected. Lights will automatically turn off when the selected time delay expires
- Dimmer gradually brightens and fades lights by holding the top or bottom buttons; lights turn on to last used brightness level
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

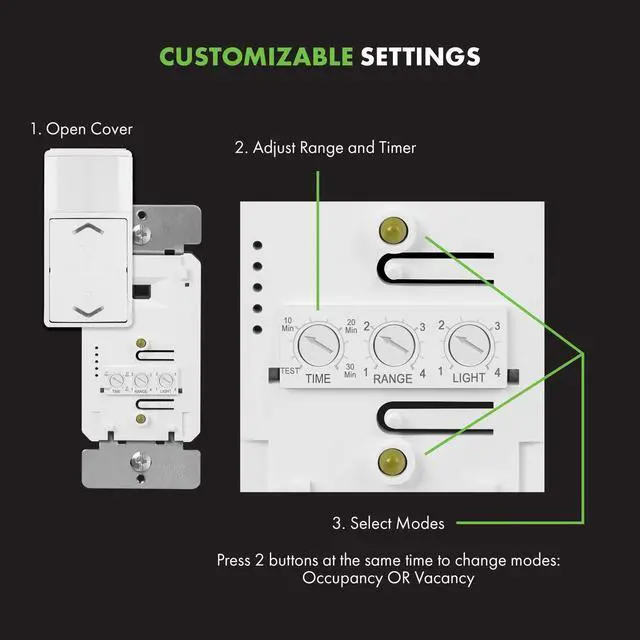

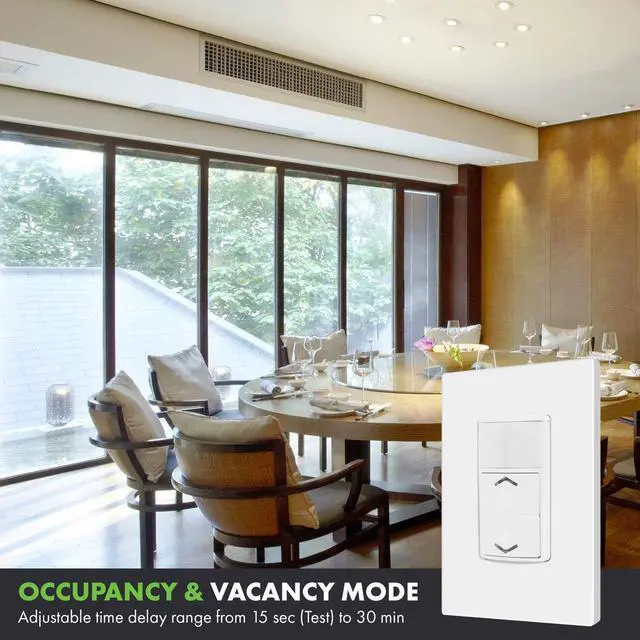

Adjustable: Variable time delay from 15 sec (Test) to 30 min, detection range, ambient light level
Specifications

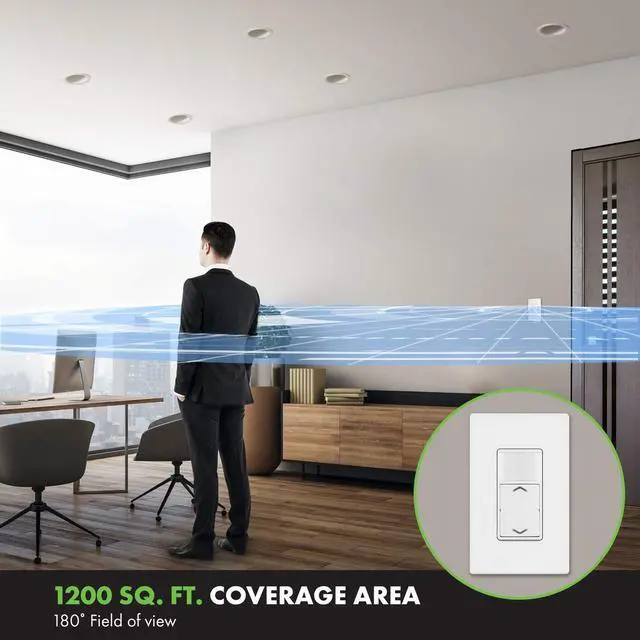

: For use with dimmable electronic fluorescent ballasts or dimmable LED drivers ONLY, neutral wire required, 120-277VAC, 800W max, 1200 sq ft coverage area, single-pole, wall plate not included, UL listedWarranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Group Can Trading Limited Return Policy
