USB Logic Analyzer, 16 Channels, 400MHz Sampling Rate, 16G Sampling Depth, 256Mbits Memory, USB 2.0 Interface for PC Analysis on WinXP/10 Mac OS Linux (DSLogic Plus)

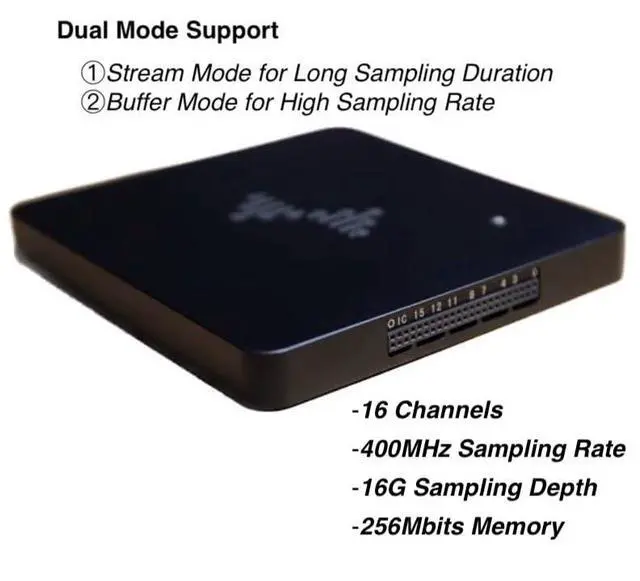

- 16 channels dual-mode support: Stream mode captures and transfers data in real time for long sample duration; Buffer mode captures and stores data temporarily for high sample rate

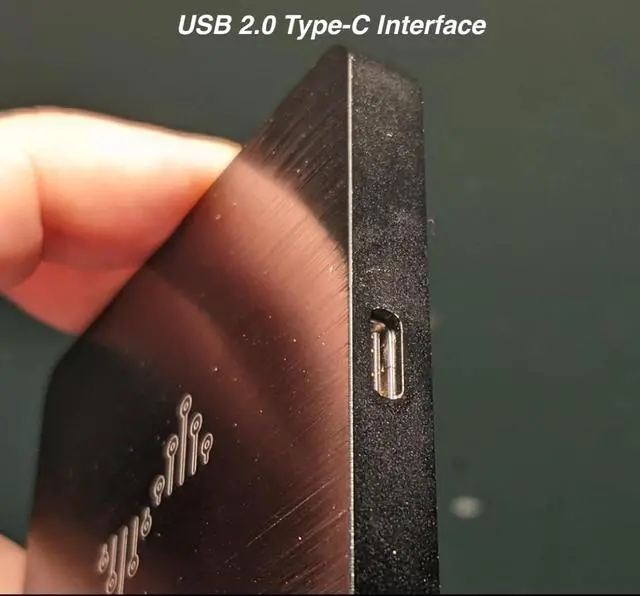

- USB 2.0 Type-C interface with up to 16G sample depth in stream mode
- Support for adjustable threshold and shielded wires for a better, cleaner waveform
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
256Mbits on-board SDRAM memory with multiple buffer modes

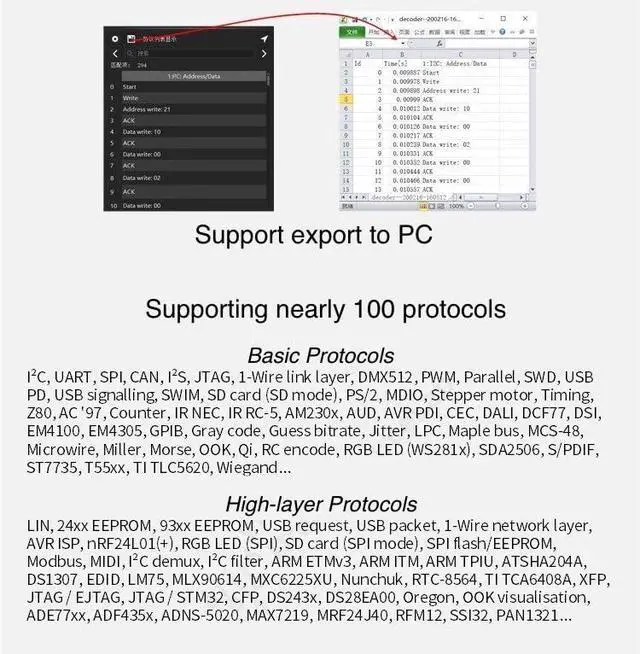

Compatibility with WinXP-Win10, macOS, and Linux, supporting nearly 100 protocol decoders, and being open-source on Github
SPECIFICATION
-Model: DSLogic Plus
-Channel: 16
-USB transmission rate: USB 2.0 (480bps)
-Sampling rate under buffer mode: 400MHz @ 4 channels / 200MHz @ 8 channels / 100MHz @ 16 channels
-Sampling rate under stream mode: 100MHz @ 3 channels / 50MHz @ 6 channels / 25MHz @ 12 channels / 20MHz @ 16 channels
-Min. sampling pulse width: 5ns
-Max. sampling signal: 100MHz
-Max. sampling depth: 16G under stream mode / 256M under buffer mode
-Max. sampling duration in stream mode: 160s @ 100M / 4H @ 1M / 19D @ 10K
-Hardware memory: 256Mbits
-Threshold: 0-5V ( 0.1V step)
-Input voltage: -30V~+30V
-Input impedance: 250K//~13pF
-State sampling: max. 50MHz
-Operation System Supported: Win, Mac OS, Linux
-Size: 3.1 * 2.9 * 0.4 in
PACKAGE

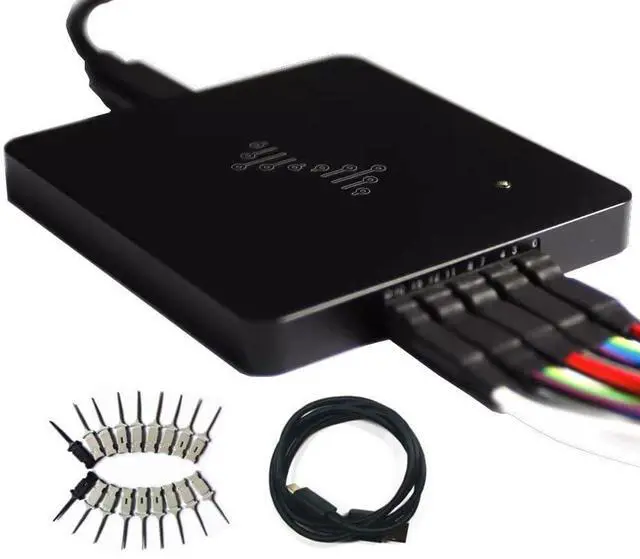

-1 x Logic Analyzer
-4 x Group of Shielded Wires
-1 x USB 2.0 Cable
-16 x Test Hook
-1 x English Manual
Compatibility with WinXP-Win10, macOS, and Linux, supporting nearly 100 protocol decoders, and being open-source on Github
SPECIFICATION
-Model: DSLogic Plus
-Channel: 16
-USB transmission rate: USB 2.0 (480bps)
-Sampling rate under buffer mode: 400MHz @ 4 channels / 200MHz @ 8 channels / 100MHz @ 16 channels
-Sampling rate under stream mode: 100MHz @ 3 channels / 50MHz @ 6 channels / 25MHz @ 12 channels / 20MHz @ 16 channels
-Min. sampling pulse width: 5ns
-Max. sampling signal: 100MHz
-Max. sampling depth: 16G under stream mode / 256M under buffer mode
-Max. sampling duration in stream mode: 160s @ 100M / 4H @ 1M / 19D @ 10K
-Hardware memory: 256Mbits
-Threshold: 0-5V ( 0.1V step)
-Input voltage: -30V~+30V
-Input impedance: 250K//~13pF
-State sampling: max. 50MHz
-Operation System Supported: Win, Mac OS, Linux
-Size: 3.1 * 2.9 * 0.4 in
PACKAGE
-1 x Logic Analyzer
-4 x Group of Shielded Wires
-1 x USB 2.0 Cable
-16 x Test Hook
-1 x English Manual
